Waterproof Touch Keyboard

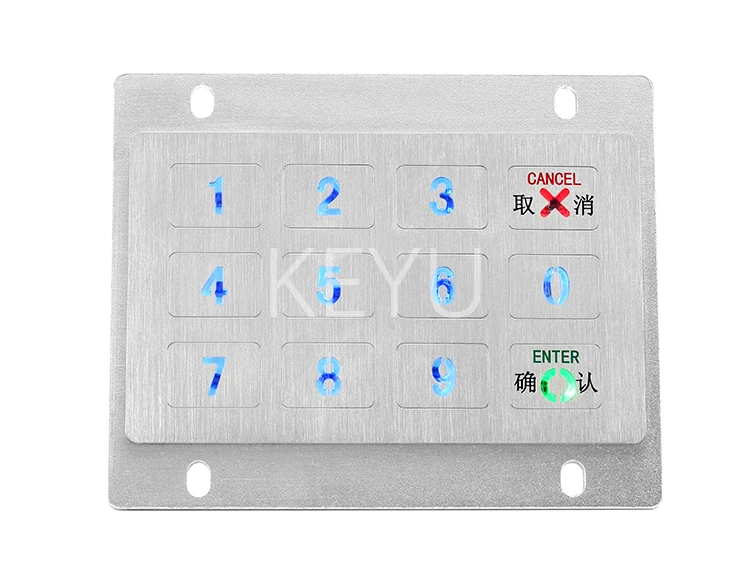

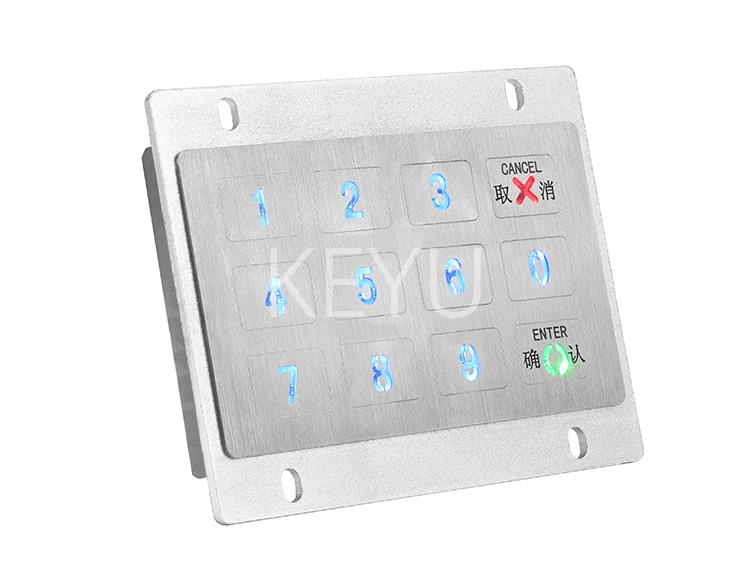

KY-2120GK Waterproof Touch Keyboard
KY-2120GK is a waterproof touch keyboard with a 120*74 mm front panel on a 126*104 mm body, supplied for desktop mounting.
Product Overview
KY-2120GK is a waterproof touch keyboard with a 120*74 mm front panel on a 126*104 mm body, supplied for desktop mounting. The touch surface has no moving key gaps, which is why it is specified as water proof, explosion-proof and dust proof. It suits kiosk and forecourt operators who want an entry surface that can simply be wiped down.
- Flat touch surface with no key gaps to trap grit or liquid
- 10Million actuation durability with no mechanical key travel to wear
- 120*74 mm panel fits the same band as the KY2120 series
- Working current below 100mA at DC5V±5%
- 12 or 16 key layouts with other counts customised
Application Scenarios
- Kiosk solutions requiring frequent surface cleaning
- Petrol station payment points
- Ticket vending machines
- Parking venue terminals
- Public service counters exposed to spills
Who It Is For
- Kiosk integrators specifying touch entry
- Fuel and parking terminal manufacturers
- Operators of terminals in wet or dusty public areas
Problems It Solves
- Grit lodging between mechanical keys on outdoor terminals
- Cleaning routines that cannot reach under key caps
- Mechanical key wear at high daily transaction counts
Technical Features
- Waterproof touch keyboard described as water proof, explosion-proof and dust proof
- Layout customisable with 12 or 16 keys
- USB, PS/2 and RS232 interfaces
- Power supply DC5V±5% with working current below 100mA
- Durability of 10Million
- Desktop mounting
Specifications
| Front Panel | 120*74 mm |
|---|---|
| Overall Dimension | 126*104 mm |
| Power Supply | DC5V±5% |
| Working Current | <100mA |
| Durability | ≥10Million |
| Interface | USB, PS/2, RS232 |
| Mounting Way | Desktop |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
Materials
- Metal panel with sealed touch surface
Manufacturing Process
- Panel forming to the 126*104 mm outline
- Touch sensor layer lamination behind the 120*74 mm face
- Legend marking on the touch surface
- Edge sealing and desktop base assembly
- Sensitivity calibration and test
Quality Control
- Touch response check on every key zone
- Water exposure test of the sealed face
- Endurance sampling to the 10Million rating
- Current verified below 100mA
Customisation Options
- Touch zone layout with 12, 16 or other key counts
- Legend artwork and language
- USB, PS/2 or RS232 cable
- Desktop base finish and marking
How It Compares
| KY2120-LED mechanical keypad | The touch face has no key gaps, so cleaning is a single wipe across the panel |
|---|---|
| KY-3088GK | The 120*74 mm landscape face suits wide fascias rather than the near square 87.4*91.4 mm field |
Use Guide
- Place on a flat counter as the unit is supplied for desktop mounting
- Agree the touch zone layout before production
- Supply DC5V±5% with under 100mA available
- Wipe the surface clean and avoid abrasive pads on the printed zones
Questions About This Model
Does it have moving keys?
No. It is a waterproof touch keyboard with a flat sensing surface.
How is it mounted?
The mounting way is listed as desktop.
What durability is quoted?
10Million actuations.
Can the number of touch keys change?
12 and 16 key layouts are listed and other counts can be customised.
Which systems are supported?
Windows XP, Windows 7, Windows 10, Linux, Ubuntu and Android.
Request A Quote On KY-2120GK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
