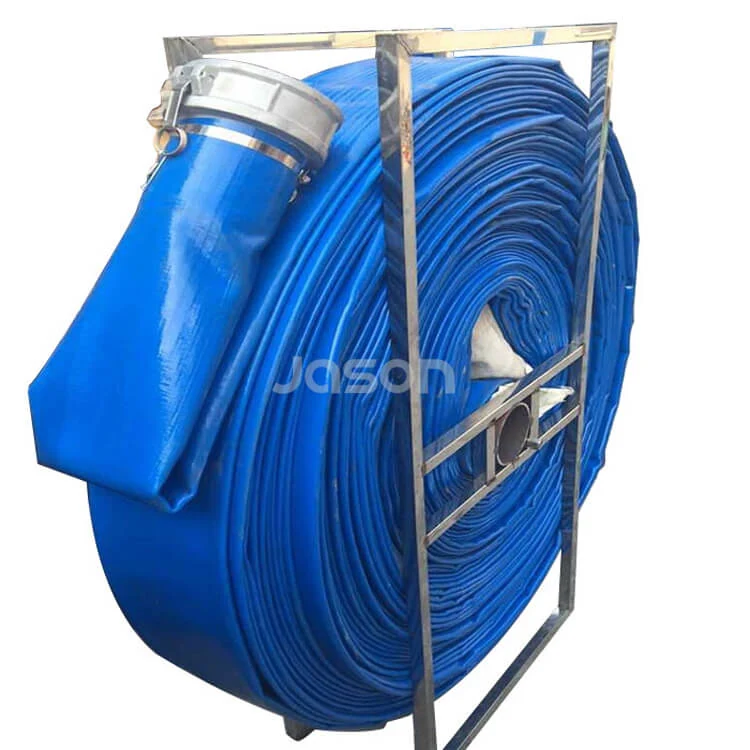

12 Inch Discharge Hose
The 12 inch discharge hose is a DN300 PVC coated layflat hose for transferring high volumes of water quickly.
View specifications
PVC Layflat Hose
16 Inch Discharge Hose
The 16 inch discharge hose is a DN400 PVC layflat hose for moving very large volumes of water in agriculture, construction, civil engineering and emergency work.
Product Overview
What This Hose Is Built To Do
The 16 inch discharge hose is a DN400 PVC layflat hose for moving very large volumes of water in agriculture, construction, civil engineering and emergency work. High tenacity synthetic yarn is encapsulated between PVC cover and liner, so a bore this size still rolls flat for transport. Lengths are 20 m (66 ft) and 50 m (164 ft), in blue, red, black or orange, rated -20°C to 70°C.
Key Benefits
- DN400 bore moves bulk water without the cost and time of laying rigid pipe
- Rolls flat, so a 50 m length ships and stores in a fraction of its working volume
- Four standard colours allow duty and contractor identification across a large site
- Lower cost per metre than TPU at the same bore where abrasion is moderate
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality PVC |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Blue, red, black, orange or as required |
| Size | 16 inch(DN400) |
| Length | 20m (66ft), 50m (164ft) or as required |
| Temperature | -20°C(-4°F)-70°C(158 °F) |
Problems It Solves
Why Buyers Move To This Product
- Bulk water transfer jobs where the haulage cost of rigid pipe exceeds the pumping cost
- Emergency drainage with no time to assemble a pipeline
- Storage yards filling up with large diameter pipe held on standby
Who It Is For
- Civil engineering contractors on large drainage schemes
- Irrigation districts moving canal water
- Emergency and flood response organisations
- Pump hire companies stocking large bore discharge line

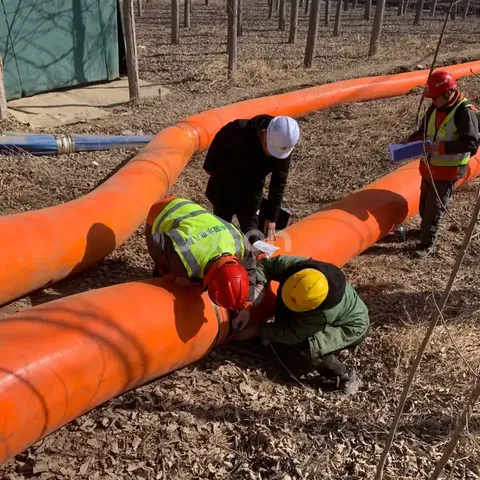

Photographs
The Product as It Ships
Technical Features
- Light weight
- Cost-saving
- Easy to storage or transport
- Abrasion resistance
- Excellent flow rates
Application Scenarios
- Large volume of water discharge and supply in agricultural
- Construction
- Civil engineering and emergency
Manufacturing and Quality
How It Is Made and Checked
Production Process of PVC Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Roll out the full length before charging so the hose does not snake
- Use ramps wherever the line crosses vehicle traffic
- Keep the hose off sharp aggregate, which is what usually damages a PVC cover
- Drain and dry before rolling for storage
- Store rolls upright on a rack rather than stacked flat
Comparison
How It Compares With Our Other Products
| 16 Inch Layflat Hose | The TPU version takes higher pressure and far longer 200 m lengths, where this PVC hose is the lower cost option for moderate duty |
|---|---|
| 12 Inch Discharge Hose | Same construction one size down, lighter to handle and lower flow |
Related Products
Other Products in the PVC Layflat Hose Range

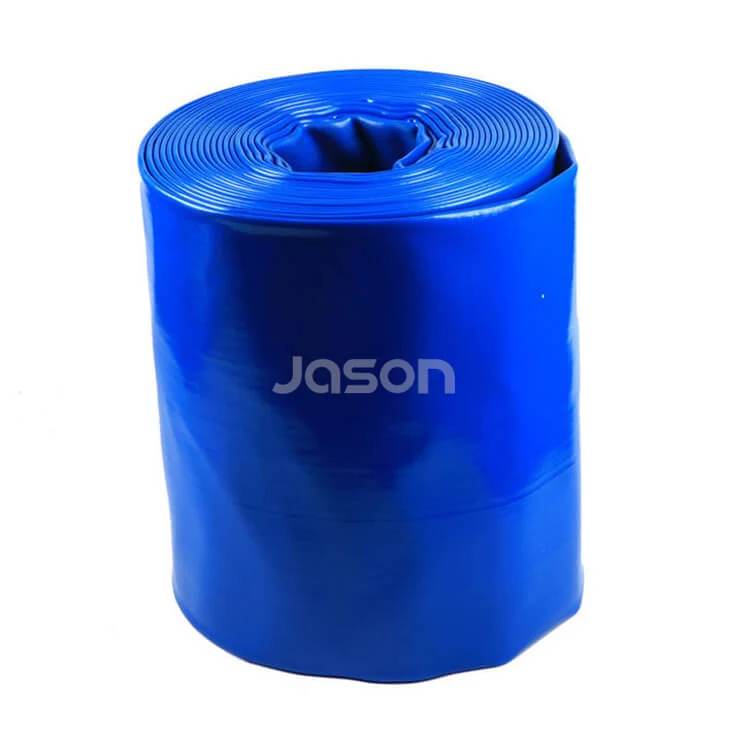

10 Inch Discharge Hose
The 10 inch discharge hose is a heavy duty DN250 PVC layflat hose for transferring large volumes of water on industrial, construction and agricultural sites.
View specifications

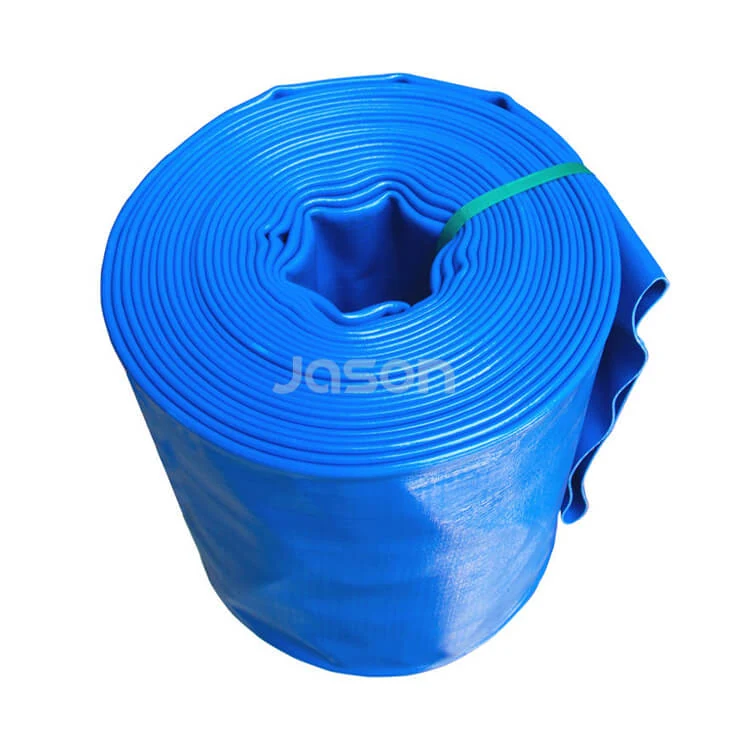

8 Inch Discharge hose
The 8 inch discharge hose is a DN200 PVC layflat hose used to transfer large volumes of water and other liquids on industrial sites, construction sites and farms.
View specifications

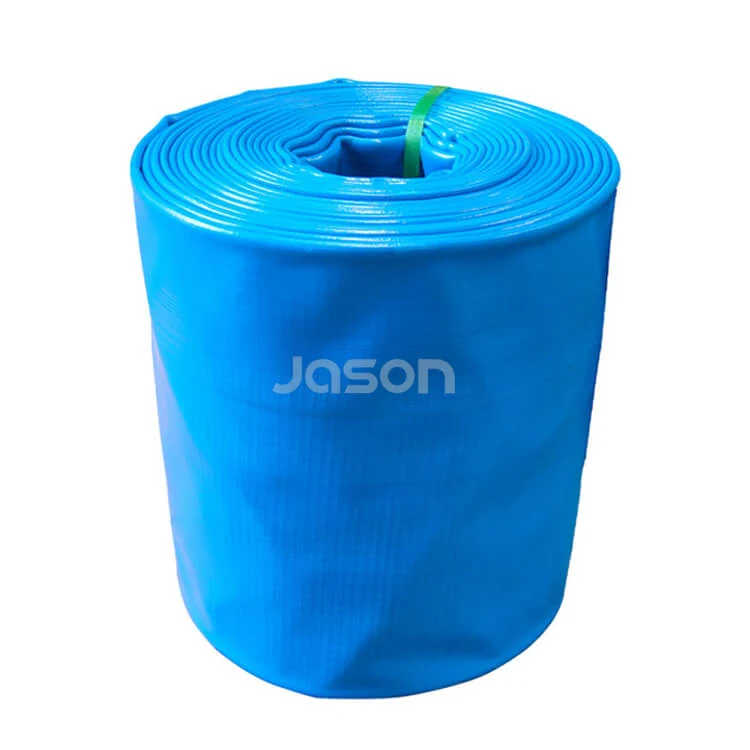

Layflat Discharge Hose
Layflat discharge hose is our general purpose PVC delivery hose, made from 6 inch to 20 inch for water discharge and supply in agriculture, construction and civil engineering.
View specificationsFAQ
Questions About the 16 Inch Discharge Hose
What is the bore in metric
DN400.
Which lengths do you supply
20 m (66 ft) and 50 m (164 ft), or as required.
What is the temperature range
-20°C (-4°F) to 70°C (158°F).
Do you also make a TPU version in 16 inch
Yes. The 16 inch layflat hose is the TPU version for higher pressure and longer runs.
Which colours are standard
Blue, red, black and orange, with other colours to order.
Is the hose tested before shipment
Yes. Layflat hose is tested at 1.5 times working pressure for 2 hours before packing.
Request a Quote on the 16 Inch Discharge Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
