4.3 Inch Foldable Monitor
Dash Monitor That Folds Flat When It Is Not in Use
- Folds away so the dash stays clear between manoeuvres
- Small base footprint on a crowded dash top
- Screen is out of the driver's eye line on a long run
Product Overview
4.3 Inch Foldable Monitor at a Glance
A 4.3 inch monitor built into a base that lets the screen fold flat when it is not needed. On many installations the screen powers up and lifts when reverse is selected, which keeps the dash clear the rest of the time.
It is the answer for cabs with almost no free dash area and for drivers who do not want a screen in their eye line on a long run.
Key Benefits
Why Buyers Specify This Model
Folds away so the dash stays clear between manoeuvres
Small base footprint on a crowded dash top
Screen is out of the driver's eye line on a long run
Matched to our camera range on connector and signal format
Application and Fit
Where It Is Used and Who It Is For
Application Scenarios
- Passenger cars
- Vans
- Light trucks
- Camper vans
Who It Is For
- Installers
- Accessory retailers
- Fleet workshops
- Distributors
Problems It Solves
- No free dash space
- Screens in the eye line on the motorway
- Untidy permanent installations
- Camera and monitor bought separately and mismatched
Technical Features
Technical Features
- Mounting hardware supplied so the screen can be fitted on the day
- Matched to our camera range on connector and signal format
- Sun shade or mirror body to keep the image readable in daylight
- Screen format chosen for the cab, not a single universal size
- Labelling and packaging available under your own brand
Specifications
Configuration and Specification Sheet
| Screen size | 4.3 inch |
|---|---|
| Format | Folding screen on a fixed base |
| Placement | Dash top |
| Position | Folds flat when not in use |
Full electrical specification is issued per order. Sensor, resolution, lens angle, supply voltage, cable length and connector on this model are confirmed against your vehicle and your head end before production, because they are the parameters most often changed on an OEM order. Ask for the specification sheet and we will send it with the quotation.
Materials
Materials and Construction
Monitor housings are moulded, with TFT display panels and moulded sun shades or mirror bodies depending on the format. Stands are supplied with the mounting hardware. Exact panel and housing specification for a given model is confirmed before an order is placed.
Manufacturing Process
How It Is Made
Manufactured at our Guangzhou facility. Specification is fixed first, a physical sample is built and approved, components are sourced against the approved sample, the unit is assembled and sealed, then function checked and packed. Production is carried out strictly in accordance with the ISO9001 standard.
Quality Control
Quality Control Steps
- Incoming component check against the approved sample specification
- Assembly with gasket compression and cable gland made off on sealed housings
- Power up and image output check on every unit
- Infrared or assist lamp function check where the model has them
- Final visual and packaging check before carton packing
Certifications
Certifications Held on the Range
- ISO9001
- IP68
- CE
- FCC
- RoHS
- E-mark
Certificates apply to specific models and test reports. Ask for the certificate covering the exact model you are ordering rather than a general company document.
Customization
Customization Options
- Housing colour and surface finish
- Cable length made to the routed distance on your vehicle
- Connector type, 4 pin aviation or RCA, or to your drawing
- Label and silkscreen artwork under your own brand
- Retail box, inner packing and printed manual
- Carton marking and quantity per carton
Comparison
Compared With Other Products in the Range
| 4.3 Inch Foldable Monitor | 4.3 Inch Stand Alone Monitor | 7 Inch Mirror Monitor | |
|---|---|---|---|
| Range | Vehicle Monitors | Vehicle Monitors | Vehicle Monitors |
| Built for | Dash Monitor That Folds Flat When It Is Not in Use | Compact Pedestal Monitor for a Fixed Dash Position | Clip on Mirror Screen That Uses No Dash Space |
| Primary application | Passenger cars | Vans | Passenger cars |
| Main advantage | Folds away so the dash stays clear between manoeuvres | No moving screen mechanism to wear out | Uses no dash space at all |
If you are unsure which of these fits your vehicle, send a photo of the mounting position and we will tell you which one to order.
Use Guide
Installation and Use Guide
A short fitting sequence. The full installation guide is available in the Download Center.
- 01
Confirm the Mounting Position
Hold the 4.3 inch foldable monitor where it will be fitted and confirm the view or the screen position works before anything is drilled or fixed.
- 02
Check the Cable Reaches
Route the full cable from the unit to the head end and confirm it reaches with slack to spare, away from exhaust heat and moving parts.
- 03
Fix the Unit
Fit the bracket, collar or stand and seal any panel entry point. Leave a drip loop below an exterior entry so water runs away from the hole.
- 04
Connect Power and Video
Make the video and power connections in dry positions, supported so no joint carries the weight of the loom.
- 05
Set and Test
Power up, set the angle or the screen position from the driver's seat, and test again after dark and with the vehicle wet.
Applications
Industries This Product Serves
Knowledge
Related Guides
Downloads
Documents for This Product
Explore
Related Products

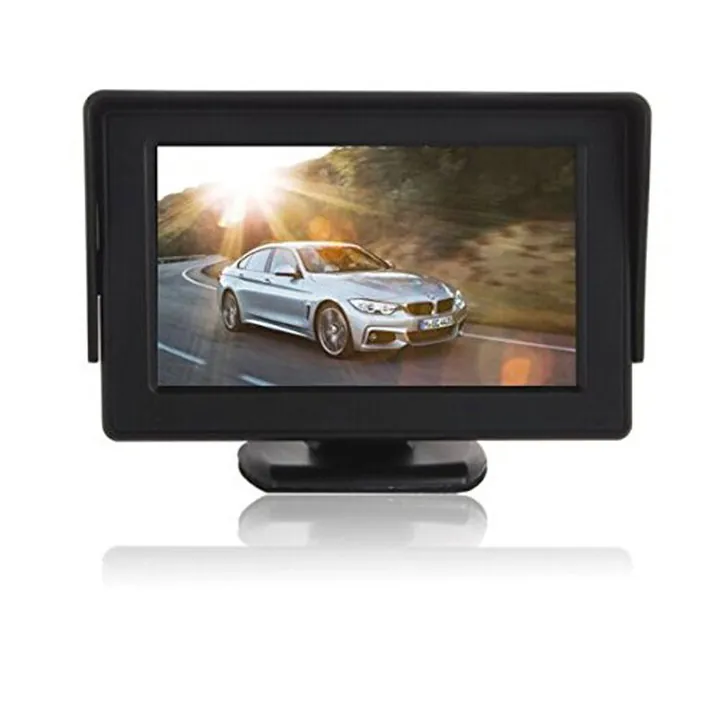

Vehicle Monitors4.3 Inch Stand Alone MonitorCompact Pedestal Monitor for a Fixed Dash Position
View Product
Vehicle Monitors7 Inch Mirror MonitorClip on Mirror Screen That Uses No Dash Space
View Product
Vehicle CamerasCar Backup CameraFlush Barrel Camera for a Clean Bumper Installation
View Product
Vehicle CamerasMini Backup CameraCompact Bracket Camera With Four Assist Lamps
View ProductFAQ
4.3 Inch Foldable Monitor FAQ
What is the MOQ on the 4.3 Inch Foldable Monitor?
MOQ varies by model and by how much customisation the order carries. Send your quantity and destination market and we will confirm the MOQ in writing with the quotation.
Can this product be supplied under our own brand?
Yes. OEM and ODM service covers housing colour, cable and connector specification, label artwork, printed manual and retail packaging.
Which certificates cover this product?
Our product range holds IP68, CE, FCC, RoHS and E-mark certificates, and production is carried out strictly in accordance with the ISO9001 standard. Ask for the certificate covering this exact model before shipping.
How is it packed and shipped?
Carton packing, with retail boxes and inner packing where the order calls for them. Shipment by express, air, land or sea, with sea shipments loading at Shenzhen or Guangzhou.
Can I get a sample before placing a production order?
Yes. Samples are dispatched for physical approval before production. Ask for a sample through WhatsApp or email and we will confirm the cost and the lead time.
Do you have a CAD file or drawing available?
CAD files are not published for download. Request a CAD file or a dimensioned drawing through WhatsApp or email and we will send it directly once the application is confirmed.
Next Step
Get a Quotation on the 4.3 Inch Foldable Monitor
Send your quantity, destination market and any customisation you need. We will come back with price, MOQ and lead time.
