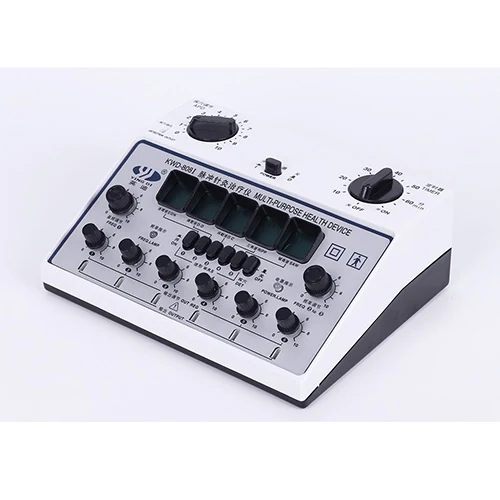

Yingdi KWD-808I Electronic Acupuncture Stimulator
The Yingdi KWD-808I is an electronic acupuncture stimulator designed for electro-needle therapy, acupoint detection, TENS massage, and magneto-therapy across clinical environments.
Product Overview
What the Yingdi KWD-808I Is Built To Do
The Yingdi KWD-808I is an electronic acupuncture stimulator designed for electro-needle therapy, acupoint detection, TENS massage, and magneto-therapy across clinical environments. Built for TCM hospitals, clinics, and acupuncture wards, it features six independent therapy outputs alongside two dedicated acupoint detection jacks on a single compact chassis. A built-in timer, five selectable illuminated wave forms, and dual-power operation using an AC adapter or six C-size batteries allow practitioners to deliver targeted electrical stimulation to multiple needle sites or adhesive pads without manual intervention.
At A Glance
Key Benefits
Why Buyers Specify the Yingdi KWD-808I
- Six treatment outputs allow practitioners to stimulate multiple acupuncture points or several treatment zones in a single session
- Two dedicated acupoint detection jacks with an adjustable sensitivity probe pen assist in pinpointing treatment locations accurately
- Five selectable wave patterns provide clinical flexibility across continuous, intermittent, ripple, and respiration pulse modes
- Dual-power support runs on AC 110 V or six C-size batteries for steady benchtop or mobile clinic use
- Illuminated waveform graphics and independent indicator lights for power and frequency show operational status clearly at a glance
- Audible error tone protection alerts clinical staff immediately when improper operation or incorrect circuit settings occur
Problems It Solves
- Manual needle manipulation requires continuous practitioner presence and causes inconsistent mechanical stimulation over lengthy sessions
- Locating difficult acupoints manually relies purely on tactile feedback without electronic confirmation of skin conductivity
- Single-output therapy devices restrict treatment to one point pair and slow down clinic patient turnover
- Inability to switch wave patterns limits clinical options when managing varied muscle spasm and pain conditions
- Equipment without operating error warnings risks accidental output spikes or incorrect lead wire connections during therapy
- Fixed-mains medical devices cannot be deployed in treatment areas lacking convenient electrical wall outlets
Where It Is Used
Where the Yingdi KWD-808I Is Used
Application Scenarios
Who It Is For
Technical Features
Inside the Yingdi KWD-808I
- Six therapy output channels fitted with rectangular female jack connections for alligator clips or electrode pads
- Two separate acupoint detection outputs compatible with an adjustable sensitivity metal locator pen
- Five selectable waveform modes including continuous wave, intermittent wave, ripple wave, and respiration wave
- Illuminating graphic indicators that clearly display whichever of the five wave selections is currently active
- Dual independent indicator lights providing real-time feedback for circuit frequency and operational power status
- Integrated rotary controls for smooth calibration of pulse frequency, output intensity, and locator sensitivity
- Built-in mechanical timer allowing practitioners to configure set therapy runtimes up to treatment completion
- Safety protection circuitry with an audible melody error tone signaling improper connection or setting faults
- Dual supply architecture supporting AC 110 V mains or DC 9 V via six C-size internal batteries
Materials and Build
Specifications
Yingdi KWD-808I Electronic Acupuncture Stimulator Technical Data
Figures below are taken from the manufacturer data sheet for this model. Tell us your local voltage and dosing practice and we will confirm the build before the order.
| Model | KDW-808I (KWD-808I) |
|---|---|
| Brand | Huayan Medical |
| Supply voltage | AC 110 V or DC 9 V |
| Battery specification | 6 C-size batteries (1.5 V x 6 CR14 / UM2) |
| Input power | <= 4 VA |
| Maximum power consumption | < 5 W |
| Output channels | 6 channels |
| Acupoint detection outputs | 2 outputs |
| Waveforms | 5 kinds (Continuous, Intermittent, Ripple, Respiration) |
| Dimensions | 222 mm x 172 mm x 75 mm |
| Plug type | Rectangular female |
| Available chassis colors | Grey, Black |
| Included lead wires | 6 alligator clip output wires and 2 pad lead wires |
| Included accessories | 4 adhesive electropads, 1 detection pen |
| Safety alert | Error tone sounds on incorrect operation |
How It Is Made and Checked
How the Yingdi KWD-808I Is Built and Checked
How This Model Is Built and Tested
- Insert six C-size batteries into the rear compartment or connect the designated AC power adapter
- Connect the acupoint detection pen to locate target treatment points by scanning skin resistance
- Attach alligator clip lead wires to placed acupuncture needles or connect adhesive electrode pads to skin
- Plug output cables into the six rectangular female jacks across the lower instrument panel
- Select the required pulse wave pattern and verify illumination of the corresponding graphic symbol
- Set the built-in treatment timer to the specified session duration
- Gradually increase output intensity and frequency using the rotary dials to the appropriate patient level
- Return all intensity dials to zero and disconnect leads once the built-in timer completes
Quality Control
- Manufactured under an ISO 9001 and ISO 13485 medical device quality management system
- CE certified to meet European technical standards for medical electrical equipment distribution
- Output channels undergo functional signal verification across all five selectable waveform modes
- Built-in protection circuitry tested to verify that the audible error tone triggers on incorrect operation
- Each complete set verified with all six alligator leads, detection pen, and electrode pads prior to packaging
Certification Held By The Plant
ISO 9001ISO 13485CE markingTested as a complete cycle before packing
Customization
Building the Yingdi KWD-808I To Your Practice
- Enclosure housing available in grey or black factory colour options upon order placement
- English language documentation and instruction manuals supplied for overseas clinical operators
- Supplied with standard AC adapter or configured for regional voltage specifications on request
- Replacement packs of adhesive electropads and alligator clip output wires available as consumable reorders
Use Guide
Comparison
How the Yingdi KWD-808I Compares
An honest read on where this model wins and where another one suits you better.
vs Handheld two-channel TENS units
Handheld units are smaller but lack needle alligator leads, point detection jacks, and six concurrent output channels
vs Manual manual needle manipulation
Manual needle manipulation requires continuous practitioner labour, whereas the KWD-808I delivers consistent automated waveforms across six channels
vs Mains-only stimulator systems
Mains-only devices tether the workstation to wall sockets, while the KWD-808I operates on either AC power or six C-size batteries
Who Buys This
Industries Using the Yingdi KWD-808I
TCM Clinics and Acupuncture Practices
Clinic owners with one dispensary corner and one member of staff, who still want patients leaving with pouches.
Rehabilitation and Physiotherapy Centres
Rehabilitation departments adding fumigation, moxibustion, shock wave and wax therapy to existing treatment rooms.
Distributors and Importers of TCM Equipment
Importers and agents who need a full range, English documentation and parts support so they can service what they sell.
Questions Buyers Ask
Yingdi KWD-808I Questions and Answers
What is the lead time after placing an order?
Lead time is generally about 6 days after payment is received, depending on the specific order quantity.
What power source does this stimulator require?
The device operates on an AC 110 V adapter or six C-size DC 9 V batteries, consuming less than 5 W.
What accessories are included in the package?
Each unit includes 6 alligator clip output wires, 2 pad lead wires, 4 adhesive electropads, and 1 detection pen.
What quality certifications apply to this equipment?
Tianjin Huayan Medical Equipment Co., Ltd. operates under ISO 9001 and ISO 13485, and products carry CE certification.
What is the warranty policy and part replacement process?
We provide a one-year free warranty from qualified commissioning. Defective components are replaced free of charge during this period.
What payment terms do you accept?
Payment is made via T/T bank transfer, and quotation responses are returned within 12 hours of enquiry.
What training or support is available if we encounter operational issues?
We provide free video guidance for installation and fault diagnosis, along with remote technical consultation for clinical operators.
