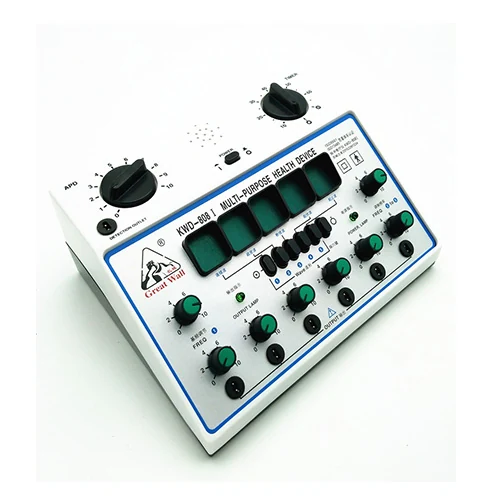

GreatWall KWD-808I Electronic Acupuncture Stimulator
The GreatWall KWD-808I is a microcomputer electronic acupuncture stimulator designed for acupoint detection, electro-needle therapy, TENS massage, and magneto-therapy in clinical...
What the GreatWall KWD-808I Is Built To Do
The GreatWall KWD-808I is a microcomputer electronic acupuncture stimulator designed for acupoint detection, electro-needle therapy, TENS massage, and magneto-therapy in clinical treatment rooms. Equipped with 6 output channels and 2 detection jacks, the unit delivers 5 selectable waveforms with illuminated indicators and operates on either AC 110V or 6 C-size batteries. A built-in voltmeter, music timing switch, and error warning tone allow clinical staff to administer multi-point needle stimulation and pulse electric therapy with controlled output.
Why Buyers Specify the GreatWall KWD-808I
- Six output channels allow multi-point electro-needle therapy or surface stimulation across several anatomical zones at once
- Two dedicated detection jacks work with the detection pen to locate electrical acupoints before starting stimulation
- Five selectable waveforms provide continuous, intermittent, ripple, respiration, and auto-cycling pulse currents for varied clinical protocols
- Dual power architecture runs on 110V AC or six C-size batteries for portable use between ward beds
- Audio error tone and built-in music timing switches alert practitioners to operational faults or elapsed session times
- Low power consumption under 5W keeps operating costs low and preserves battery life during mobile treatments
- Manual needle twirling is labour-intensive and produces inconsistent stimulation frequency over long treatment sessions
- Separate detection devices and stimulators crowd clinic cart surfaces and require dual maintenance
- Single-output or dual-output stimulators require multiple machines to treat complex multi-point prescription plans
- Absence of operational error warnings can leave lead disconnections or circuit errors unnoticed during unattended sessions
- Mains-only devices cannot be moved easily between clinic treatment cubicles or mobile care settings
Where the GreatWall KWD-808I Is Used
Inside the GreatWall KWD-808I
- Microcomputer-controlled pulse electric output across 6 independent channel jacks
- Two dedicated acupoint detection output circuits linked to a handheld detection pen
- Five distinct pulse waveforms including continuous wave, intermittent wave, ripple wave, respiration wave, and auto-cycling output
- Illuminated panel symbols displaying the active waveform selection during operation
- Integrated treatment timer with music sound alerts and onboard voltmeter readout
- Dual-source power system supporting 110V AC line power or 9V DC battery power
- Standard rectangular female connector ports with locking stability for treatment leads
- Audible error tone alerting staff when improper circuit or operating conditions occur
GreatWall KWD-808I Electronic Acupuncture Stimulator Technical Data
Figures below are taken from the manufacturer data sheet for this model. Tell us your local voltage and dosing practice and we will confirm the build before the order.
| Model | KDW-808I (KWD-808I) |
|---|---|
| Brand | Huayan Medical |
| Output channels | 6 |
| Acupoint detection outputs | 2 |
| Wave forms | 5 types (Continuous, Intermittent, Ripple, Respiration, Auto-cycle) |
| Supply voltage | AC 110 V, DC 9 V |
| Battery requirement | 6 C-size batteries (1.5 V x 6 / CR14 / UM2) |
| Input power | <= 4 VA |
| Maximum power consumption | < 5 W |
| Dimensions | 222 mm x 172 mm x 75 mm |
| Plug type | Rectangular female |
| Error tone | Tone (song) sounds on error |
| Available housing colours | Grey, black |
How the GreatWall KWD-808I Is Built and Checked
- Connect the unit to a 110V AC supply or install six C-size batteries into the rear compartment
- Plug the detection pen into a detection jack to locate target acupoints along the meridian
- Insert rectangular female lead plugs into the required output channels among the six available
- Attach alligator clips to inserted acupuncture needles or affix electropads to target muscle areas
- Select the required waveform from the five options and observe the lit indicator symbol
- Set treatment duration with the music timing switch and gradually increase channel intensity
- Conclude the session when the music timer sounds, turn intensity dials to zero, and disconnect leads
- Channel output voltages and waveform consistency verified prior to factory packaging
- Audible error tone and music timing switches tested under simulated open-circuit conditions
- Battery compartment and AC power input circuits checked for stable DC conversion
- Manufacturing facility operates under ISO 9001 and ISO 13485 medical device quality systems
- CE certified for compliance with relevant international medical equipment directives
Building the GreatWall KWD-808I To Your Practice
- Grey or black outer casing options selected at time of procurement
- Power input configured for AC 110V adapter or battery-powered standalone use
- Compatible with direct replacement accessories including extra electropads, lead wires, and alligator clips
How the GreatWall KWD-808I Compares
An honest read on where this model wins and where another one suits you better.
Industries Using the GreatWall KWD-808I
TCM Clinics and Acupuncture Practices
Clinic owners with one dispensary corner and one member of staff, who still want patients leaving with pouches.
Rehabilitation and Physiotherapy Centres
Rehabilitation departments adding fumigation, moxibustion, shock wave and wax therapy to existing treatment rooms.
Distributors and Importers of TCM Equipment
Importers and agents who need a full range, English documentation and parts support so they can service what they sell.
GreatWall KWD-808I Questions and Answers
How many outputs does the KWD-808I provide for simultaneous treatment?
What power supplies can be used to run the stimulator?
What accessories are included with the unit?
What is the typical production and delivery lead time?
What happens if an operational fault or connection error occurs?
What warranty terms apply to this equipment?
