LED Control System

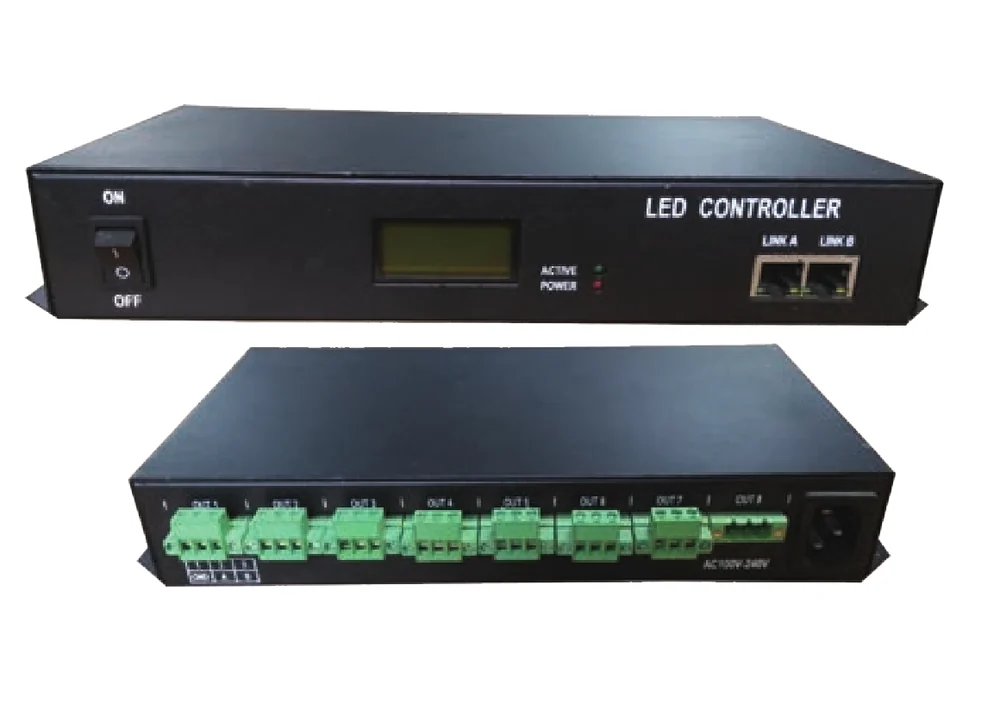

LED Slave Controller For Large Projects
Series FL-CS218DW
Eight port sub controller with DMX512 auto addressing and dual way backup
8 outputPorts
512 channelsPer port
Up to 120 fpsFrame rate
1000M / 100MNetwork
Have a drawing? Send the DXF or PDF over WhatsApp or email and our engineers will mark the fixture positions. CAD files are supplied on request via WhatsApp.
Product Overview
What This Fixture Is
led slave controller
Key Benefits
- Dual way backup keeps the display running if a controller or cable fails
- Independent three primary colour control gives accurate white balance
- Offline scheduled playback with no permanent PC on site
- Mixed lamp types and protocols supported on one system
System Characteristics
- Controller’s output support standFL USITT DMX512/1990 Universal Protocol and expand DMX512 Protocol.
- Controller signal output ADRI/PO terminal can achieve DMX512 channel automatic addressing，Support DMX512AP-N / NB, UCS512, MY7221, WS2821 and other driver chips；
- FL-CS218DW Controller addressing signal output compatible differential signals output，Improve the addressing signal transmission distance， in favor of the project application for long distance transmission and effective addressing；
- Three-primary-color independent brightness control, which realize simple, effective and accurate adjustment of white balance.
- Precise gamma correction algorithm. It better conforms to the visual photographic characteristics of the human body, and the display color is more sufficient and rich, so as to perfectly reflect the animation or video effects of the designer.
- Support 120-frame frequency maximum, to guarantee demands for HD display and 3D display of the image;
- Adopt Ethernet interface and UDP network protocol, to guarantee stable transmission, the maximum transmission distance is 100m.
- LCD display module, to timely display the controller parameters and state.
- Dual-network interface, which can realize cascade connection between controllers and automatic inspection of the controller, and the connection status is displayed intuitively through the software.
- 8-port output, single port output is standFL 512-channel, expand protocol load points by client basis chip characteristics self-testing.
- Support dual-way backup, the display will not be influenced if a controller is broken or the network cable is disconnected.
- Can set self-adapting 1000M / 100M or forced 100M, to guarantee stability of large project.
Design Concept
- 1000Mbps/ 100Mbps optional: adapt to different project schemes；
- Two-way redundancy of the system signal, doubled stability；
- Four-color independent algorithm: energy-saving, environmental-friendly and with pure color；
- Integrated synchronous and asynchronous control, online in priority, automatic switching to the offline effect without online signal, to realize video source backup；
- Large independent development and design video edition, playing and wiring design software, stronger adaptability, more languages supporting and higher openness；
- It is used in various shaped screens, multiple screens, building screen, pixel light screen and other complicated applications at home and abroad；
- Support IP group function, and adopt switch parallel connection scheme: reduce system-level cascade chain length, and improve stability；
- Add fiber optic conversion module located, Control system supports fiber-optic signal transmission；
- Support wireless network transmission, wireless bridge connection and Internet remote control；
- With the Internet control software,Support Internet remote control；
- The system supports automatic, timed and holiday preset playing；
- Support mainstream 32-bit and 64-bit operating systems: windows 2000, windows XP, windows 7, windows 8 and so on；
- 、Expansibility
- Synchronous and asynchronous play of contents of video and image files of multiple formats；
- Can install all Windows operating systems and support languages of various countries；
- The player software is reserved with sufficient interfaces, so as to be compatible with other international general protocols, and support the personalized design demands of the customers；
- Online mode (connected with the computer )
- FL-CS218DW Controller connect with the computer Ethernet port，as shown below：
- Computer （PC） FL-CS218DW-1 FL-CS218DW-2 FL-CS218DW-X
- 、Offline mode
- FL-CS218DW connect with the offline master controller，as shown below：
- FL-BF02B
- FL-CS218DW-1 FL-CS218DW-2 FL-CS218DW-X
Who It Is For
- System integrators running facade screens of tens of thousands of pixels
- Contractors who need offline scheduled playback without a permanent PC
- Projects mixing different lamp types and protocols on one system
- Owners who want remote control of a night view scene over the internet
Problems It Solves
- Dual way backup so the display keeps running if a controller fails or a cable breaks
- Three primary colour independent brightness control and precise gamma correction
- Ethernet and UDP transport up to 100 m, plus fibre and wireless bridge options
- Support for mixed lamp types and protocols including DMX512 fixtures
Application Scenarios
- Building media facades
- Pixel light screens
- Bridge animation lighting
- Shaped and multi screen installations
Specifications
Technical Parameters
| Ports | 8 output |
|---|---|
| Per port | 512 channels |
| Frame rate | Up to 120 fps |
| Network | 1000M / 100M |
Full parameter sheet for this model is supplied on request. Message us on WhatsApp and we will send the datasheet as a PDF.
Materials
| Enclosure | Metal controller housing |
|---|---|
| Display | LCD module showing parameters and status |
| Storage | SD card up to 32G on the master controller |
| Network | Ethernet with UDP protocol |
| Cabling | CAT5 twisted pair between controllers |
Manufacturing Process
- PCB assembly of the controller board
- Firmware loading and port testing
- Enclosure assembly and labelling
- Cascade test across multiple controllers
- Load test with the lamp types used on the project
Details And Drawings
Dimensions Wiring And Application Views
Comparison
How This Model Compares Inside The Range
| Model | Best For | Control | Key Difference |
|---|---|---|---|
| LED Master Controller For Facade Lighting | Building media facades | DMX512 / TTL | Offline master controller supporting 150,000 points with SD card program storage |
| LED Slave Controller For Large Projects (this model) | Building media facades | 1000M / 100M | Eight port sub controller with DMX512 auto addressing and dual way backup |
Comparison values are taken from the published parameters of each model. Ask an engineer if you need a side by side photometric comparison for a specific mounting height.
Use Guide
Installing And Commissioning
Connect the master controller to the sub controllers with CAT5, keep each section under the stated distance, then assign ports and addresses. Store the programme on the SD card so the system plays offline on schedule.
- Confirm the layout. Mark fixture positions on the elevation and check point spacing against viewing distance.
- Fix the mounting. Use the supplied bracket, profile or steel wire fixing and leave a service loop at each connector.
- Power and address. Inject power at the recommended interval, then address the line from the sub controller.
- Commission. Load a test pattern, correct white balance and store the show programme on the master controller.
Quality Control
How We Keep The Defect Rate Below 0.2 Percent
- LED chips selected from CREE, OSRAM, Epistar and other high quality suppliers
- Full colour lamps built with high grey level and high refresh rate driver ICs
- High power lamps supplied with professional lens light distribution
- Products produced under a strict quality control system, defective rate below 0.2 percent
- 2 to 5 year warranty, with replacements shipped alongside your next order
Related Products
Other Models Worth Comparing
Control System
LED Master Controller For Facade Lighting
Offline master controller supporting 150,000 points with SD card program storage
Pixel Light
High Power LED Dot Light 3W
Plastic shell plus independent aluminium heat sink at half the weight of die cast aluminium
Pixel Light
V020 LED DMX Pixel Light
Three, four or six LED pixel with 4096 to 65536 grayscale for facade media screens
Pixel Light
D40 RGB LED Point Light
Dual channel real time backup plus standard DMX512 in a 40 mm point bodyCases
Cases Using This Range
Real installations photographed on site: facades, bridges, mesh screens, parks and waterfronts.
Architectural
Art Gallery Facade
A curved gallery envelope covered with round full colour pixel points that follow the shell geometry.
Media Facade
Media Facade Lighting
Twin residential towers running synchronised full colour content across both elevations.
Bridge
Bridge Night View
Arch spans outlined with colour changing lines running a slow programmed sequence over the river.
Architectural
Synchronised Linear Light Project
Vertical linear runs on two towers driven from one master controller so both buildings stay in step.Related Articles
Reading That Helps You Specify
FAQ
LED Slave Controller For Large Projects FAQ
What is the protection rating of the LED Slave Controller For Large Projects?
This model is built for all weather outdoor use. The exact IP rating is printed on the parameter sheet, which we send on request.
Can the length, colour or lens be customised?
Yes. Lamp length or point spacing, housing colour, LED colour and lens angle are all made to the project requirement.
Is a sample available before I place a production order?
Yes. One piece is available for sample checking and samples ship in 3 to 5 days.
How is this fixture controlled?
It runs on the control protocol listed in the parameters above and works with our master and slave controllers, which also support mixed lamp types on one system.
What happens if a unit fails after installation?
Our defective rate is below 0.2 percent. Within the 2 to 5 year warranty we send replacements with your next order, and for a defective batch we repair and resend or agree another solution with you.
