Solution

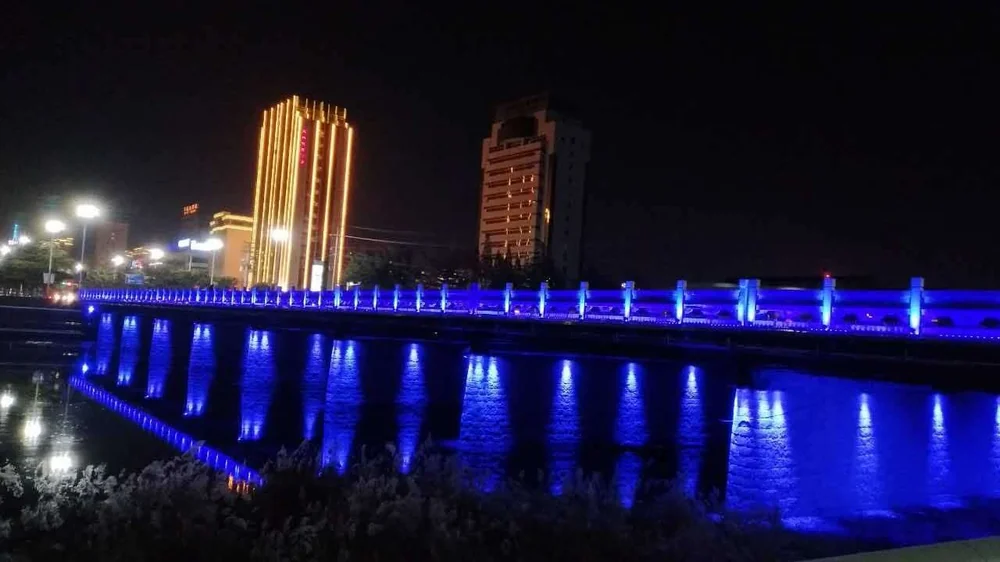

Bridge Night View Systems

Long span lighting with signal adaptors, power injection planning and dual redundancy so a single fault does not darken the crossing.

Request A Quote Talk To An Engineer
End To End

Every Stage From Design To After Sales

We take responsibility across design, prototyping, material selection, production, inspection, packing, logistics and after sales, so there is one party accountable for the night result.

Step 01

Design

Plan zones, ports, power injection and controller positions along the span.

Step 02

Prototype

Test a representative section for signal integrity at full cable length.

Step 03

Material

Specify fixtures with outdoor lightning and ESD protection and 50,000 hour rated life.

Step 04

Production

Produce, pot and pre address each zone so site work is plug and play.

Step 05

Inspection

Full load test with the actual controller and cable lengths used on the bridge.

Step 06

Packing

Crates labelled by pier, span and port.

Step 07

Logistics

Sea or air freight with spare fixtures included in the same shipment.

Step 08

After Sales

Remote diagnosis of a failed port and replacement units shipped with the next order.

Products In This Solution

Fixtures And Controls We Combine

High Power LED Dot Light 3W from FL Technology Pixel Light

High Power LED Dot Light 3W

Plastic shell plus independent aluminium heat sink at half the weight of die cast aluminium V020 LED DMX Pixel Light from FL Technology Pixel Light

V020 LED DMX Pixel Light

Three, four or six LED pixel with 4096 to 65536 grayscale for facade media screens D40 RGB LED Point Light from FL Technology Pixel Light

D40 RGB LED Point Light

Dual channel real time backup plus standard DMX512 in a 40 mm point body RGB LED Point Light D40 from FL Technology Pixel Light

RGB LED Point Light D40

Standard DMX512 point light for building facades bridges and skylights 30mm DMX512 Pixel Light from FL Technology Pixel Light

30mm DMX512 Pixel Light

16 bit 30 mm dot light with flat or sphere cover and profile mounting options LED Transparent Mesh Display from FL Technology Pixel Light

LED Transparent Mesh Display

Single LED mesh pixel that keeps up to 94 percent transmittance across a glass facade LED 3D Ball from FL Technology Pixel Light

LED 3D Ball

360 degree three dimensional pixel ball for halls malls and outdoor decoration Acrylic Cover LED Linear Light from FL Technology Linear Light

Acrylic Cover LED Linear Light

Imported diffuser linear bar that hides its cable inside the curtain wall structure
Cases

Cases Delivered This Way

Real installations photographed on site: facades, bridges, mesh screens, parks and waterfronts.

Curved art gallery facade covered in circular full colour LED pixel points Architectural

Art Gallery Facade

A curved gallery envelope covered with round full colour pixel points that follow the shell geometry. Twin residential towers running blue full colour media facade content at night Media Facade

Media Facade Lighting

Twin residential towers running synchronised full colour content across both elevations. River bridge arches outlined with colour changing LED light lines Bridge

Bridge Night View

Arch spans outlined with colour changing lines running a slow programmed sequence over the river. Office towers with vertical blue linear light runs synchronised across both buildings Architectural

Synchronised Linear Light Project

Vertical linear runs on two towers driven from one master controller so both buildings stay in step.
See All Project Cases
FAQ

Bridge Night View Systems FAQ

Can you handle the whole system or only the fixtures?
We supply the lamps, the lenses and the control system together, so protocols, grey levels and connectors match on site.
Do you provide technical support during installation?
Yes. We are a manufacturer supplying LED projects with technical support and we can also provide design service.
How do you handle a defective batch?
Products are made under a strict quality control system with a defective rate below 0.2 percent. For a defective batch we repair and resend, or agree another solution including recall according to the real situation.
Can the system run without a computer on site?
Yes. The master controller stores up to 255 programme files on an SD card and supports automatic, timed and holiday preset playback.

Get A Custom Solution

Send the drawing, the surface area and the effect you want at night. We will return a fixture list, a control topology and a price.
