Solution

Facade Grazing And Wall Washing

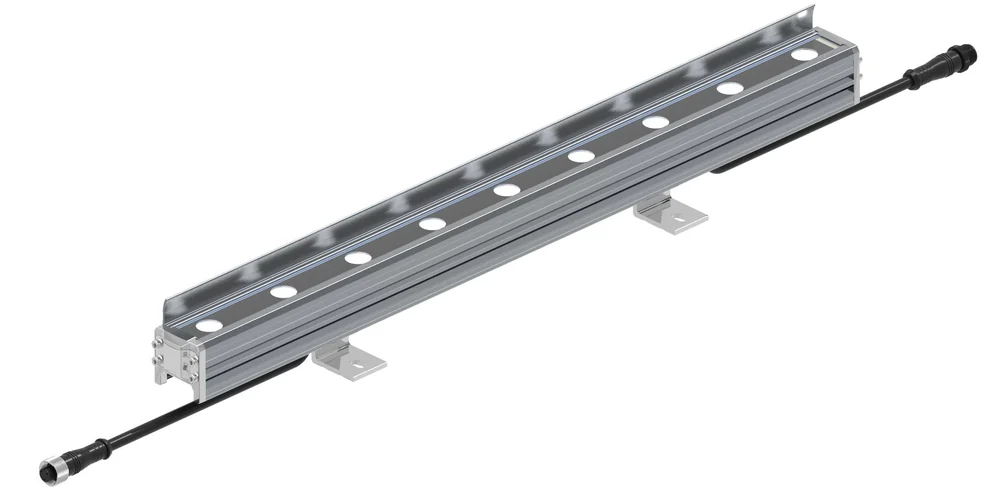

Wall washers and linear bars selected by mounting offset, surface texture and building height so the wash is even and the glare stays off the windows.

Request A Quote Talk To An Engineer
End To End

Every Stage From Design To After Sales

We take responsibility across design, prototyping, material selection, production, inspection, packing, logistics and after sales, so there is one party accountable for the night result.

Step 01

Design

Set the offset, aiming angle and spacing from the surface height and texture.

Step 02

Prototype

Trial a bay at night to confirm uniformity and check for hot spots and scallops.

Step 03

Material

Choose 6063 aluminium body, end cap type, glass cover and lens angle for the exposure.

Step 04

Production

Cut extrusion to the ordered length, assemble, seal and pot for the outdoor rating.

Step 05

Inspection

Waterproof testing, ageing and beam angle verification before packing.

Step 06

Packing

Zone labelled cartons matched to the elevation drawing.

Step 07

Logistics

Consolidated shipment with brackets, shields and spare fixings.

Step 08

After Sales

Warranty replacements and advice on re aiming after facade maintenance.

Products In This Solution

Fixtures And Controls We Combine

Acrylic Cover LED Linear Light from FL Technology Linear Light

Acrylic Cover LED Linear Light

Imported diffuser linear bar that hides its cable inside the curtain wall structure Outdoor Linear Light RGB from FL Technology Linear Light

Outdoor Linear Light RGB

Glass diffuser linear light connecting up to 60 pieces without voltage drop Outdoor Linear Light For Facade Lighting from FL Technology Linear Light

Outdoor Linear Light For Facade Lighting

Low power linear bar for irregular curtain wall structures and media solutions LED Light Bar With Wide Diffuser Area from FL Technology Linear Light

LED Light Bar With Wide Diffuser Area

Light emitted from two sides through a light guide board for a wide even luminous face Outdoor Light Bar With Acrylic Diffuser from FL Technology Linear Light

Outdoor Light Bar With Acrylic Diffuser

Thick acrylic diffuser for smooth output with embedded or flat installation LED Light Bar For Facade Lighting Project from FL Technology Linear Light

LED Light Bar For Facade Lighting Project

TTL protocol linear pixel bar for large facade media installations LED RGB Linear Light LL3618 from FL Technology Linear Light

LED RGB Linear Light LL3618

Anodised stretched aluminium bar with 512 grey levels and frosted acrylic cover LED Linear Light DMX512 RGB No Gap Connection from FL Technology Linear Light

LED Linear Light DMX512 RGB No Gap Connection

No gap connection linear light rated IP66 that cascades 60 pieces without voltage drop
Cases

Cases Delivered This Way

Real installations photographed on site: facades, bridges, mesh screens, parks and waterfronts.

River bridge arches outlined with colour changing LED light lines Bridge

Bridge Night View

Arch spans outlined with colour changing lines running a slow programmed sequence over the river. Office towers with vertical blue linear light runs synchronised across both buildings Architectural

Synchronised Linear Light Project

Vertical linear runs on two towers driven from one master controller so both buildings stay in step. Blue lit bridge arches and deck over a city river at night Bridge

Bridge Arch Lighting

Deck and arch lighting on a municipal river crossing using linear runs and wall washers. Waterfront building complex lit in warm white and reflected in still water Architectural

Waterfront Architectural Lighting

A waterfront complex outlined in warm white with the reflection treated as part of the composition.
See All Project Cases
FAQ

Facade Grazing And Wall Washing FAQ

Can you handle the whole system or only the fixtures?
We supply the lamps, the lenses and the control system together, so protocols, grey levels and connectors match on site.
Do you provide technical support during installation?
Yes. We are a manufacturer supplying LED projects with technical support and we can also provide design service.
How do you handle a defective batch?
Products are made under a strict quality control system with a defective rate below 0.2 percent. For a defective batch we repair and resend, or agree another solution including recall according to the real situation.
Can the system run without a computer on site?
Yes. The master controller stores up to 255 programme files on an SD card and supports automatic, timed and holiday preset playback.

Get A Custom Solution

Send the drawing, the surface area and the effect you want at night. We will return a fixture list, a control topology and a price.
