Industry Application
Bridge And Municipal Night View
Long span crossings where hundreds of metres of fixtures have to stay synchronised, survive weather and resist lightning.
Industry Pain Points
What Usually Goes Wrong
- Signal loss over long spans
- Lightning and surge damage on exposed structures
- Sections drifting out of sync
- Maintenance access that is expensive once the bridge is open
Customer Needs
What The Project Actually Requires
- Long distance transmission with signal adaptors
- Outdoor lightning and ESD protection designed into the fixture
- Dual redundancy so a broken cable does not stop the show
- Fixtures rated for 50,000 hours to reduce access visits
Typical Scenarios
Where Fixtures Go on This Kind of Project
Cable stay and arch outlining
Deck edge and parapet grazing
Pier and abutment washing
Animated full span sequences
Suitable Products
Fixtures We Specify Here
Pixel Light
High Power LED Dot Light 3W
Plastic shell plus independent aluminium heat sink at half the weight of die cast aluminium
Pixel Light
V020 LED DMX Pixel Light
Three, four or six LED pixel with 4096 to 65536 grayscale for facade media screens
Pixel Light
D40 RGB LED Point Light
Dual channel real time backup plus standard DMX512 in a 40 mm point body
Pixel Light
RGB LED Point Light D40
Standard DMX512 point light for building facades bridges and skylights
Pixel Light
30mm DMX512 Pixel Light
16 bit 30 mm dot light with flat or sphere cover and profile mounting options
Pixel Light
LED Transparent Mesh Display
Single LED mesh pixel that keeps up to 94 percent transmittance across a glass facade
Pixel Light
LED 3D Ball
360 degree three dimensional pixel ball for halls malls and outdoor decoration
Linear Light
Acrylic Cover LED Linear Light
Imported diffuser linear bar that hides its cable inside the curtain wall structureSolution Flow
From First Drawing To Handover
Review span drawings and power positions
Plan zones, ports and power injection points
Confirm fixings for the structure type
Produce and pre address by zone
Support commissioning and programme handover
Delivery Capability
What You Get With The Order
Zone by zone addressing before shipment
Signal adaptors for long runs supplied with the order
Backup wiring topology documented
Spare fixtures shipped with the main order
Cases
Cases in This Sector
Real installations photographed on site: facades, bridges, mesh screens, parks and waterfronts.
Bridge

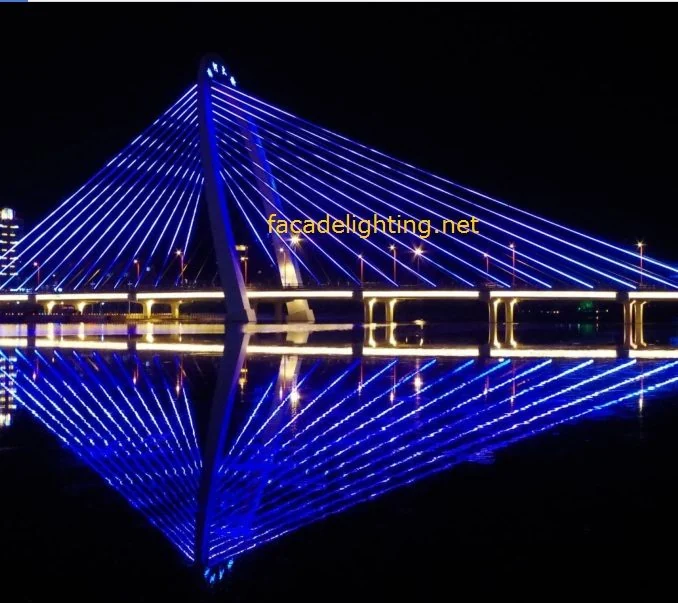

Pixel Light For Bridge
Cable stays fitted with pixel strings so the whole span animates as one surface.
Bridge
Bridge Night View
Arch spans outlined with colour changing lines running a slow programmed sequence over the river.
Bridge
Bridge Arch Lighting
Deck and arch lighting on a municipal river crossing using linear runs and wall washers.
Media Facade
Media Facade Lighting
Twin residential towers running synchronised full colour content across both elevations.
FAQ
Bridge And Municipal Night View FAQ
Do you supply fixtures for bridge and municipal night view outside China?
Yes. We supply LED outdoor lighting projects worldwide and ship by DHL, UPS, FedEx or TNT, with air freight and sea freight also available.
Can you help with the lighting layout?
Send the elevation or site plan and our engineers propose fixture positions, beam angles and control topology before you order.
What is the warranty on this kind of installation?
2 to 5 years depending on the product. Our defective rate is below 0.2 percent and replacements ship with your next order during the warranty period.
Can we print our own logo on the fixtures?
Yes. Tell us formally before production and confirm the design based on our sample.
Start A Bridge And Municipal Night View Project
Send the drawings and we will come back with fixture selection, quantities and a control topology proposal.
