LED Control System
LED Master Controller For Facade Lighting
Series FL-CS12B
Offline master controller supporting 150,000 points with SD card program storage
150,000Offline points
SD card up to 32GStorage
Up to 255 filesPrograms
Ethernet UDP 100 mTransport
Have a drawing? Send the DXF or PDF over WhatsApp or email and our engineers will mark the fixture positions. CAD files are supplied on request via WhatsApp.
Product Overview
What This Fixture Is
Led master controller
Key Benefits
- Dual way backup keeps the display running if a controller or cable fails
- Independent three primary colour control gives accurate white balance
- Offline scheduled playback with no permanent PC on site
- Mixed lamp types and protocols supported on one system
、System Features
- The system may support 150,000 points in offline. It may meet project needs of clients.
- The system supports automatic, regular, preset programs play.
- The controller is equipped with keys and External Remote Control; the episode selection, overall brightness adjustment, white balance adjustment and playback speed adjustment etc.
- Support offline one key fixed; clearing sub-controller ID number; it is convenient to use on field.
- Support switch parallel program; reduce system cascade chain length; improve stability.
- Support dual backup; Failure of one controller and net wire broken will not influence operation.
- Tricolor independent brightness control may adjust white balance precisely, simple and effectively.
- Support four-color lighting: energy saving, environmental and pure color.
- Adopt Ethernet interface and UDP network protocol, the maximum transmission distance is 100 meters.
- The LCD display module timely display the controller parameters and status.
- SD cFL storage, support maximum 32G, preset maximum 255 program files.
- Support remote online download and offline program update of multiple offline host controllers.
- The built-in animation test program may help customer to debug and apply in project.
- Support mixture of different type lamps and different protocols lamps (including DMX512 lamps), strong compatibility.
. Design Concept
- The system signal is dual redundant with doubled stability.
- Four-color design: energy saving,environmental and pure color.
- Synchronous with asynchronous integrated control: online priority; it will be shifted to offline effects when without online signal, achieve the video source backup.
- Large self-development and design video editing, playback and layout design software: greater adaptability, more support languages, greater openness. It is applicable for various complicated applications of shaped screen, multi-screen, building screen, pixel light screen etc.
- Support mainstream 32, 64-bit operating system: Windows 2000, Windows XP, Windows 7, Windows8，etc

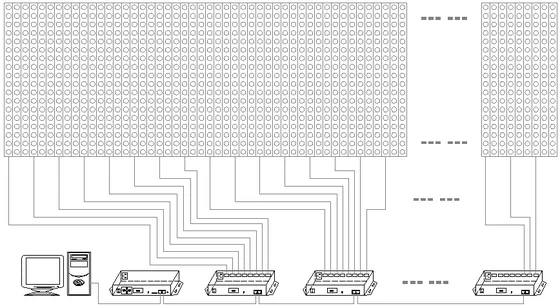

- With the arrangement of point light source at 96 * 18 dot matrix display as an example, using FL-CS12B video player, with offline integrated control mode architecture, as shown in Figure 96: wide point, high 18 points, a S type vertical wiring arrangement, each output port control 3 point light source, a total of 32 SPI interface.
- Computer FL-CS12B FL-218A/D-01 FL-218A/D-02 FL-218A/D-04
Who It Is For
- System integrators running facade screens of tens of thousands of pixels
- Contractors who need offline scheduled playback without a permanent PC
- Projects mixing different lamp types and protocols on one system
- Owners who want remote control of a night view scene over the internet
Problems It Solves
- Dual way backup so the display keeps running if a controller fails or a cable breaks
- Three primary colour independent brightness control and precise gamma correction
- Ethernet and UDP transport up to 100 m, plus fibre and wireless bridge options
- Support for mixed lamp types and protocols including DMX512 fixtures
Application Scenarios
- Building media facades
- Pixel light screens
- Bridge animation lighting
- Shaped and multi screen installations
Specifications
Technical Parameters
| Offline points | 150,000 |
|---|---|
| Storage | SD card up to 32G |
| Programs | Up to 255 files |
| Transport | Ethernet UDP 100 m |
Full parameter sheet for this model is supplied on request. Message us on WhatsApp and we will send the datasheet as a PDF.
Materials
| Enclosure | Metal controller housing |
|---|---|
| Display | LCD module showing parameters and status |
| Storage | SD card up to 32G on the master controller |
| Network | Ethernet with UDP protocol |
| Cabling | CAT5 twisted pair between controllers |
Manufacturing Process
- PCB assembly of the controller board
- Firmware loading and port testing
- Enclosure assembly and labelling
- Cascade test across multiple controllers
- Load test with the lamp types used on the project
Details And Drawings
Dimensions Wiring And Application Views
Comparison
How This Model Compares Inside The Range
| Model | Best For | Control | Key Difference |
|---|---|---|---|
| LED Master Controller For Facade Lighting (this model) | Building media facades | DMX512 / TTL | Offline master controller supporting 150,000 points with SD card program storage |
| LED Slave Controller For Large Projects | Building media facades | 1000M / 100M | Eight port sub controller with DMX512 auto addressing and dual way backup |
Comparison values are taken from the published parameters of each model. Ask an engineer if you need a side by side photometric comparison for a specific mounting height.
Use Guide
Installing And Commissioning
Connect the master controller to the sub controllers with CAT5, keep each section under the stated distance, then assign ports and addresses. Store the programme on the SD card so the system plays offline on schedule.
- Confirm the layout. Mark fixture positions on the elevation and check point spacing against viewing distance.
- Fix the mounting. Use the supplied bracket, profile or steel wire fixing and leave a service loop at each connector.
- Power and address. Inject power at the recommended interval, then address the line from the sub controller.
- Commission. Load a test pattern, correct white balance and store the show programme on the master controller.
Quality Control
How We Keep The Defect Rate Below 0.2 Percent
- LED chips selected from CREE, OSRAM, Epistar and other high quality suppliers
- Full colour lamps built with high grey level and high refresh rate driver ICs
- High power lamps supplied with professional lens light distribution
- Products produced under a strict quality control system, defective rate below 0.2 percent
- 2 to 5 year warranty, with replacements shipped alongside your next order
Related Products
Other Models Worth Comparing
Control System
LED Slave Controller For Large Projects
Eight port sub controller with DMX512 auto addressing and dual way backup
Pixel Light
High Power LED Dot Light 3W
Plastic shell plus independent aluminium heat sink at half the weight of die cast aluminium
Pixel Light
V020 LED DMX Pixel Light
Three, four or six LED pixel with 4096 to 65536 grayscale for facade media screens
Pixel Light
D40 RGB LED Point Light
Dual channel real time backup plus standard DMX512 in a 40 mm point bodyCases
Cases Using This Range
Real installations photographed on site: facades, bridges, mesh screens, parks and waterfronts.
Architectural
Art Gallery Facade
A curved gallery envelope covered with round full colour pixel points that follow the shell geometry.
Media Facade
Media Facade Lighting
Twin residential towers running synchronised full colour content across both elevations.
Bridge
Bridge Night View
Arch spans outlined with colour changing lines running a slow programmed sequence over the river.
Architectural
Synchronised Linear Light Project
Vertical linear runs on two towers driven from one master controller so both buildings stay in step.Related Articles
Reading That Helps You Specify
FAQ
LED Master Controller For Facade Lighting FAQ
What is the protection rating of the LED Master Controller For Facade Lighting?
This model is built for all weather outdoor use. The exact IP rating is printed on the parameter sheet, which we send on request.
Can the length, colour or lens be customised?
Yes. Lamp length or point spacing, housing colour, LED colour and lens angle are all made to the project requirement.
Is a sample available before I place a production order?
Yes. One piece is available for sample checking and samples ship in 3 to 5 days.
How is this fixture controlled?
It runs on the control protocol listed in the parameters above and works with our master and slave controllers, which also support mixed lamp types on one system.
What happens if a unit fails after installation?
Our defective rate is below 0.2 percent. Within the 2 to 5 year warranty we send replacements with your next order, and for a defective batch we repair and resend or agree another solution with you.
