Material Guide For Outdoor LED Facade Fixtures
What each part of an outdoor LED fixture is made of, and why the material choice decides whether the installation survives ten years on a facade.
What Each Fixture Family Is Built From

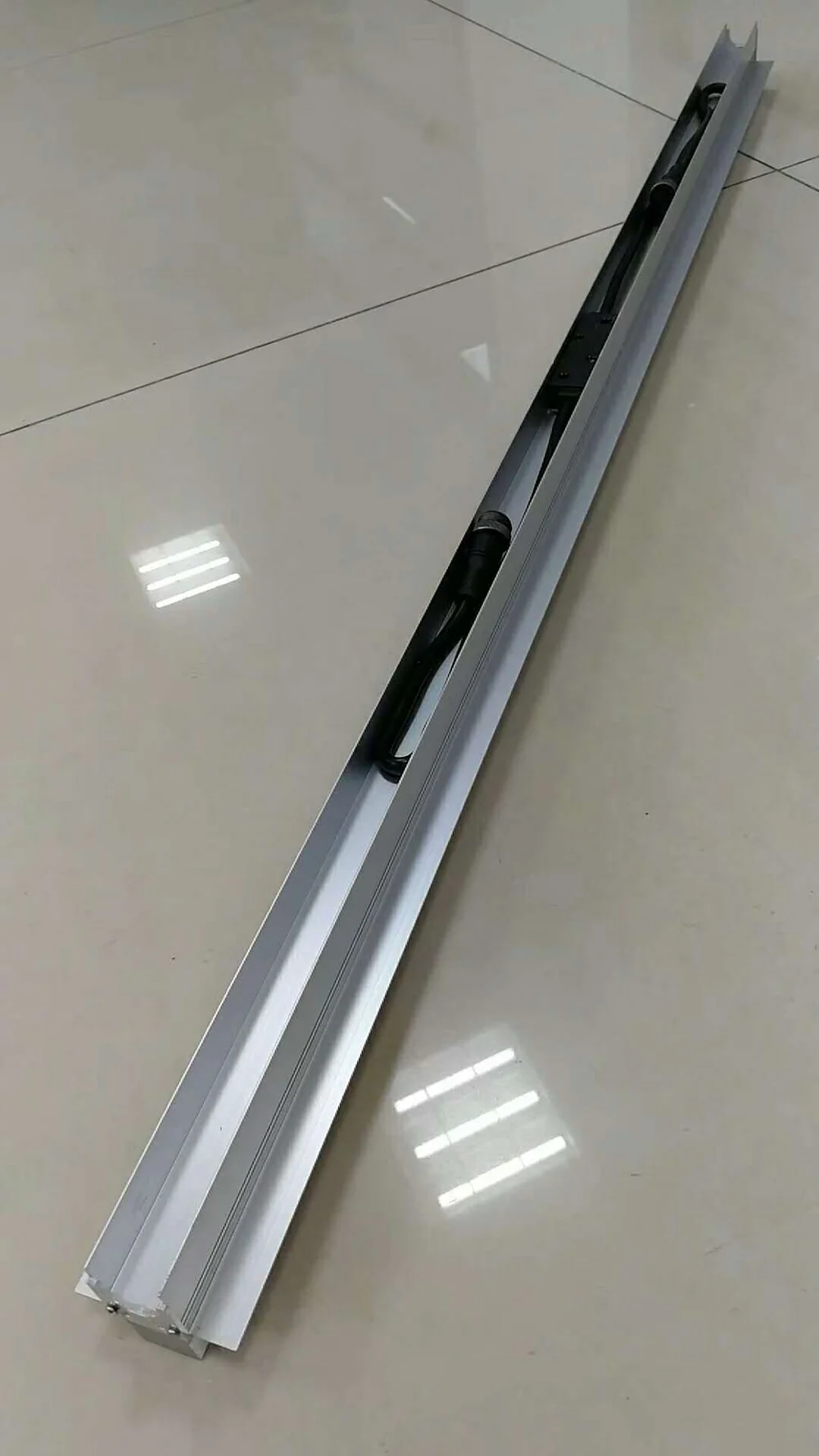

LED Linear Light
Materials
| Body | Stretched or extruded aluminium, anodised |
|---|---|
| Diffuser | Imported acrylic or glass, frosted or clear |
| Lens | Optical PC |
| Seal | PU potting and structural sealing |
| Finish | Housing colour customised to the curtain wall |
LED Wall Washer
Materials
| Body | Aviation grade 6063 extruded aluminium |
|---|---|
| End cap | Aluminium, die cast aluminium or stainless steel by model |
| Cover | Tempered or optical glass |
| Seal | High thermal conductivity weather resistant PU glue |
| Bracket | Adjustable, angle set on site |
LED Pixel Light
Materials
| Housing | Engineering grade flame retardant PC |
|---|---|
| Cover | Flame retardant PC, flat or sphere |
| Heat sink | Aluminium on high power models |
| Potting | High thermal conductivity weather resistant PU glue |
| Cable | National standard customised flexible cable |
LED Spotlight And Flood Light
Materials
| Body | UV and salt fog resistant extruded aluminium |
|---|---|
| Cover | Tempered glass |
| Lens | Optical PC, angle customised |
| Flame rating | V0 |
| Bracket | Adjustable fixing bracket or ground spike |
LED Control System
Materials
| Enclosure | Metal controller housing |
|---|---|
| Display | LCD module showing parameters and status |
| Storage | SD card up to 32G on the master controller |
| Network | Ethernet with UDP protocol |
| Cabling | CAT5 twisted pair between controllers |
Three Material Decisions That Decide Service Life
Housing Alloy
Aviation grade 6063 extruded aluminium resists rust and corrosion and carries heat away from the board. Thin or unspecified alloy is where early failures start.
Potting Compound
High thermal conductivity weather resistant PU glue keeps water out and heat moving. Full potting also protects the board against vibration on bridges.
Cover Material
Tempered glass and optical PC lenses hold transmittance and hardness outdoors. Flame retardant PC covers on pixel points keep weight down on cable strings.
Fixtures This Guide Refers To
Pixel Light
High Power LED Dot Light 3W
Plastic shell plus independent aluminium heat sink at half the weight of die cast aluminium
Pixel Light
V020 LED DMX Pixel Light
Three, four or six LED pixel with 4096 to 65536 grayscale for facade media screens
Pixel Light
D40 RGB LED Point Light
Dual channel real time backup plus standard DMX512 in a 40 mm point body
Pixel Light
RGB LED Point Light D40
Standard DMX512 point light for building facades bridges and skylightsCases Where This Applies
Real installations photographed on site: facades, bridges, mesh screens, parks and waterfronts.
Architectural
Art Gallery Facade
A curved gallery envelope covered with round full colour pixel points that follow the shell geometry.
Media Facade
Media Facade Lighting
Twin residential towers running synchronised full colour content across both elevations.
Bridge
Bridge Night View
Arch spans outlined with colour changing lines running a slow programmed sequence over the river.
Architectural
Synchronised Linear Light Project
Vertical linear runs on two towers driven from one master controller so both buildings stay in step.Need This Applied To Your Drawing
Send the elevation and we will apply the guidance above to your specific surface, mounting distance and viewing condition.
