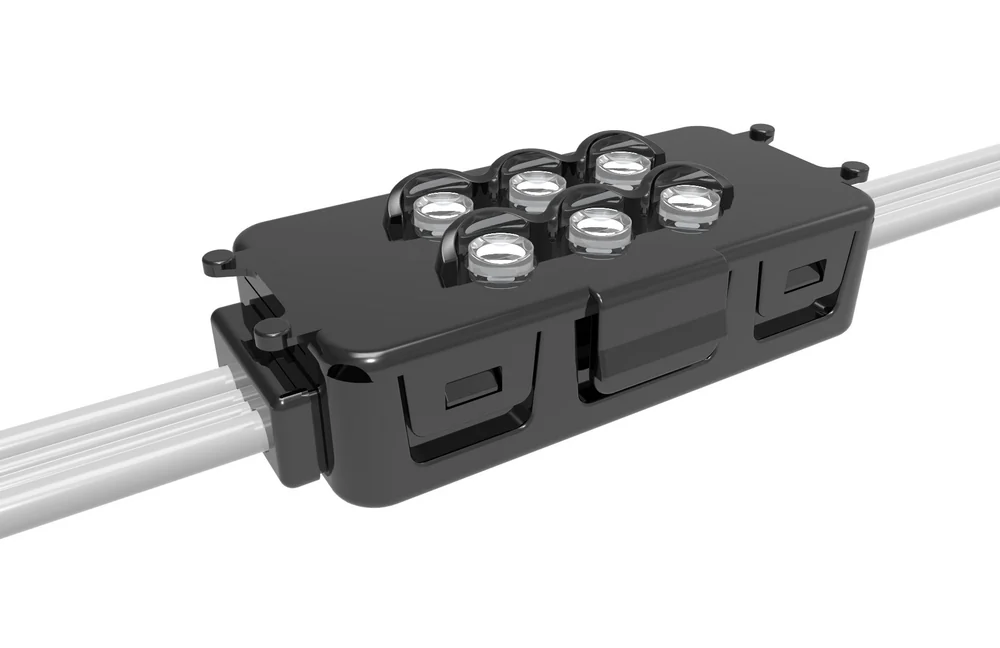

V020 LED DMX Pixel Light
Series V020
Three, four or six LED pixel with 4096 to 65536 grayscale for facade media screens
Have a drawing? Send the DXF or PDF over WhatsApp or email and our engineers will mark the fixture positions. CAD files are supplied on request via WhatsApp.
What This Fixture Is
V020 led dmx pixel light
Key Benefits
- Bends and twists with the cable so special shaped facades need no custom bracket
- Full PU potting with lightning and ESD protection for exposed outdoor positions
- High grey level driver ICs give smooth video and animation across a whole elevation
- Point spacing and cover shape customised to the viewing distance of the project
Key Points
- is a low power LED string product designed for outdoor landscape lighting. It adopts engineering grade flame-retardant plastic PC shell, which is sealed and waterproof by high thermal conductivity and weather-resistant PU glue; the lamp point is small in size and exquisite in appearance; the light string is connected by the national standard flexible cable, which can be bent and deformed at will, and supports the installation of special-shaped façade; The product spacing and color can be customized; it is suitable for large-area display or lighting of building facades, bridges and skylights.
- Measurement (Unit:mm)

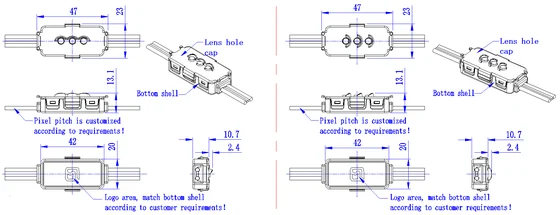

- 1.Three LED lamp lens hole upper cover measurement drawing

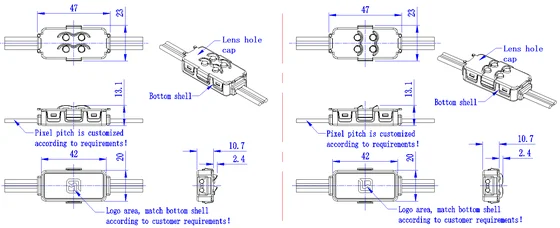

- Four LED lamp lens hole upper cover measurement drawing

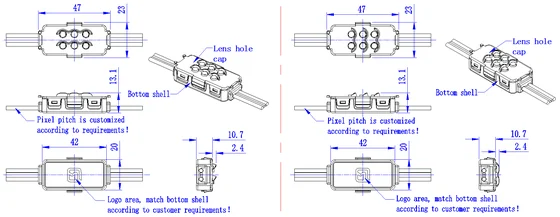

- Six LED lamp lens hole upper cover measurement drawing
Technical Parameters
The main controller is equipped with sub-controller and signal adaptor. The main control and sub-control working voltage is AC220V. The working voltage of the signal adaptor is the same as the working voltage of the pixel light.
Each sub-controller has 8 ports. The TTL sub-controller can carry 512 (RGB) pixels per port. The DMX sub-controller can carry 170 (RGB) pixels per port. It is used with the signal adaptor and supports 200 meters long distance transmission.
The main control and sub-control, sub-control and sub-control are connected by CAT5 twisted cables, the maximum distance of each section is less than 120 meters; the maximum transmission distance between the sub-controller and the signal adaptor is less than 120 meters. In this case, the maximum distance from the signal adaptor to the first pixel light is no more than 2 meters.
It is recommended that the maximum point spacing should not exceed 2.5 meters, and each intermediate power supply can support the power supply distance of 6 meters left and right (can be adjusted according to the project conditions).
Who It Is For
- Facade and media architecture contractors building low resolution pixel screens on curtain walls
- Bridge and municipal night view contractors covering long spans with addressable point sources
- Lighting designers who need a pixel pitch and cover shape matched to a specific viewing distance
- Distributors serving landscape, mall and hotel projects that need DMX512 or TTL point sources
Problems It Solves
- Flexible cable strings bend and twist freely so special shaped facades can be wired without custom brackets
- DMX512 and dual channel real time backup protocols keep the display alive if one line fails
- Full potting with high thermal conductivity weather resistant PU glue plus lightning and ESD protection
- Small pixel bodies and mesh mounting keep light transmittance up to 90 to 94 percent
Application Scenarios
- Building facades and curtain walls
- Bridges and viaducts
- Sky screens and ceilings
- Malls, hotels and restaurant halls
- Tree and landscape decoration
Technical Parameters
| Basic parameters | |||
| Color/gray | RGB/W each 4096 grayscale; RGB/W each 65536 grayscale; RGB/W each 256 gray scale | ||
| Light source | 3535 | LED quantities | 3pcs /4pcs /6pcs |
| Material | Flame retardant PC | Cover material | Flame retardant PC |
| Lifespan | 50,000h | Weight | 12g |
| Optical parameters | |||
| Operating Voltage | DC12V / 15V / 24v | Maximum power | 0.75W / 0.9W / 1.44W |
| RGB Light intensity | 15cd | White light | 30cd |
| Beam angle | 90° / 120° | Electric grade | Class III |
| Other parameters | |||
| Operating temperature | -20°C to 50°C | Storage temperature | -40°C to 70°C |
| Protection level | IP66 | ||
Materials
| Housing | Engineering grade flame retardant PC |
|---|---|
| Cover | Flame retardant PC, flat or sphere |
| Heat sink | Aluminium on high power models |
| Potting | High thermal conductivity weather resistant PU glue |
| Cable | National standard customised flexible cable |
Manufacturing Process
- LED and driver IC placement on the pixel board
- Shell moulding in flame retardant PC
- Full potting with high thermal conductivity PU glue
- Cable crimping and buckle assembly into strings
- Ageing test, addressing test and colour check before packing

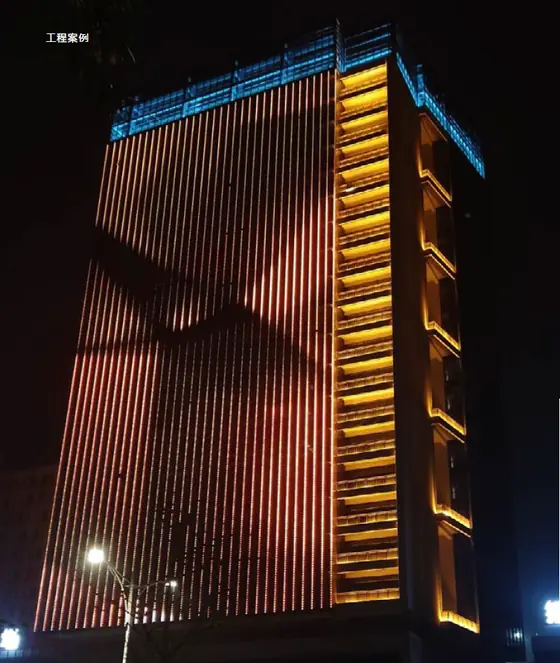

Dimensions Wiring And Application Views
How This Model Compares Inside The Range
| Model | Best For | Control | Key Difference |
|---|---|---|---|
| High Power LED Dot Light 3W | Building facades and curtain walls | DMX512 / dual channel backup | Plastic shell plus independent aluminium heat sink at half the weight of die cast aluminium |
| V020 LED DMX Pixel Light (this model) | Building facades and curtain walls | DMX512 / TTL | Three, four or six LED pixel with 4096 to 65536 grayscale for facade media screens |
| D40 RGB LED Point Light | Building facades and curtain walls | DMX512 + dual channel backup | Dual channel real time backup plus standard DMX512 in a 40 mm point body |
| RGB LED Point Light D40 | Building facades and curtain walls | Standard DMX512 | Standard DMX512 point light for building facades bridges and skylights |
| 30mm DMX512 Pixel Light | Building facades and curtain walls | DMX512 / TTL | 16 bit 30 mm dot light with flat or sphere cover and profile mounting options |
| LED Transparent Mesh Display | Building facades and curtain walls | DMX512 / TTL | Single LED mesh pixel that keeps up to 94 percent transmittance across a glass facade |
Comparison values are taken from the published parameters of each model. Ask an engineer if you need a side by side photometric comparison for a specific mounting height.
Installing And Commissioning
Fix the string to steel wire or aluminium profile, keep point spacing under the recommended maximum, then address the line from the sub controller. Power is injected at intervals so the last point holds the same brightness as the first.
- Confirm the layout. Mark fixture positions on the elevation and check point spacing against viewing distance.
- Fix the mounting. Use the supplied bracket, profile or steel wire fixing and leave a service loop at each connector.
- Power and address. Inject power at the recommended interval, then address the line from the sub controller.
- Commission. Load a test pattern, correct white balance and store the show programme on the master controller.
How We Keep The Defect Rate Below 0.2 Percent
- LED chips selected from CREE, OSRAM, Epistar and other high quality suppliers
- Full colour lamps built with high grey level and high refresh rate driver ICs
- High power lamps supplied with professional lens light distribution
- Products produced under a strict quality control system, defective rate below 0.2 percent
- 2 to 5 year warranty, with replacements shipped alongside your next order
Other Models Worth Comparing
Pixel Light
High Power LED Dot Light 3W
Plastic shell plus independent aluminium heat sink at half the weight of die cast aluminium
Pixel Light
D40 RGB LED Point Light
Dual channel real time backup plus standard DMX512 in a 40 mm point body
Pixel Light
RGB LED Point Light D40
Standard DMX512 point light for building facades bridges and skylights
Pixel Light
30mm DMX512 Pixel Light
16 bit 30 mm dot light with flat or sphere cover and profile mounting optionsCases Using This Range
Real installations photographed on site: facades, bridges, mesh screens, parks and waterfronts.
Architectural
Art Gallery Facade
A curved gallery envelope covered with round full colour pixel points that follow the shell geometry.
Media Facade
Media Facade Lighting
Twin residential towers running synchronised full colour content across both elevations.
Media Facade
LED RGB Dot Light Project
A commercial box turned into a low resolution video canvas with an RGB dot light matrix.
Media Facade
LED Mesh Screen
A transparent mesh screen carrying full colour imagery while keeping the view through the structure.Reading That Helps You Specify
V020 LED DMX Pixel Light FAQ
What is the protection rating of the V020 LED DMX Pixel Light?
Can the length, colour or lens be customised?
Is a sample available before I place a production order?
How is this fixture controlled?
What happens if a unit fails after installation?
Ready To Price This Model
Send quantity, run length and mounting condition and we will quote the V020 LED DMX Pixel Light together with drivers and controllers.
