Kraft Paper Cushion Making Machine
Forms one or two layer kraft into cushion pads at the packing station
Product Overview
The kraft paper cushion making machine, also called a cushion pad forming machine, takes kraft paper in roll and forms it into a cushioning pad. It can run a single layer or a two layer web rewound on our paper rewinding machine, and two layers give a noticeably stronger cushion. At 100 kg and 1250 x 1000 x 850 mm it sits at the packing bench rather than in the converting hall, feeding 760 mm wide paper at 25 metres per minute.
Key Benefits
- 100 kg on a 1250 x 1000 x 850 mm frame, so it belongs at the packing station not in a plant room
- Runs one or two ply, so cushioning strength is a paper choice rather than a machine change
- 760 mm feeding width covers most carton void fill formats
- Pads are formed on demand, so no finished cushioning has to be stored
What This Machine Fixes
- Pre-made cushioning is mostly air, so storing and shipping it is expensive
- Plastic air pillows have to be separated from paper waste by the receiver
- Single layer paper is not always strong enough for heavier items
Who Buys It
- E-commerce and mail order operations packing fragile goods
- Contract packers who need cushioning at several benches
- Distributors demonstrating paper cushioning to their customers
Where The Output Is Used
- Void filling cartons at an e-commerce packing bench
- Cushioning electronics, glassware and ceramics in transit
- Protecting fruit, vegetables and eggs in a display carton
- Replacing plastic air pillows on an existing packing line
How It Is Built
- Feeding roll width 760 mm
- Speed 25 metres per minute
- Paper thickness 70 gsm to 80 gsm, one or two ply feeding
- Two layer paper gives a stronger cushion effect than one layer
- Machine weight 100 kg
- Machine dimensions 1250 x 1000 x 850 mm
Published Specification
Every figure below is the specification published for this machine. Where a value is not listed it is confirmed with the quotation rather than estimated.
| Max material width | 760mm |
|---|---|
| Machine working speed | 25 meter/min |
| Paper thickness | 70-80gsm,can be 1-2 ply feeding |
| Machine weight | 100kgs |
| Machine size | L:1250xW:1000xH:850mm |
Materials

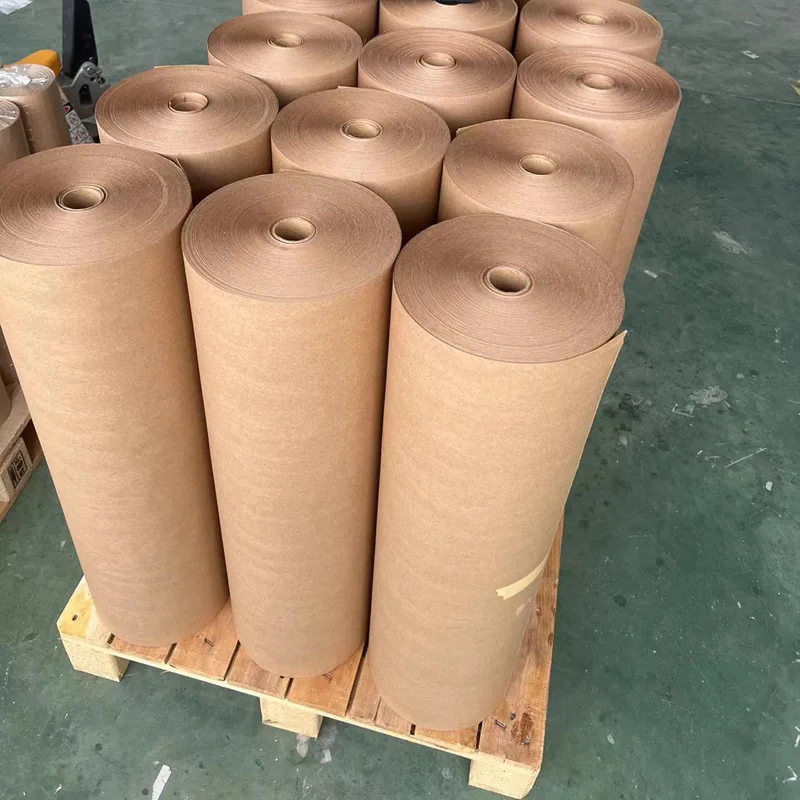

- Kraft paper 70 gsm to 80 gsm
- Recycled paper fibre grades
Customization Options
- One or two ply operation to suit the weight of goods being packed
- Bench height and discharge direction set for the packing station
- Power supply built to the destination market's voltage and phase
The Process This Machine Runs
Roll feeding
Stage 1 of the kraft paper cushion making machine process.
One or two ply lay-up
Stage 2 of the kraft paper cushion making machine process.
Cushion forming
Stage 3 of the kraft paper cushion making machine process.
Discharge to the packing bench
Stage 4 of the kraft paper cushion making machine process.
Quality Control
- Pad consistency checked at the start of each roll
- Two ply alignment checked when running double layer paper
- Feed tension set so the paper does not tear at 25 m per minute
Use Guide
- Choose one or two ply by the weight and fragility of what you are packing
- Run 70 gsm to 80 gsm paper, which is the published range for this machine
- Keep the finished pad clear of the discharge so the feed does not jam
- Check pad consistency when changing between one and two ply
How It Compares With The Alternatives
Compared with Kraft Paper Rewinding Machine EM-PR800
The rewinder prepares the flat, clean two layer paper this machine runs. Buying both gives you control of the input quality as well as the pad.
Compared with Kraft Paper Bubble Making Machine
Paper bubble is an embossed roll wrapped around the product. A cushion pad is formed at the bench and dropped into the void around it.
Kraft Paper Cushion Making Machine FAQ
What paper does this machine run?
Kraft paper from 70 gsm to 80 gsm, fed as one or two ply.
What difference does two ply make?
Two layer paper supplies a stronger cushion effect than one layer. The second layer is rewound on our paper rewinding machine.
How fast and how wide does it run?
25 metres per minute at a feeding roll width of 760 mm.
How heavy is it?
100 kg, on a 1250 x 1000 x 850 mm footprint, so it can sit on or beside a packing bench.
Is paper cushion recyclable?
It is made from paper fibre and goes into the paper waste stream, which is the reason most buyers move to it from plastic.
Do you supply the rewinding machine as well?
Yes. The EM-PR800 rewinding machine prepares the one or two layer paper this machine consumes.
