Kraft Paper Shredding Machine

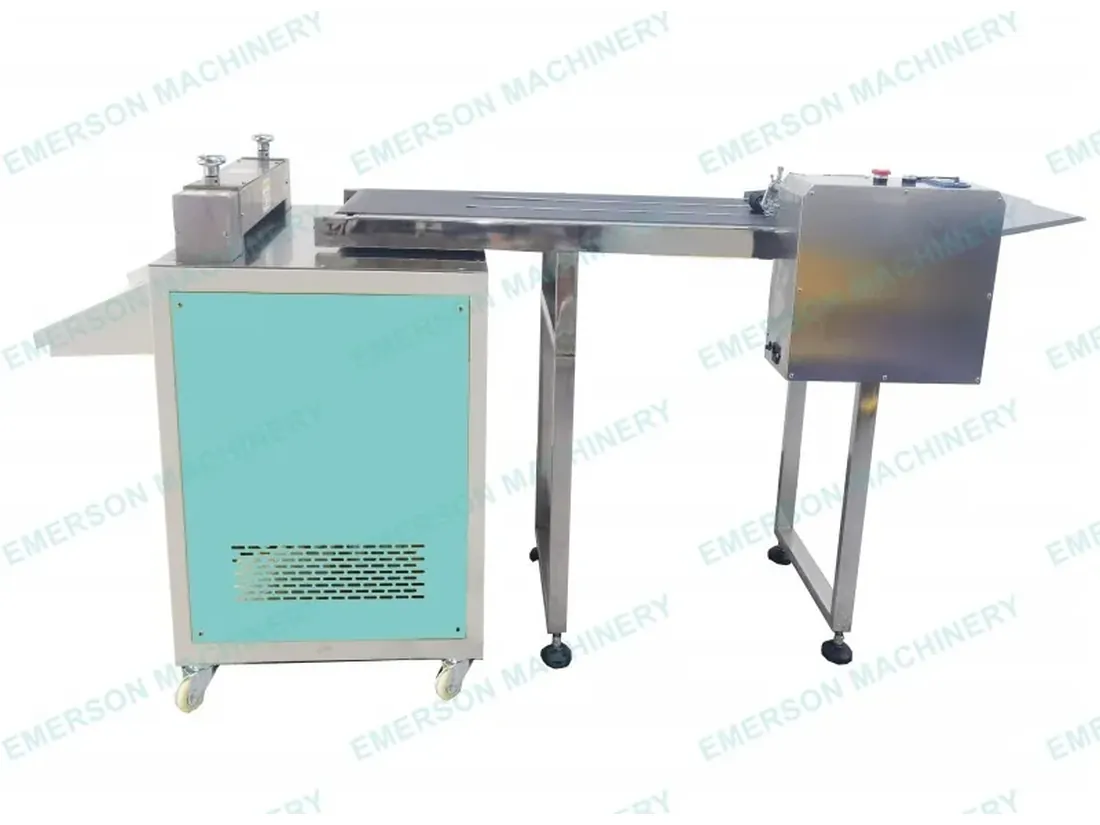

EM-PS500 shredder set up for kraft void fill production runs
Product Overview
This is the EM-PS500 paper shredding machine listed for kraft void fill work: sheets up to 480 mm wide from 14 gsm to 350 gsm, shredded at 25 m per minute into strands that are normally 3 mm wide. The finished shredded kraft is an environmentally friendly shock proof filler that goes into gift boxes, bottle packaging, electronics cartons and any shipper holding fragile goods.
Key Benefits
- Shredded kraft is a single material filler, so the whole carton goes into paper recycling
- Adjustable 25 m per minute working speed lets output be matched to the packing line
- Feed height up to 100 mm so a full stack of sheets can be loaded at once
- 260 kg and 2500 x 820 x 960 mm, small enough to sit next to the packing area
What This Machine Fixes
- Void fill bought in bulk costs more in freight and storage than in material
- Mixed plastic and paper packaging forces the receiver to separate waste
- Kraft trim and offcuts leave the plant as low value waste
Who Buys It
- Distribution centres making their own void fill
- Converters with kraft trim they currently sell as waste
- Packaging suppliers adding shredded kraft to their range
Where The Output Is Used
- Producing kraft void fill for a distribution centre's own use
- Converting offcuts and trim into saleable filler
- Filling electronics and component cartons against shock
- Supplying shredded kraft to retail and e-commerce packers
How It Is Built
- Machine model EM-PS500, maximum feeding material width 480 mm
- Finished strand width usually 3 mm, module changed for 2 mm, 4 mm or 6 mm
- Paper thickness 14 gsm to 350 gsm
- Working speed 25 m per minute, adjustable
- Paper sheet feeding height up to 100 mm
- 3.2 kW, 260 kg, machine size 2500 x 820 x 960 mm
Published Specification
Every figure below is the specification published for this machine. Where a value is not listed it is confirmed with the quotation rather than estimated.
| Machine model | EM-PS500 |
|---|---|
| Max. feeding material width | 480mm |
| Finished material width | Usually 3mm (if 2mm or 4mm or 6mm,need to change module) |
| Paper thickness | 14-350gsm,Max. 8-10pcs/each time if thickness 70g |
| Machine working speed | 25m/min(Adjustable) |
| Paper sheet feeding height | Max. 100mm |
| Machine power | 3.2 KW |
| Machine weight | 260 kg |
| Machine size | 2500*820*960mm (LxWxH) |
| Wooden box size | 810*900*1100mm (LxWxH) and conveyor 1600*780*565mm (LxWxH) |
| Power supply | 380V 3 Phase,50hz or as customer requirement |
Materials
- Kraft paper 14 gsm to 350 gsm
- Kraft trim and offcut sheets
Customization Options
- Module supplied for the strand width you sell
- Conveyor discharge arranged for the collection method in use
- Power supply built to the destination market's voltage and frequency
The Process This Machine Runs
Sheet feeding
Stage 1 of the kraft paper shredding machine process.
Shredding
Stage 2 of the kraft paper shredding machine process.
Crinkling
Stage 3 of the kraft paper shredding machine process.
Conveyor discharge
Stage 4 of the kraft paper shredding machine process.
Quality Control
- Cut width checked against the fitted module at each run
- Sheet count per pass kept within the published limit for the paper weight
- Discharge checked so strands stay separated rather than matted
Use Guide
- Keep the feed stack within the 100 mm feeding height
- Respect the 8 to 10 sheet limit per pass at 70 g paper
- Confirm the module matches the strand width before starting a run
- Collect the strands loosely so they stay fluffy and fill volume
How It Compares With The Alternatives
Compared with Crinkle Paper Shredding Machine
Same EM-PS500 machine and specification. That listing is framed around decorative crinkle filler, this one around kraft void fill production.
Compared with Kraft Paper Cushion Making Machine
The cushion machine forms a pad from a continuous web. The shredder cuts loose strands from sheets. Void fill and cushioning solve different parts of the same packing problem.
Kraft Paper Shredding Machine FAQ
Is this the same machine as the crinkle paper shredder?
Yes. Both are the EM-PS500 with the same published specification. The listings differ in application, not in machine.
What is the maximum feeding width?
480 mm, with a feeding height of up to 100 mm.
What strand widths are available?
3 mm as standard, and 2 mm, 4 mm or 6 mm by changing the module.
What paper weights can it handle?
14 gsm to 350 gsm, with a maximum of 8 to 10 sheets at a time at 70 g.
What is the installed power?
3.2 kW at 380 V three phase 50 Hz, or built to the customer's requirement.
What are the export packing dimensions?
A wooden box of 810 x 900 x 1100 mm, and the conveyor at 1600 x 780 x 565 mm.
