Fanfold Paper Folding Machine
Perforating and folding lines that turn parent kraft reels into dispenser-ready fanfolded stacks
4 Machines In This Family
Perforates and fanfolds kraft paper at 200 m per minute and stacks the pile for you
View machine
Entry level fanfold folder at 90 m per minute on a 800 kg frame
View machine
The 780 mm wide build of the high speed folder for large format void fill
View machine
Feeds two kraft rolls and C-folds them into a two layer fanfold in one pass
View machineWhy Buyers Come To This Category
- Imported fanfold stacks carry long lead times and freight cost on mostly air
- Single layer fanfold tears on sharp corners and heavy goods
- Loading heavy parent reels by hand is slow and a safety exposure
Who Buys These Machines
- Packaging converters supplying fulfilment operations
- Distributors importing finished fanfold today
- Paper mills adding a converting step
- Third party logistics operators
What This Family Does Better
Speeds from 90 to 200 m per minute across four models
Speeds from 90 to 200 m per minute across four models
Perforation and folding length adjustable from 8 to 15 inch
Perforation and folding length adjustable from 8 to 15 inch by module change
Widths from 470 mm to 800 mm including a two layer C-fold bu
Widths from 470 mm to 800 mm including a two layer C-fold build
Automatic lifting unwinding on the high speed models
Automatic lifting unwinding on the high speed models
Where The Finished Paper Ends Up

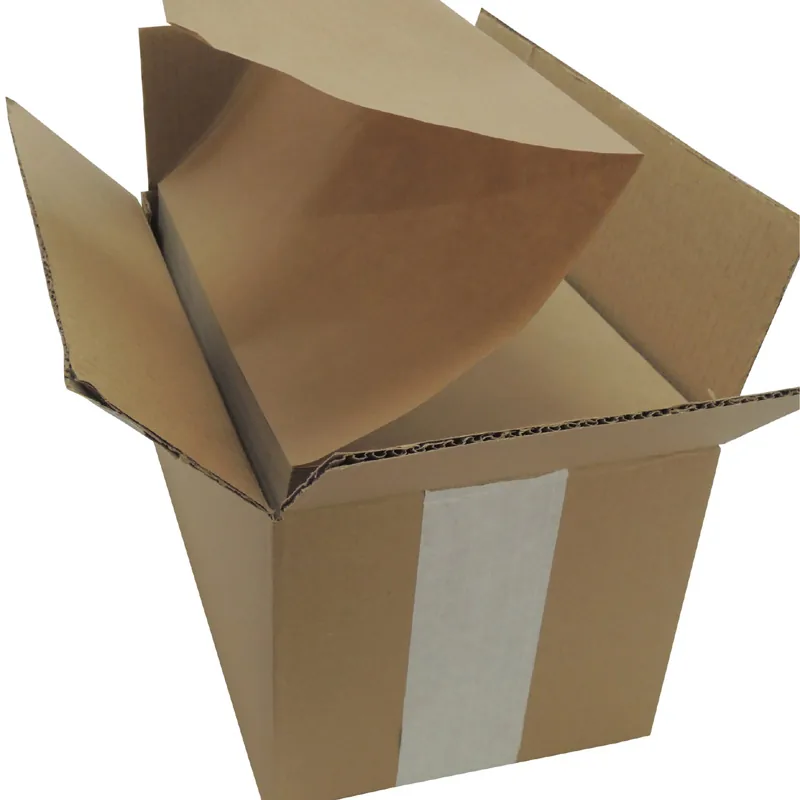

- E-commerce void fill
- Wrapping large or irregular items
- Furniture and appliance packing
- Third party logistics packing benches
Fanfold Paper Folding Machine Questions
What is the difference between the 500 and 800 models?
The 500 runs 470 mm at 200 m per minute, the 800 runs 780 mm at 150 m per minute. Choose by format width first.
Can we change the fold length after delivery?
Fold and perforation length is 8 to 15 inch, and the module has to be changed to move between lengths. 11 inch is standard.
What paper weight do these machines fold?
40 gsm to 150 gsm on the high speed models.
When is the C-fold machine worth the extra length?
When you need a two layer web. It combines two rolls inline for a much stronger surface, and needs 6500 mm of floor length.
Which model suits a first fanfold line?
The EM-PF500A at 90 m per minute and 800 kg is the entry machine, and the SD-PF500B shares its 470 mm format when volume grows.
Get A Quotation For Fanfold Paper Folding Machine
Send the paper format, the width and the volume you run. Finished paper samples are available from the sample room before any order.
