Kraft Honeycomb Paper Forming Machine
Die cuts and expands kraft paper into hexagonal honeycomb wrap at up to 200 m per minute
Product Overview

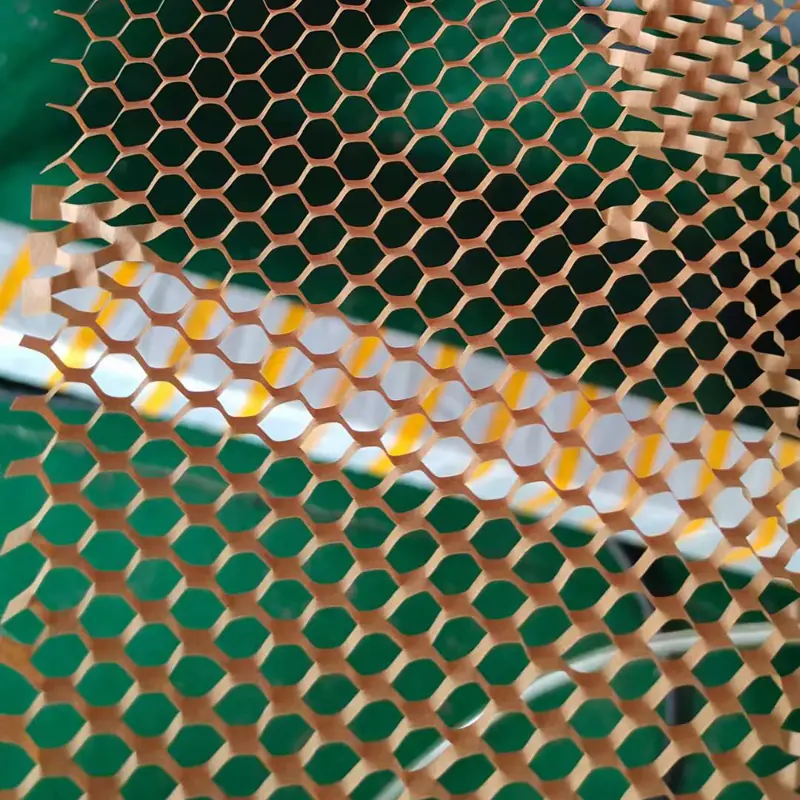

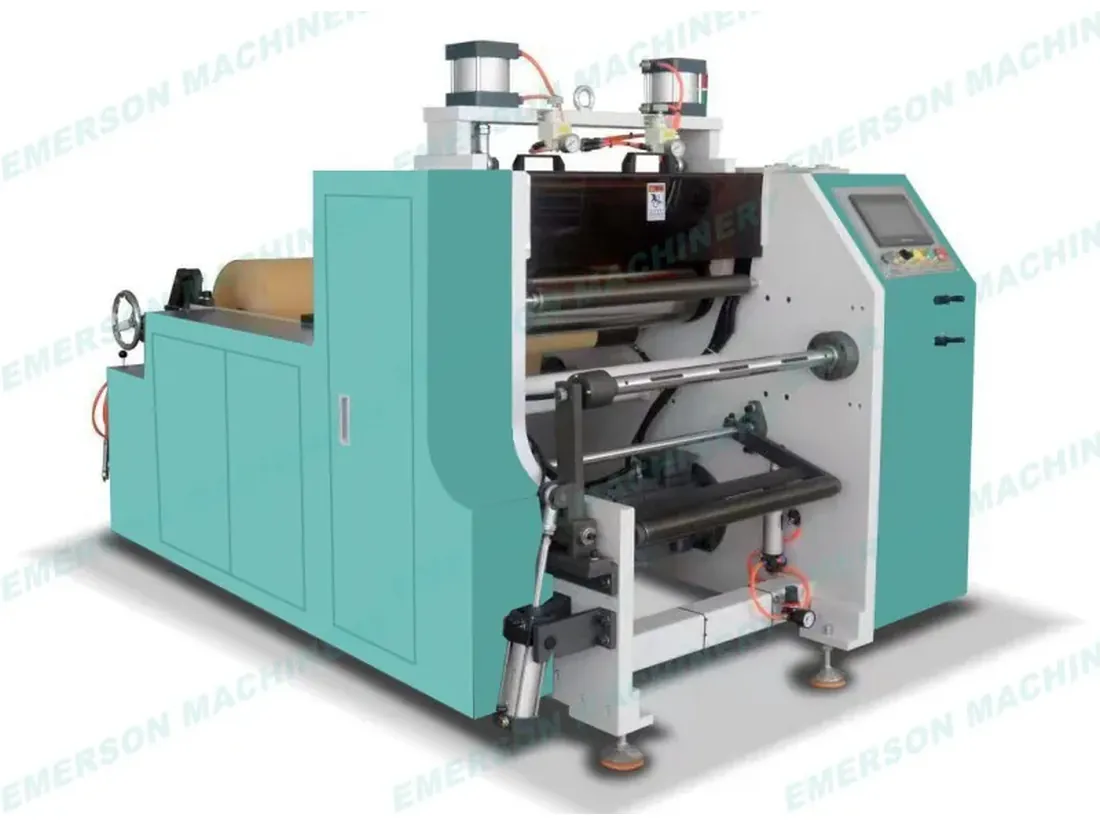

The EM-PH600 Kraft Honeycomb Paper Forming Machine unwinds, die cuts and rewinds honeycomb paper in a single process. The cut web expands into a hexagonal cell structure that stretches around a product and cushions it without scratching the surface, which is why it replaces plastic bubble wrap for fruit, flowers, ceramics and glassware. It runs paper from 70 g to 100 g at a speed adjustable from zero to 200 m per minute.
Key Benefits
- Unwinding, die cutting and rewinding happen in one process, so no intermediate handling is needed
- Honeycomb wrap stretches and conforms, cushioning without scratching a polished or painted surface
- Automatic meter counting stops the machine at the roll length you set, so finished rolls are consistent
- Takes unwinding rolls up to 1200 mm diameter and 1 tonne, so roll changes are infrequent
What This Machine Fixes
- Plastic bubble wrap is increasingly rejected by retail packaging specifications
- Bought-in honeycomb wrap arrives in fixed widths that rarely match the packing line
- Manual tension control produces loose or telescoped finished rolls
Who Buys It
- Packaging material converters supplying protective wrap to retailers
- Fresh produce and floral exporters packing their own goods
- Packaging distributors who want to make honeycomb wrap rather than buy it
Where The Output Is Used
- Wrapping fruit and vegetables for retail and export cartons
- Protecting cut flowers and potted plants in transit
- Interleaving and wrapping ceramics and glassware
- General inner and outer packaging where plastic film has been designed out
How It Is Built
- Suitable for die cutting honeycomb paper, wrapping paper, shock absorbing paper, kraft paper and fish net paper from 70 g to 100 g
- Main motor on an inverter for stepless speed regulation
- Automatic ultrasonic web guide controller on the unwinding stand
- Tension controlled by magnetic powder brake and clutch
- Automatic meter counting device that stops the machine at the set length
- Pneumatic cylinder raises and lowers the cutting mould
- Roll to sheet cutting available as an option
Published Specification
Every figure below is the specification published for this machine. Where a value is not listed it is confirmed with the quotation rather than estimated.
| Machine model | EM-PH600 |
|---|---|
| Max material width | 515mm (508mm/20inch and 380mm/15inch width most) |
| Machine working speed | 0-200m/min adjustable |
| Unwinding diameter | 0-1200mm |
| Rewinding diameter | 0-300mm |
| Unwinding roll weight | Max. 1 Ton |
| Unwinding shaft | 3"inflatable air shaft |
| Rewinding shaft | 1"/1.5"/2"/3" air shaft (choose either one,usually is 1.5") |
| Machine size | 2600*1350*1300mm(LxWxH) |
| Machine weight | 1500KG |
| Power supply | 380V 3 Phase or as customer requirement |
Materials
- Kraft paper 70 g to 100 g
- Wrapping paper
- Shock absorbing paper
- Fish net paper
Customization Options
- Rewinding shaft supplied in 1, 1.5, 2 or 3 inch, with 1.5 inch as the usual choice
- Roll to sheet cutting module added when the customer packs in sheets
- Power supply built to the destination market's voltage and phase
The Process This Machine Runs
Unwinding
Stage 1 of the kraft honeycomb paper forming machine process.
Ultrasonic web guiding
Stage 2 of the kraft honeycomb paper forming machine process.
Honeycomb die cutting
Stage 3 of the kraft honeycomb paper forming machine process.
Tension controlled rewinding
Stage 4 of the kraft honeycomb paper forming machine process.
Quality Control
- Web guiding checked so the cut pattern stays centred across the width
- Cell formation inspected on expansion at the start of each roll
- Meter counter verified against the finished roll length
Use Guide
- Inflate the 3 inch unwinding air shaft before loading the parent roll
- Set the target roll length on the meter counter so the machine stops automatically
- Adjust magnetic powder brake tension before speeding up, not during the run
- Check the die cutting mould for paper build-up between roll changes
How It Compares With The Alternatives
Compared with Automatic Kraft Honeycomb Paper Machine
The automatic version adds a five shaft paper loader that changes the finished roll without stopping the line. The EM-PH600 forming machine is the simpler and lower cost entry into honeycomb production.
Compared with Paper bubble machines
Honeycomb wrap stretches and wraps around shape. Embossed paper bubble stays flat and is better suited to interleaving and void fill.
Kraft Honeycomb Paper Forming Machine FAQ
What paper weight does the honeycomb die cutting work with?
70 g to 100 g. The machine also handles wrapping paper, shock absorbing paper, kraft paper and fish net paper in that range.
What is the finished width?
Maximum material width is 515 mm. The two most commonly ordered widths are 508 mm, which is 20 inch, and 380 mm, which is 15 inch.
How fast does it run?
Zero to 200 m per minute, adjustable on the inverter.
How big a parent roll can the unwinder take?
Up to 1200 mm diameter and a maximum roll weight of 1 tonne on a 3 inch inflatable air shaft.
Can it cut finished paper into sheets instead of rolls?
Yes, roll to sheet cutting is an option and can be matched with our paper cushion making machine.
What power supply does it need?
380 V three phase as standard, or built to the customer's requirement.
Related Machines
Die cuts flame resistant kraft into filter media with room for inline stitching
View machine
Changes the finished roll, pulls the shaft and labels it without an operator
View machine
Five shaft paper loader changes the finished roll without stopping the line
View machineGuides Cases And Applications
Honeycomb paper is a lightweight, strong kraft packaging material formed with hexagonal cells. It is used for inner and outer packaging, as a shock absorbent, as a shield and even as pallets.
Read more
Honeycomb paper is an eco-friendly and cost effective alternative to plastic bubble wrap cushioning, and it behaves differently on the packing bench.
Read more
A bulk order of the same machine type for two very different destinations means the build has to be repeated consistently while still meeting differen
Read more
Fruit, vegetables and cut flowers are damaged by pressure and by surface contact, not usually by impact. Honeycomb paper stretches around a soft item
Read more
Glass and glazed ceramics fail in two ways: impact through the carton wall, and abrasion between pieces. Paper cushioning has to do both jobs without
Read more
Filter media is the one application in this range that is not packaging. The EM-PH800 was built to a customer requirement for die cut flame resistant
Read moreRequest A Quotation For The Kraft Honeycomb Paper Forming Machine
Send your paper grade, working width and target output. A written specification and price comes back with the lead time.
