American Standard G2150 Forged D Type Shackle
The G2150 US type dee bolt shackle is a forged anchor shackle supplied with a safety pin and nut, manufactured in line with US type specifications. The bolt and nut closure is intended for long-term and permanent installations…
What This Product Is For
The G2150 US type dee bolt shackle is a forged anchor shackle supplied with a safety pin and nut, manufactured in line with US type specifications. The bolt and nut closure is intended for long-term and permanent installations where a screw pin could work loose, in heavy-duty lifting, rigging and securing.
Key Benefits
- Bolt, nut and cotter closure stays secure on permanent installations where screw pins back out
- Forged and heat treated body for heavy-duty lifting duty
- US type dimensional compliance so it matches American pattern assemblies
- Dee body keeps in-line pulls aligned through the shackle
Problems It Solves
- Screw pins backing out of connections that stay loaded for long periods
- Non-standard hardware failing US specification review
- Shackles being changed out repeatedly on fixed installations
Application Scenarios
- Permanent lifting and lashing points
- Heavy-duty industrial rigging assemblies
- Securing installations left in place between uses
- Marine and offshore fixed connections
Who It Is For
- Rigging hardware distributors serving US specifications
- Industrial contractors building permanent lifting points
- Marine and offshore equipment suppliers
Technical Features
- Forged US type dee bolt type anchor shackle
- Supplied with safety pin and nut
- Manufactured in line with US type specifications
- Carbon steel with heat treatment
Customization Options
- Size selected for the required working load
- Surface finish for the installation environment
- OEM supply for rigging hardware brands
Quality Control
- Forging and heat treatment controlled through production
- Bolt, nut and cotter fit checked at assembly
- Dimensions verified against the US type pattern

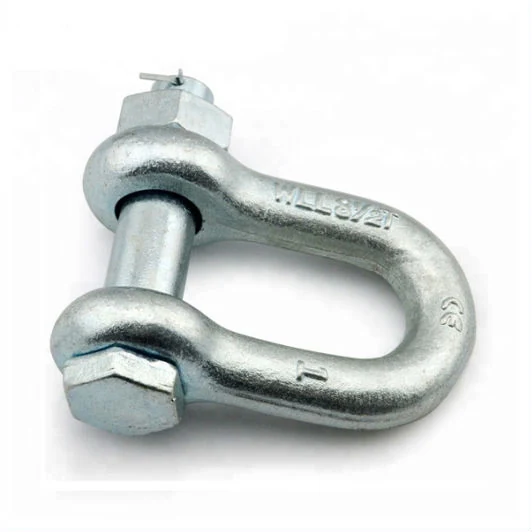

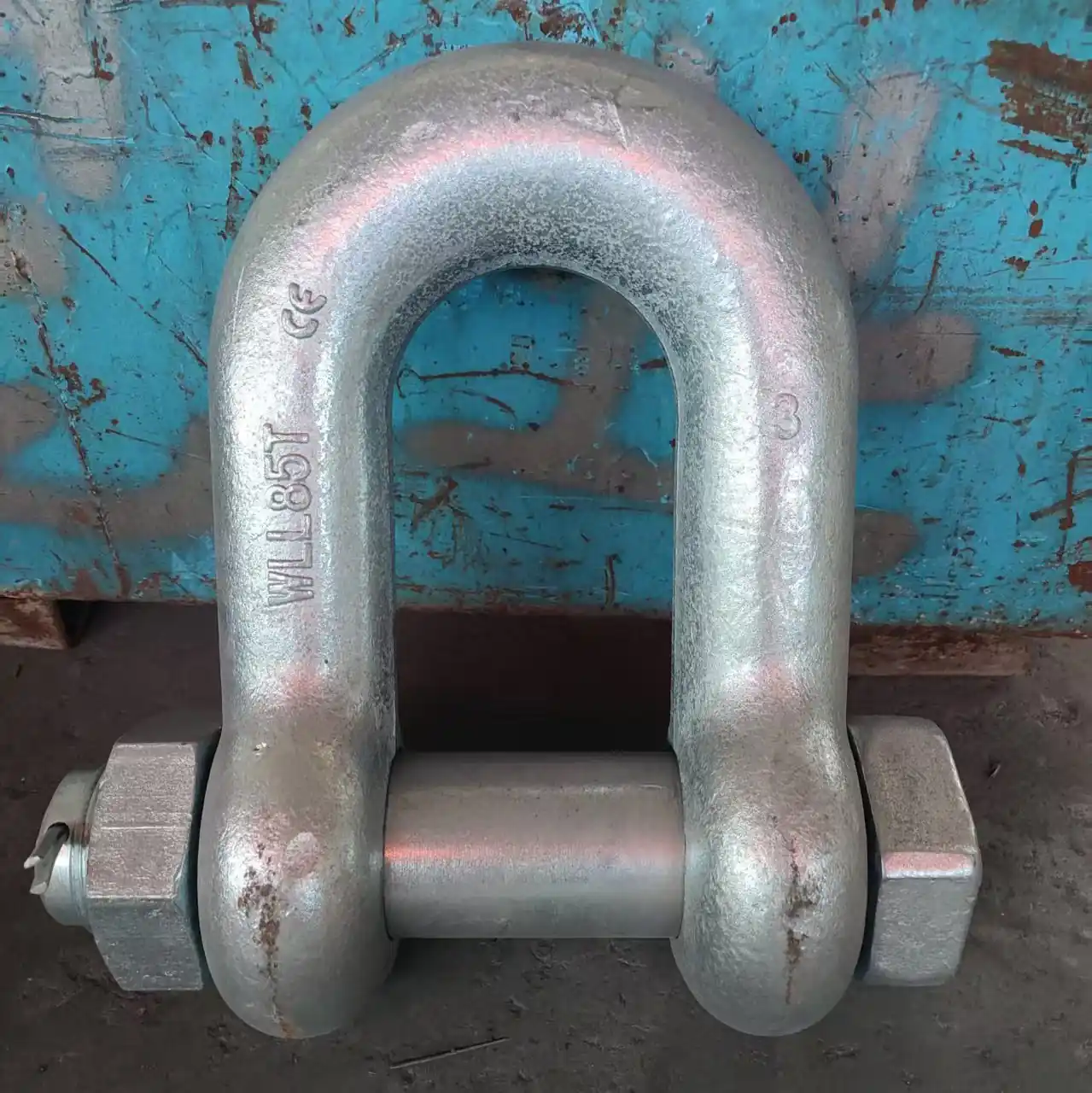

Photographs Of This Product
How It Compares With The Alternatives
Compared with D-type shackle G210 screw pin
The G2150 bolt and nut is for permanent installation, the G210 screw pin is for temporary attachments that change often
Compared with American standard G2130 bolt type bow shackle
The G2150 dee body is for in-line pull, the G2130 bow takes angled and multi-leg loads
How To Use And Maintain It
- Fit the cotter pin after tightening the nut on permanent installations
- Use in-line and move to a bow shackle for multi-leg loads
- Inspect the bolt and nut for corrosion at scheduled checks
- Confirm the working load limit covers the installed duty
What We Need From You To Quote
- Size or diameter, and the grade if it is specified
- Quantity and packing format
- Surface finish for the environment it works in
- Classification society, if a certificate is required
- Destination port for freight
American Standard G2150 Forged D Type Shackle FAQ
What closure does this shackle use?
A bolt type closure with safety pin and nut.
When should I choose bolt type over screw pin?
Bolt type shackles suit long-term or permanent installations, where a screw pin could work loose.
Which standard is it made to?
It is manufactured in line with US type specifications for the G2150 dee bolt shackle.
How is it manufactured?
Forged from carbon steel with heat treatment.
Do you accept OEM orders for rigging hardware?
Yes, we supply rigging hardware on an OEM basis.
