European Bow Type Shackle Stainless Steel
European bow type shackle in AISI 304 and AISI 316 stainless steel, forged in one piece with a screw pin and a polished finish. The wide bow accepts multi-leg slings and angled loads, which is why it is used on sailboat rigging…
What This Product Is For
European bow type shackle in AISI 304 and AISI 316 stainless steel, forged in one piece with a screw pin and a polished finish. The wide bow accepts multi-leg slings and angled loads, which is why it is used on sailboat rigging and on deck equipment exposed to spray. Every piece is inspected before delivery.
Key Benefits
- AISI 316 option resists pitting in permanent saltwater exposure so shackles do not stain deck hardware
- One-piece forging carries load without the bending seen in fabricated bodies
- Bow shape takes multi-leg and angled loads that a dee shackle would side load
- 100% inspection before delivery removes the sorting work at goods-in
Problems It Solves
- Plated carbon steel shackles rust and mark stainless deck fittings
- Dee shackles side load when more than one sling leg is attached
- Mixed quality imports arrive needing 100% incoming inspection
Application Scenarios
- Sailboat standing and running rigging connections
- Marine deck fittings and lifeline terminations
- Industrial lifting assemblies where corrosion resistance is required
- Multi-leg sling collection points
Who It Is For
- Rigging shops assembling stainless steel slings and lifelines
- Marine hardware distributors serving European specifications
- Boatyards fitting out sailing yachts and workboats
Technical Features
- Material AISI 316 and AISI 304 stainless steel
- Screw pin closure
- Polished finish
- Forged one-piece body
Specification Table
Values below are taken from our own product data. Where a figure is not published for this item, we confirm it against your order rather than estimating it.
| Material | Stainless steel AISI316 & AISI304 |
|---|---|
| Packing | In gunny bags or in cartons |
| Finish | Polished |
Customization Options
- 304 or 316 material selected for the corrosion environment
- Packing in gunny bags or cartons to suit your warehouse handling
- OEM and wholesale supply with export-ready packaging
Quality Control
- 100% quality inspection before delivery
- Material grade confirmed as 304 or 316 per order
- Pin thread engagement and body dimensions checked before packing

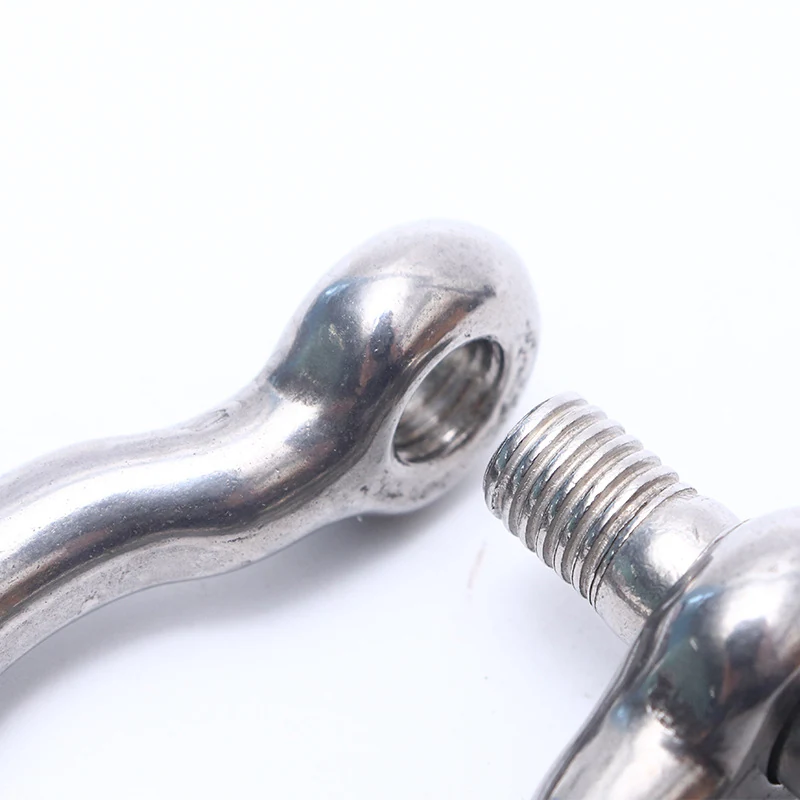

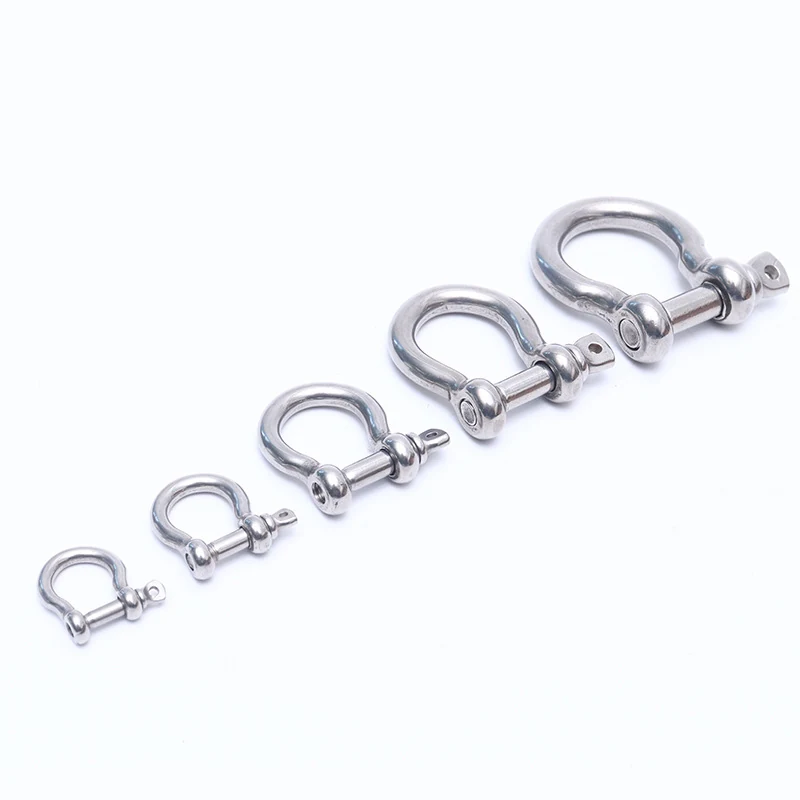

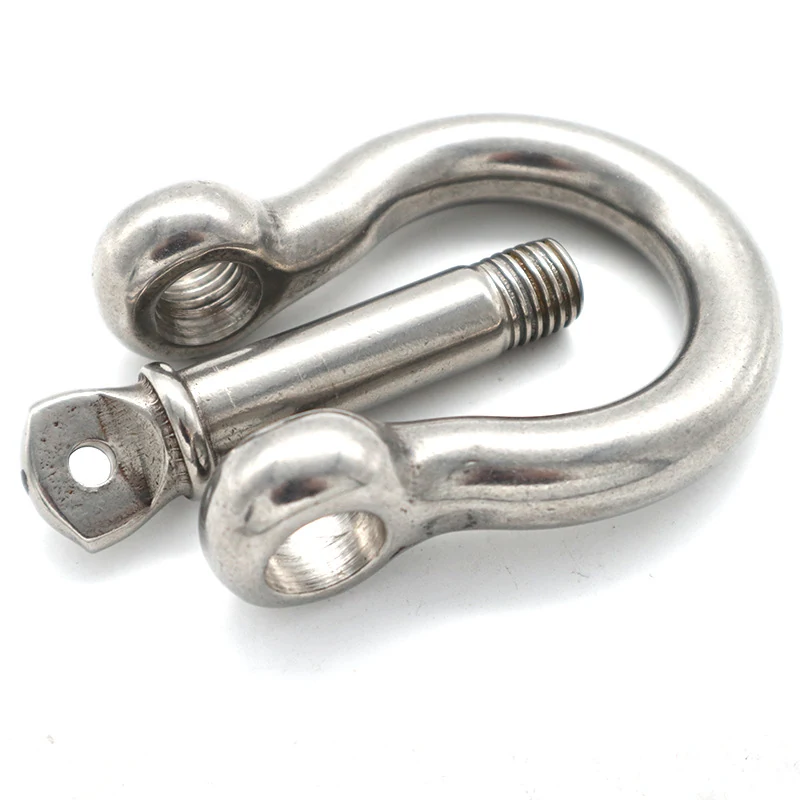

Photographs Of This Product
How It Compares With The Alternatives
Compared with European dee type shackle
The bow opening takes multi-leg and angled loads, while the dee body is intended for straight in-line pull
Compared with Galvanized carbon steel bow shackle
Stainless keeps its finish in spray and needs no re-galvanizing, at a higher piece price
How To Use And Maintain It
- Choose 316 for permanent saltwater exposure and 304 for sheltered or industrial use
- Seat the screw pin fully before loading and check it has not backed out during service
- Keep the load in the plane of the bow rather than across the pin
- Do not mix stainless shackles with galvanized components in wet service
What We Need From You To Quote
- Size or diameter, and the grade if it is specified
- Quantity and packing format
- Surface finish for the environment it works in
- Classification society, if a certificate is required
- Destination port for freight
European Bow Type Shackle Stainless Steel FAQ
Is this shackle 304 or 316?
Both are available. We supply AISI 316 and AISI 304 stainless steel, so specify the grade on your order.
What pin type does it use?
Screw pin.
What finish is it supplied in?
Polished.
How is it packed for export?
In gunny bags or in cartons, with export-ready packing.
Do you take OEM orders?
Yes. We offer OEM and wholesale supply of stainless steel European type shackles.
Is every shackle inspected?
Yes. The shackles undergo 100% quality inspection before delivery.
