European D Type Shackle Stainless Steel
European dee shackle to EN 13889, forged in one piece from AISI 304 or AISI 316 stainless steel with a polished finish. It is available in large sizes with screw pin or bolt pin closure, for lifting, lashing and rigging in…
What This Product Is For
European dee shackle to EN 13889, forged in one piece from AISI 304 or AISI 316 stainless steel with a polished finish. It is available in large sizes with screw pin or bolt pin closure, for lifting, lashing and rigging in marine, offshore and industrial service where a plated shackle would corrode.
Key Benefits
- Made to EN 13889, so it matches the European rigging specifications buyers already work to
- 304 or 316 stainless resists corrosion in offshore and washdown environments with low maintenance
- One-piece forging resists bending and deformation under load
- Large sizes and bolt pin option cover lashing points that a small screw pin shackle cannot
Problems It Solves
- Galvanized shackles corroding and seizing in offshore service
- Non-EN hardware failing specification review on European projects
- Screw pin shackles working loose on long-term lashing points
Application Scenarios
- Lifting assemblies in marine and offshore work
- Cargo lashing and securing points
- Sailboat and yacht rigging connections
- Industrial rigging in corrosive or washdown areas
Who It Is For
- Rigging suppliers working to European standards
- Offshore and marine contractors specifying stainless hardware
- Distributors serving yards and lashing equipment users
Technical Features
- Manufactured to EN 13889
- Material AISI 316 and AISI 304 stainless steel
- Screw pin or bolt pin closure
- Polished finish, forged one-piece body
Specification Table
Values below are taken from our own product data. Where a figure is not published for this item, we confirm it against your order rather than estimating it.
| Material | Stainless steel AISI316 & AISI304 |
|---|---|
| Packing | In gunny bags or in cartons |
| Finish | Polished |
Customization Options
- Screw pin or bolt pin closure
- 304 or 316 material and large size options
- OEM and wholesale supply with export-ready packing in gunny bags or cartons
Quality Control
- Dimensions checked against EN 13889
- Material grade verified as 304 or 316 per order
- Pin fit and thread engagement checked before packing

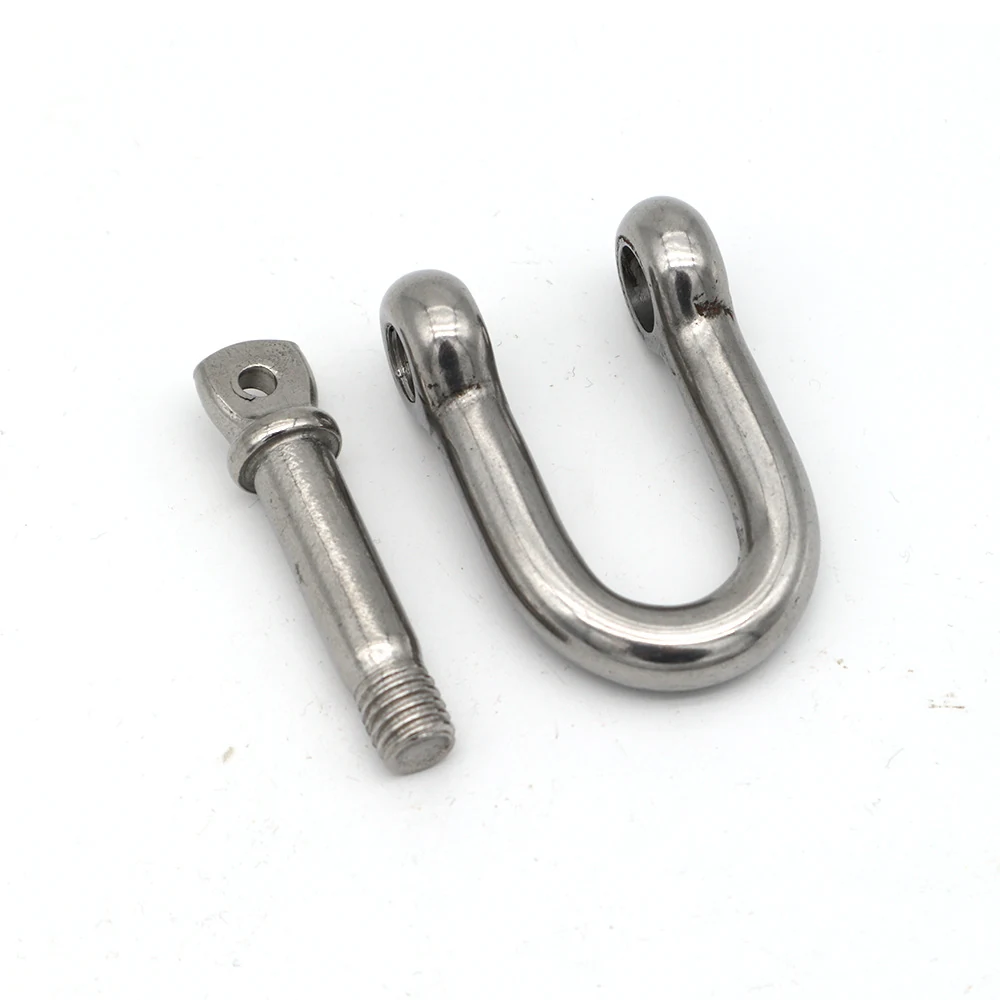

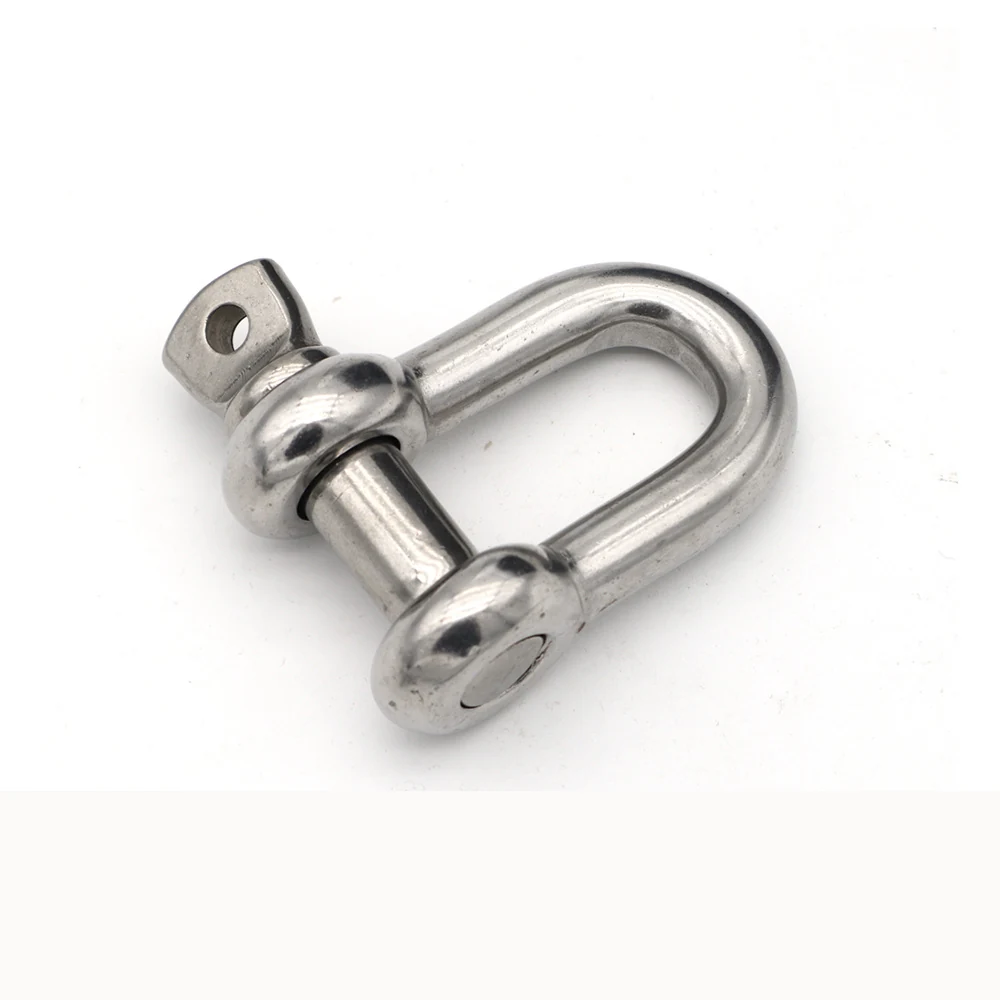

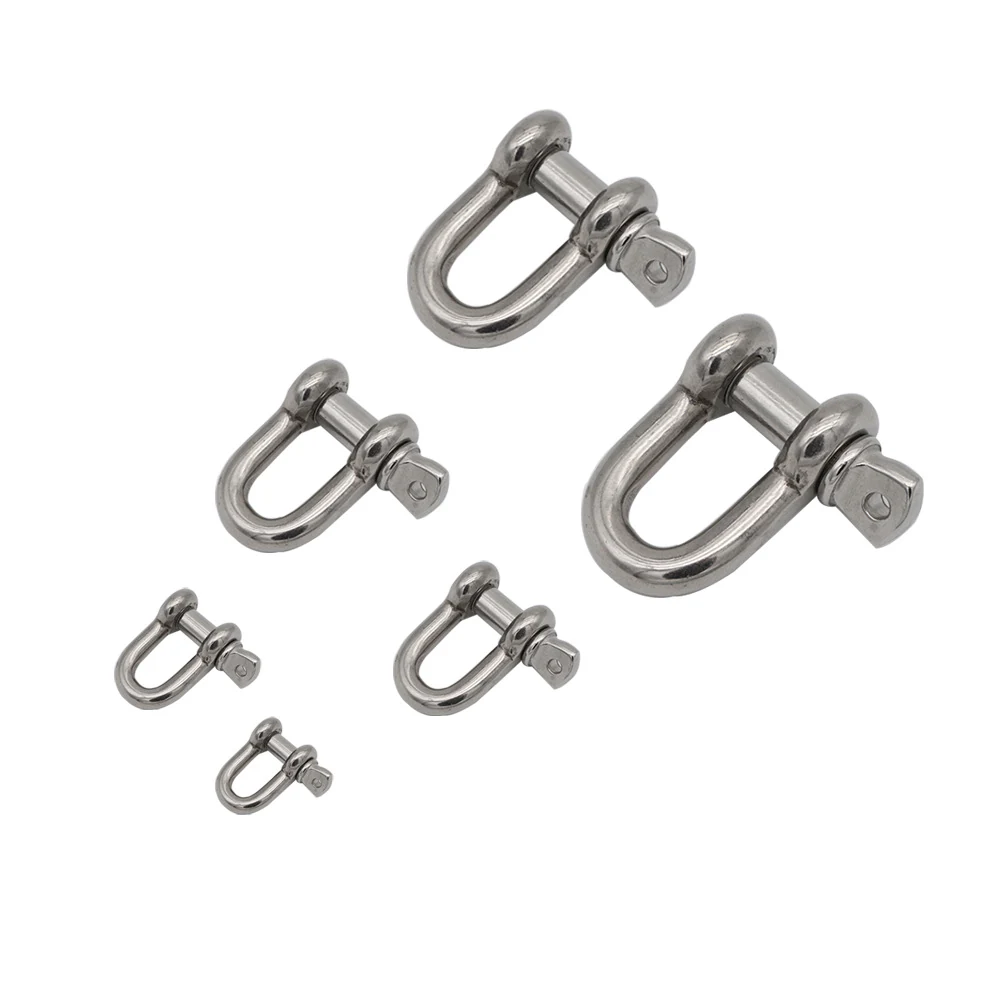

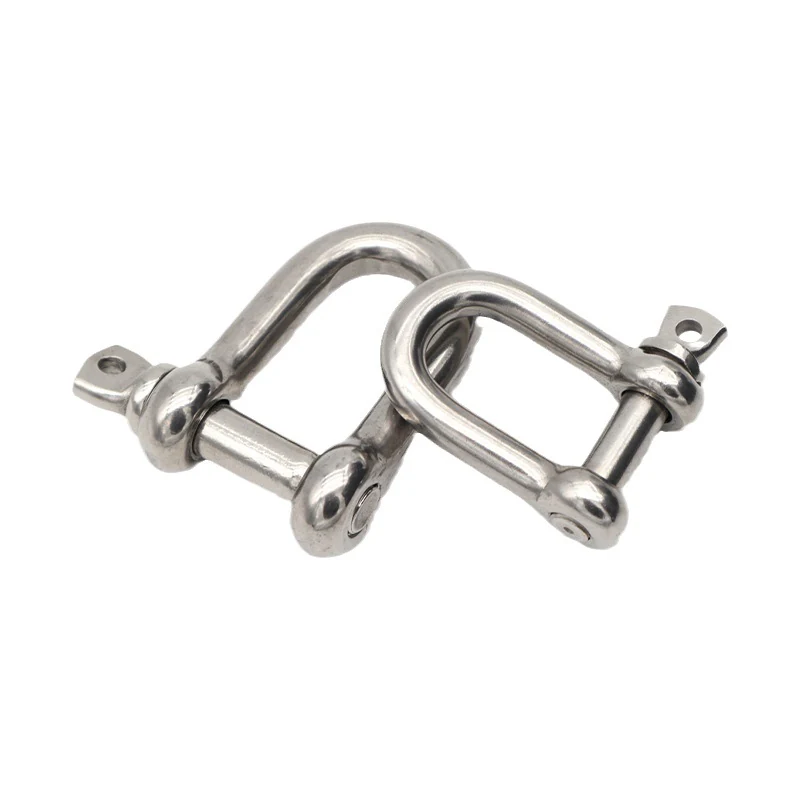

Photographs Of This Product
How It Compares With The Alternatives
Compared with European bow type shackle
The dee body is for in-line pull, the bow body takes angled and multi-leg loads
Compared with U.S. pattern dee shackle
Dimensions follow EN 13889 rather than the U.S. 210 and 2150 pattern, so pin and jaw sizes differ
How To Use And Maintain It
- Use bolt pin versions for long-term lashing where a screw pin could back out
- Load in line with the body and avoid side loading the pin
- Select 316 for permanent seawater exposure
- Check the pin seats fully before applying load
What We Need From You To Quote
- Size or diameter, and the grade if it is specified
- Quantity and packing format
- Surface finish for the environment it works in
- Classification society, if a certificate is required
- Destination port for freight
European D Type Shackle Stainless Steel FAQ
Which standard does this shackle meet?
EN 13889.
Which stainless grades are offered?
AISI 316 and AISI 304.
Can I get a bolt pin instead of a screw pin?
Yes. Screw pin and bolt pin closures are both available.
Are large sizes available?
Yes, the dee shackle is available in large sizes.
How is it packed for export?
In gunny bags or in cartons with export-ready packaging.
Do you accept OEM orders?
Yes, we supply OEM and wholesale stainless steel European type dee shackles.
