DIN763 DIN764 And DIN766 Chain Pitch Compared

Same Family Three Pitches

German standard chain covers DIN766, DIN764, DIN763 and DIN5685 Type A and Type C. The wire diameter can be identical across them. What changes is the inside length of the link, which is what decides how the chain behaves in service.

See DIN766 Short Link Chain Germany Standard →

DIN766 Short Pitch

The short pitch keeps the chain compact and stable, which is what you want where the chain runs over a sprocket, through a fairlead or into a windlass gypsy. It is the least flexible of the three by hand.

See DIN766 Short Link Chain Germany Standard →

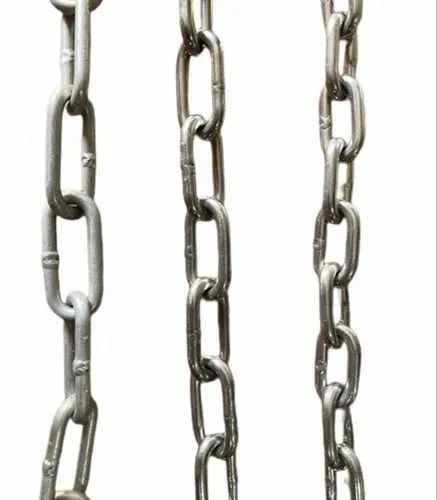

DIN764 Medium Pitch

The middle option. More flexible than DIN766, more stable than DIN763, and the usual choice for general industrial rigging, hanging and light securing.

See DIN764 Mid Link Chain Germany Standard →

DIN763 Long Pitch

The longest pitch of the three, with published working, proof and breaking loads by size. It is easier to handle and shackle by hand, which matters when lines are being made up on the water.

See DIN763 Long Link Chain German Standard →

Match The Pitch To The Fittings You Already Have

Connectors, shackles and gypsies are cut for a particular pitch. Ordering a chain of the right diameter but the wrong pitch means the fittings will not seat. Confirm which DIN standard your existing accessories follow before you order.
