US type G209 Screw Pin Shackle
The US type G209 screw pin shackle is drop forged with a 45# carbon steel body and 40Cr alloy steel pin, heat treated, with working load limits from 1/2 ton to 55 tons. It is built to ASTM A153 and Federal Specification RR-C-271F…
What This Product Is For
The US type G209 screw pin shackle is drop forged with a 45# carbon steel body and 40Cr alloy steel pin, heat treated, with working load limits from 1/2 ton to 55 tons. It is built to ASTM A153 and Federal Specification RR-C-271F Type IVA, with an ultimate load of 4 or 6 times the working load limit, for lifting, wire rope and chain fittings and marine hardware.
Key Benefits
- Working load limits from 1/2 ton to 55 tons cover light rigging through to heavy lifting from one pattern
- Ultimate load of 4 or 6 times the WLL gives the safety margin lifting inspectors look for
- Drop forged body with a 40Cr alloy pin, so the pin is not the weak point
- Four finish options including Dacromet and powder coat for corrosive environments
Problems It Solves
- Shackles without a traceable standard failing a lifting inspection
- Galvanized finish not lasting in aggressive or chemical environments
- Needing several shackle patterns to cover a wide WLL range
Application Scenarios
- Lifting and connecting assemblies
- Wire rope fittings and terminations
- Chain fittings and sling assemblies
- Marine hardware connections
Who It Is For
- Rigging distributors supplying the US pattern market
- Lifting contractors assembling wire rope and chain slings
- Marine hardware suppliers
Technical Features
- Body 45# carbon steel, pin 40Cr alloy steel
- Drop forged and heat treated
- Meets ASTM A153 and Federal Specification RR-C-271F Type IVA
- WLL range 1/2 to 55 tons, ultimate load 4 or 6 times WLL
Specification Table
Values below are taken from our own product data. Where a figure is not published for this item, we confirm it against your order rather than estimating it.
| Feature | Material: Body 45# Carbon Steel, Pin 40 |
|---|---|
| Cr Alloy Steel Technology | Drop |
| Forged Surface Finish | Electro Galvanized, Hot Dip Galvanized, Dacromet, |
| Powder Coated Ultimate Load | 4 times or 6 times of the |
| Will Heat Treatment | 6 times |
| Wll | 1/2-55 |
Customization Options
- Surface finish electro galvanized, hot dip galvanized, Dacromet or powder coated
- Size selected across the 1/2 to 55 ton WLL range
- OEM marking on request
Quality Control
- Heat treatment controlled through production
- Ultimate load ratio verified against the specification
- Dimensions and finish checked before packing

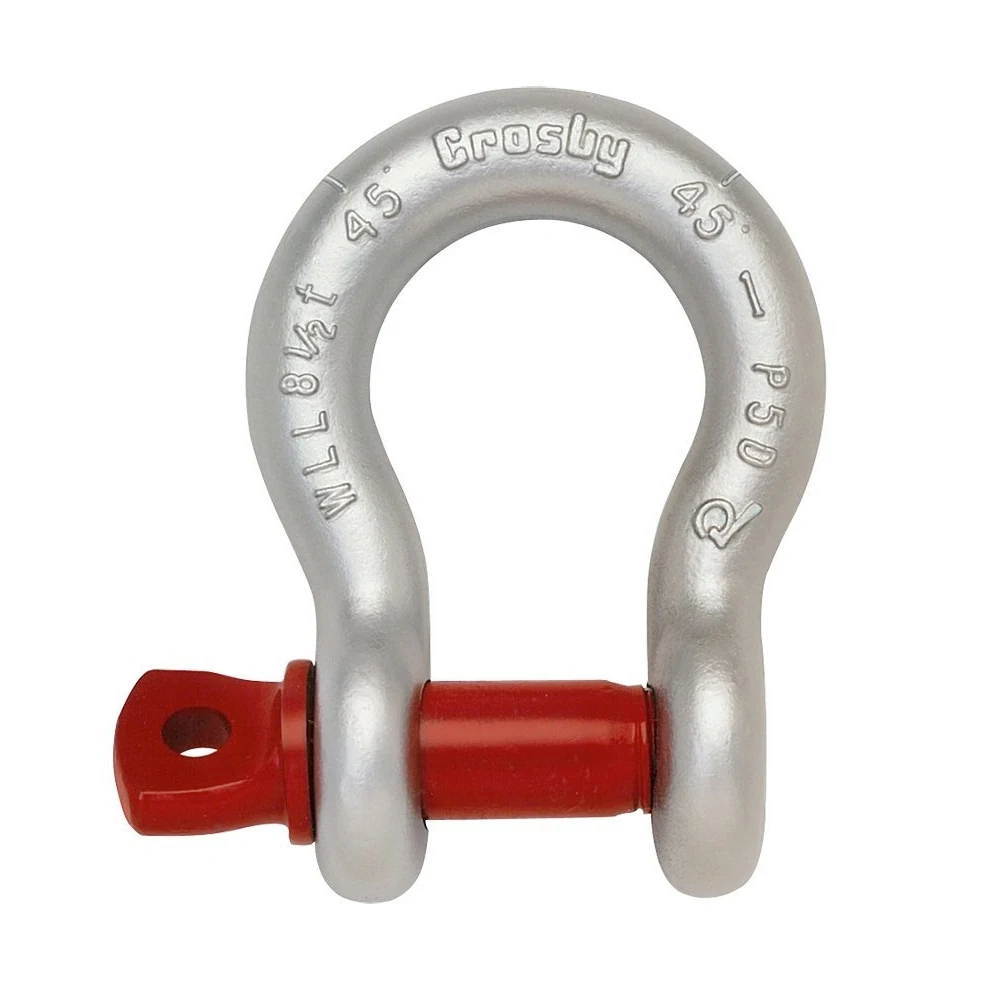

Photographs Of This Product
How It Compares With The Alternatives
Compared with D-type shackle G210
The G209 bow body takes angled and multi-leg loads, the G210 dee body is for two-directional in-line pulls
Compared with American standard G2130 bolt type bow shackle
The G209 screw pin is quicker to connect, the G2130 bolt and nut version is for long-term or permanent installations
How To Use And Maintain It
- Confirm the WLL stamped on the shackle covers your load before use
- Seat the screw pin fully and check it has not backed out during service
- Use Dacromet or powder coating where galvanizing will not survive the environment
- Retire any shackle with a bent pin or damaged threads
What We Need From You To Quote
- Size or diameter, and the grade if it is specified
- Quantity and packing format
- Surface finish for the environment it works in
- Classification society, if a certificate is required
- Destination port for freight
US type G209 Screw Pin Shackle FAQ
What is the working load limit range?
1/2 ton to 55 tons.
Which standards does it meet?
ASTM A153 and Federal Specification RR-C-271F Type IVA.
What are the body and pin made from?
The body is 45# carbon steel and the pin is 40Cr alloy steel, drop forged and heat treated.
What is the ultimate load?
4 times or 6 times the working load limit, depending on the specification ordered.
What finishes are available?
Electro galvanized, hot dip galvanized, Dacromet or powder coated.
What is it used for?
Lifting and connecting, wire rope fittings, chain fittings and marine hardware fittings.
