Pallet Net Wrap
Elastic And Non Elastic Pallet Net Wrap
TSPLAS pallet net wrap comes in two constructions: an elastic net at 9 gsm and a non elastic net at 6.2, 7 and 8 gram per square metre. Manual rolls are 50 cm by 500 m or 1000 m and machine rolls run to 50 cm by 3500 m and 75 cm by 3000 m.
Overview
What This Product Is Built To Do

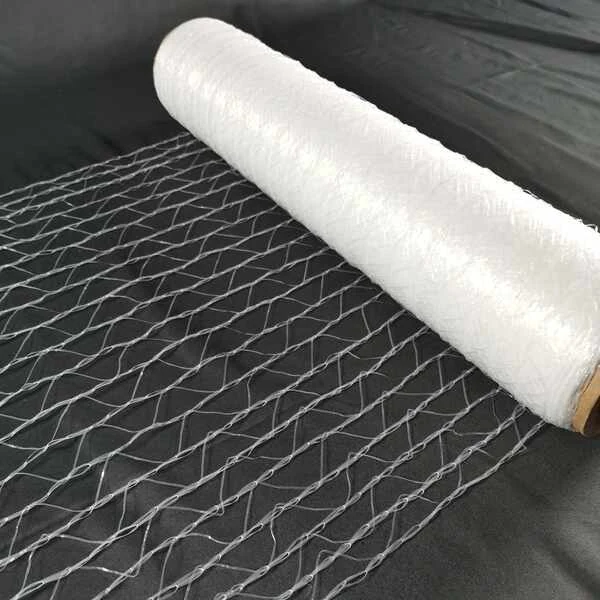

Pallet net wrap holds a load together while letting it breathe, which is the reason packhouses use it on produce that would sweat under solid stretch film. TSPLAS supplies both constructions from the same plant. The elastic net stretches around an uneven load and pulls it in, while the non elastic net holds a fixed geometry for square, stable loads. Both are wound for manual use and for automatic packing machines, and any other width or length is produced to order, including the 45 cm roll used in the Spanish and Portuguese markets.
Key Benefits
- Open mesh lets field heat and condensation escape from fresh produce
- Elastic construction pulls an uneven load together without extra passes
- Machine rolls up to 3500 m so a wrapping line runs longer between changes
- Lower material weight per pallet than solid stretch film
- Two constructions and any size to order from one supplier
Problems It Solves
- Solid film trapping heat and moisture around a fresh load
- Pallets shifting or collapsing in the trailer
- Wrapping lines stopping mid pallet when a short roll runs out
- One supplier only offering one construction, forcing a second source
Who It Is For
- Fresh produce packers and cooperatives
- Firewood and bagged goods shippers
- Contract packing operations
- Packaging distributors serving food and agriculture
Application Scenarios
- Fresh produce pallets leaving a packhouse for a cold chain
- Firewood, bagged goods and drums that need containment not sealing
- Automatic pallet wrapping lines running continuously
- Manual wrapping at a small packing station
Specifications
Published Numbers Not Estimates
Every figure below is the specification we produce to. Anything not listed is quoted against your machine.
| Elastic weight | 9 gsm |
|---|---|
| Non elastic weight | 6.2 g, 7 g and 8 g per square metre |
| Manual sizes | 50 cm x 500 m and 50 cm x 1000 m |
| Machine sizes | 50 cm x 3000 m, 50 cm x 3500 m, 75 cm x 2000 m, 75 cm x 3000 m |
| Iberian market size | 45 cm x 500 m at 12 gsm |
| Application | Manual wrapping and automatic packing machines |
| Custom sizes | Any other size produced to order |
Technical Features
- Elastic net at 9 gsm for conforming containment
- Non elastic net at 6.2, 7 and 8 gram per square metre
- Flexible in wrapping method, suitable for machine and manual application
- Roll widths of 45 cm, 50 cm and 75 cm
- Any other size produced to order
Materials
- Extruded polyethylene net
- Elastic and non elastic constructions
Certifications And Patents
- ISO 9001 certified production facilities
Manufacturing
How It Is Made And Checked
Extrusion
Net forming
Slitting to width
Length controlled winding

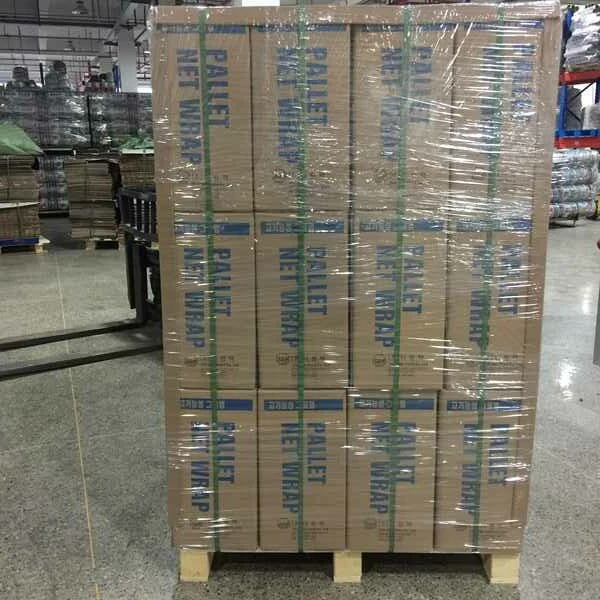

Palletising for export
Quality Control
- Weight per square metre checked against the stated gsm
- Roll length verified at winding for machine rolls
- Stretch recovery checked on the elastic construction
- Core and roll diameter checked for machine compatibility
Customisation Options
- Any width and length to suit your wrapping machine
- Elastic or non elastic construction
- Market specific sizes such as the 45 cm Iberian roll
Downloads
Comparison
How It Compares With The Alternatives
| Solid stretch film | Net lets heat and moisture out of the load, which matters for produce, and uses less material per pallet. |
|---|---|
| Strapping | Net contains the whole outer face of the load rather than a few bands, so small cartons on the pallet edge do not work loose. |
| Bale net wrap | Bale net is engineered for a baler chamber at 48 to 67 inch widths. Pallet net is wound for pallet wrapping machines at 45 to 75 cm. |
Use Guide
Getting The Specification You Paid For
- Choose elastic net for uneven or lightly stacked loads and non elastic for square, stable pallets
- Match the roll length to your machine so roll changes fall between pallets, not mid pallet
- Set the pre stretch on the machine for the construction you are running
- Keep rolls indoors and off a damp floor before use
- Check the first pallet of each new roll for containment before releasing the line
FAQ
Pallet Net Wrap Questions
Which construction should I order?
Elastic net at 9 gsm conforms to an uneven load and pulls it together. Non elastic net at 6.2 to 8 gram holds a fixed geometry and suits square stable pallets.
Do you supply rolls for automatic packing machines?
Yes. Common machine sizes are 50 cm x 3000 m, 50 cm x 3500 m, 75 cm x 2000 m and 75 cm x 3000 m.
Do you make the 45 cm Iberian roll?
Yes, a 45 cm by 500 m roll at 12 gsm is produced for the Spanish and Portuguese markets.
Can I order a width you do not list?
Yes. Any other size is available as a customised production run.
How fast can you produce an order?
Within 20 days, depending on the production plan at the time of order.
