Barbed Wire
Galvanised And PVC Coated Barbed Wire
TSPLAS barbed wire is made from high tensile steel with sharp barbs and a corrosion resistant finish, supplied galvanised or PVC coated. Zinc coating weights run from 60 g to 240 g per square metre, with 1.8 mm a common wire diameter on the heavier coated line.
Overview
What This Product Is Built To Do
A fence is a long term purchase that fails from the outside in. TSPLAS barbed wire starts with high tensile steel so the line holds tension instead of sagging, then adds the corrosion protection the environment calls for: galvanising for general farm and site work, PVC coating where the air is salty or the wire is handled often. Zinc coating weight is the number that decides how many seasons the fence lasts, and we quote it explicitly rather than leaving it to be discovered later.
Key Benefits
- High tensile steel holds line tension so stock do not push through
- Sharp, consistently spaced barbs make each run effective
- Zinc coating quoted by weight so fence life can be specified, not guessed
- Galvanised or PVC coated to match the environment
- Fast to install over long boundary runs
Problems It Solves
- Light coated wire rusting through within a few wet seasons
- Low tensile wire stretching and leaving a sagging line
- Inconsistent barb spacing slowing installation
- Buying wire without knowing the coating weight and finding out too late
Who It Is For
- Ranches and livestock farms
- Fencing contractors
- Construction site perimeter installers
- Hardware and farm store distributors
Application Scenarios
- Ranch and paddock enclosure
- Property and boundary protection
- Construction site isolation
- Perimeter security on industrial sites
Specifications
Published Numbers Not Estimates
Every figure below is the specification we produce to. Anything not listed is quoted against your machine.
| Material | High tensile steel |
|---|---|
| Finish options | Galvanised or PVC coated |

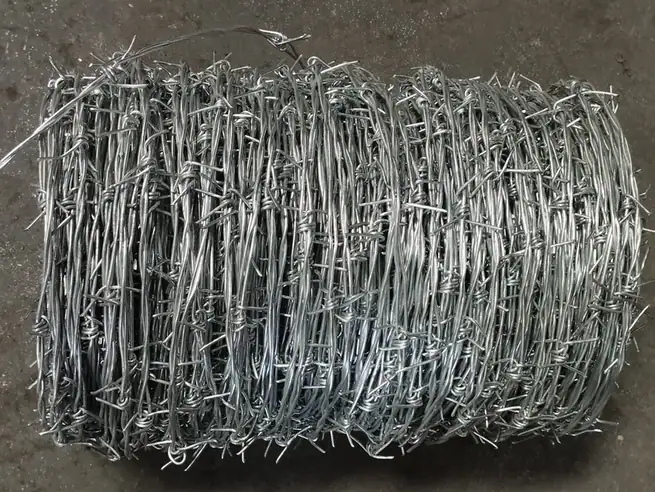

| Zinc coating, light | 60 g per square metre |

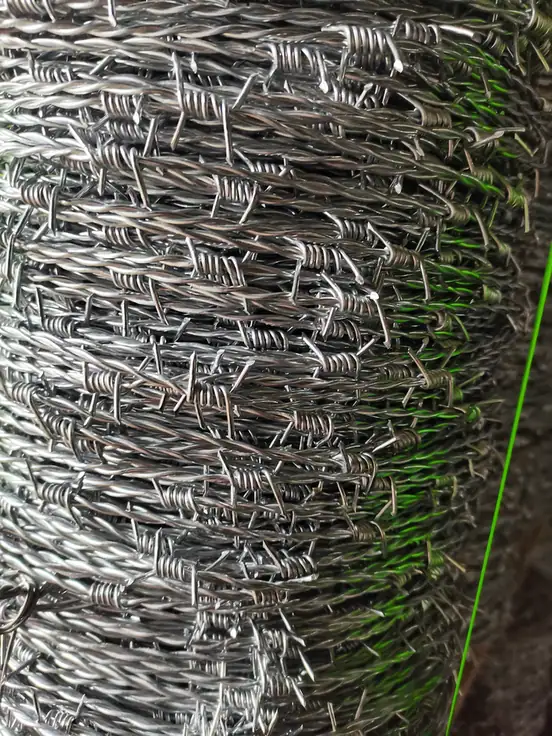

| Zinc coating, heavy | 240 g per square metre |
| Wire diameter | 1.8 mm on the heavier coated line, other diameters to order |
| Packing | Coils, palletised for container loading |
| Applications | Farms, ranches, construction sites and boundary fencing |
Technical Features
- High tensile steel core
- Zinc coating from 60 g to 240 g per square metre
- 1.8 mm diameter available on the heavier coated line
- Galvanised or PVC coated corrosion protection
- Supplied in coils for palletised container shipment
Materials
- High tensile steel wire
- Zinc coating
- PVC coating on request
Certifications And Patents
- ISO 9001 certified production facilities
Manufacturing
How It Is Made And Checked
Wire drawing
Galvanising or PVC coating
Barbing and twisting
Coiling
Palletising for export
Quality Control
- Coating weight checked against the specified g per square metre
- Wire diameter checked against the order specification
- Barb spacing checked along the run
- Coil weight verified before palletising
Customisation Options
- Coating weight to your environment
- Wire diameter to your fence specification
- Coil weight set for your handling and container plan
Comparison
How It Compares With The Alternatives
| Plain high tensile wire | Barbs deter stock from testing the line, so fewer strands are needed for the same containment. |
|---|---|
| Welded mesh fencing | Barbed wire covers long boundary runs at a far lower cost per metre and is much faster to install over uneven ground. |
| Lightly galvanised import wire | A 240 g zinc coating buys years of fence life over a 60 g coating in wet or coastal conditions. |
Use Guide
Getting The Specification You Paid For
- Specify the zinc coating weight for your climate before comparing prices
- Strain the line from solid end assemblies and use stays on long runs
- Wear gauntlets and use a proper wire spinner when running out coils
- Keep coils dry and off the ground in store
- Inspect and retension the line after the first season
FAQ
Barbed Wire Questions
What zinc coating should I specify?
60 g per square metre suits dry inland fencing. 240 g is specified where the air is wet or coastal and the fence has to last.
What diameters do you produce?
1.8 mm is common on the heavier coated line and other diameters are produced to order. Send your fence specification with the enquiry.
Galvanised or PVC coated?
Galvanised for general farm and site fencing, PVC coated where there is salt in the air or the wire will be handled often.

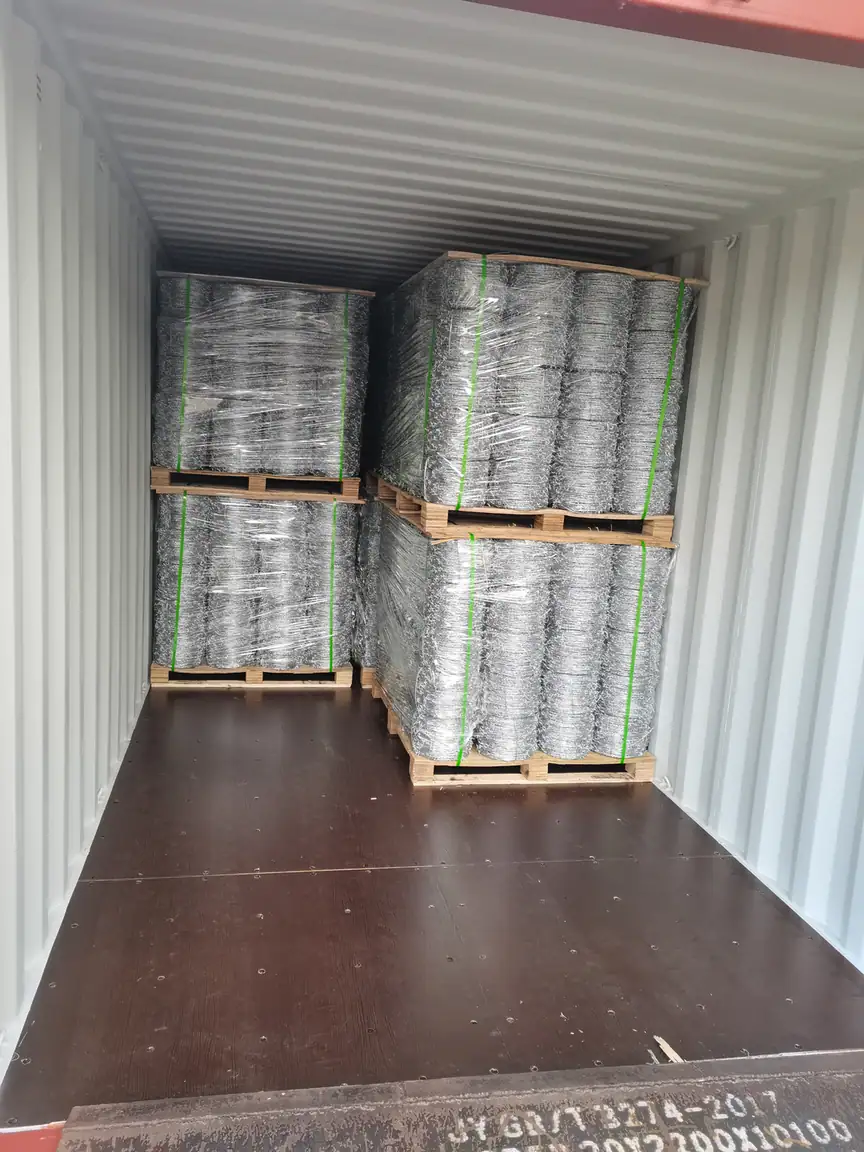

How is it packed for export?
In coils, palletised and loaded into containers, with coil weight confirmed at quotation so the load can be planned.
Do you supply fencing contractors directly?
Yes. There is no minimum order quantity, so a contractor can order for a single project or for a season of work.
