Washing Nozzle
A washing nozzle delivers a focused spray pattern to clean surfaces, parts, or materials in industrial processes where consistent coverage and impact are required. This CNSS washing nozzle is designed for applications such as paper machine roll cleaning, surface treatment lines, and parts washing, where a reliable, repeatable spray is needed to remove residue without damaging the target. The nozzle's construction supports continuous operation under moderate pressure and varying media conditions.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Designed for consistent cleaning performance across repeated cycles in industrial wash lines

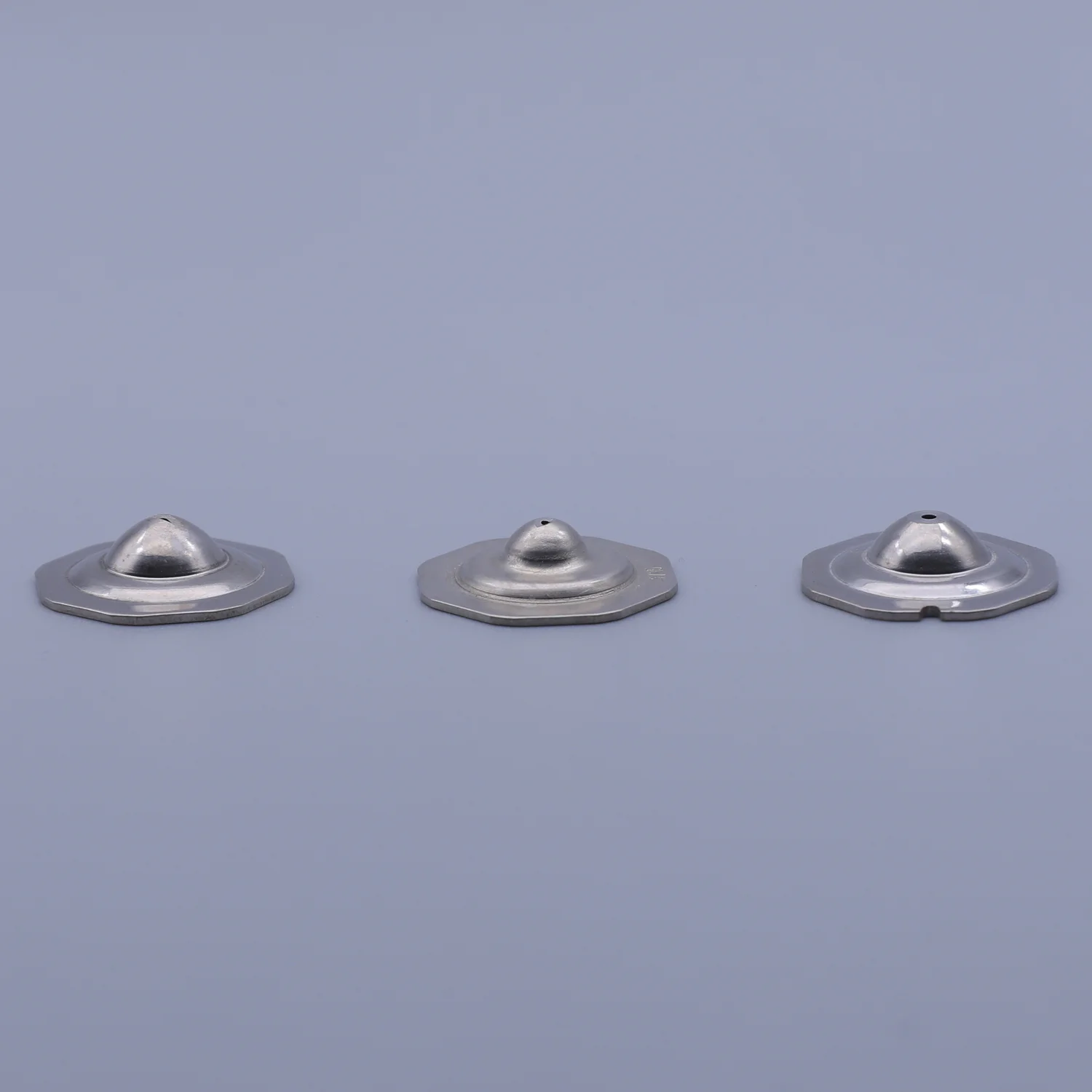

- Dome-shaped top and central orifice allow for even distribution of spray over a defined area
- Octagonal flange provides secure mounting and alignment on a header or fixture
- Metallic construction supports moderate pressure and temperature in wash duty
- Self-cleaning feature helps maintain orifice integrity when used with recirculated or particulate-laden water
- Ready for integration into existing wash systems with standard mounting features
Application Scenarios
Where It Is Installed
- Cleaning paper machine rolls where scale or fiber buildup must be removed between runs
- Surface treatment lines requiring a steady spray to remove oil, dust, or residue from parts
- Parts washing systems where a consistent spray pattern ensures complete cleaning without over-spray
- Industrial wash stations where a durable nozzle resists clogging and wear over time
- Maintenance operations needing a reliable replacement for worn or damaged nozzles in a fixed spray setup
Who It Is For
Buyers Who Specify It
- Maintenance managers replacing nozzles in paper machine cleaning systems
- Plant engineers specifying nozzles for surface treatment or parts washing lines
- OEM machine builders integrating wash nozzles into automated cleaning equipment
- Process engineers troubleshooting inconsistent cleaning performance in a wash station
- Facility managers sourcing durable, low-maintenance nozzles for high-cycle wash applications
Problems It Solves
What It Fixes on the Line
- Inconsistent cleaning due to clogged or worn nozzles in high-frequency wash lines
- Misalignment of spray pattern caused by loose or poorly mounted nozzles
- Frequent downtime from nozzle failure in continuous wash systems
- Difficulty in maintaining orifice integrity when using water with suspended solids
- Lack of standard mounting features that force custom fabrication or adapters
Technical Features
How It Is Built

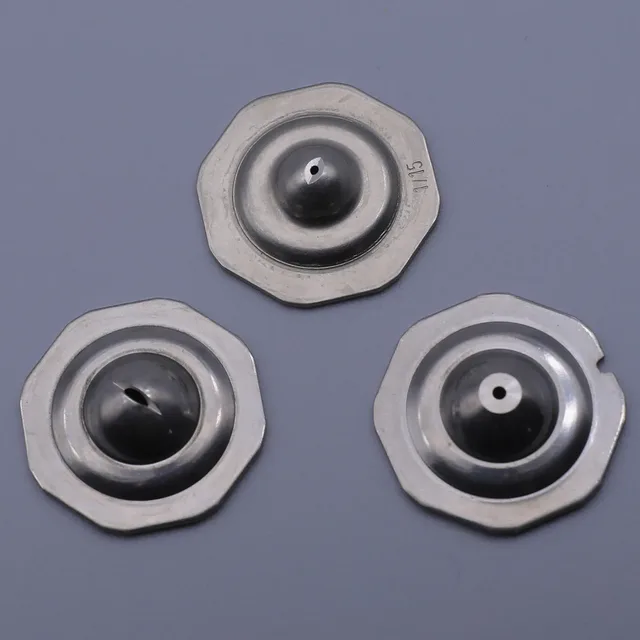

- Dome-shaped top with central orifice for focused spray delivery
- Octagonal flange for secure and repeatable mounting on a header or fixture
- One piece metallic construction with no internal parts to separate or wear
- Self-cleaning design reduces risk of orifice blockage during continuous operation
- Metallic body supports moderate pressure and temperature in wash service
- Nozzle is designed for direct replacement in existing wash system installations
Materials
Body Materials and Where Each One Suits
Manufacturing Process
How the Part Is Made
- Material selection based on the duty described by the customer
- Machining of the body and orifice to the specified geometry
- Inspection of orifice size and spray pattern
- Packaging for safe handling and transport
- Final inspection before shipment
Quality Control
What Is Checked Before It Ships
- Raw material is selected from brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard parts can be customised to drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Full cone nozzle | A full cone provides radial coverage suitable for tank filling or gas cooling, but lacks the focused line pattern needed for roll or surface cleaning |
|---|---|
| Hollow cone nozzle | A hollow cone delivers finer droplets in a ring pattern, better for gas scrubbing, but not suited for targeted surface cleaning |
| Flat fan nozzle | A flat fan creates a linear spray ideal for conveyor or strip cleaning, but the washing nozzle’s dome design offers better self-cleaning in particulate-laden water |
| Spiral nozzle | A spiral passes solids more easily due to external vane design, but its conical spray pattern is not ideal for even surface coverage in a wash line |
Use Guide
Fitting and Running It
- Confirm the required spray pattern and coverage area before selecting the nozzle
- Ensure the mounting flange matches the existing header or fixture
- Inspect the orifice regularly for signs of wear or blockage, especially when using recirculated water
- Align the nozzle so the spray hits the target surface at the correct angle for maximum cleaning effect
- Use a filter or strainer when the water source contains suspended solids
- Replace the nozzle if cleaning performance degrades or the spray pattern becomes uneven
Questions Buyers Ask
Washing Nozzle Questions
What is the spray pattern and coverage of this washing nozzle?
The washing nozzle delivers a focused spray from a central orifice with a dome-shaped top. The exact spray pattern and coverage are confirmed based on the customer's duty and mounting requirements.
Which materials are available for this washing nozzle?
The washing nozzle is available in brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel. The material is selected based on the operating conditions such as temperature, pressure, and media.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and samples can be ready within 10 days.
Do you accept OEM orders and custom designs?
Yes. Standard and non-standard nozzles can be made to your drawing under an OEM order, including customer marking.
What is the quality guarantee for this washing nozzle?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send a photo and service conditions by email for assessment.
What are your payment terms?
The product listing states T/T 100% in advance. Send the model, quantity, and destination port by email to confirm the terms for your order.
How is the nozzle mounted on a system?
The washing nozzle features an octagonal flange for secure and repeatable mounting on a header or fixture. Ensure the flange matches the existing mounting standard.
Related Products
Others in the Paper Making Nozzle
Ask About Washing Nozzle
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
