Paper Making Nozzle
Paper Making Trim Cutting Nozzle
A paper making trim cutting nozzle delivers a focused double jet stream to cut paper trim at high speed without damaging the main web. This CNSS nozzle is designed for precision trimming in paper machine sections where edge integrity and consistent cut quality are critical. The nozzle uses a single orifice ruby trim cutter design to maintain alignment and minimize wear during continuous operation.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Double jet stream provides clean, precise trim cutting without web distortion
- Single orifice ruby tip maintains consistent alignment and reduces wear
- Stainless steel body resists corrosion in humid paper mill environments

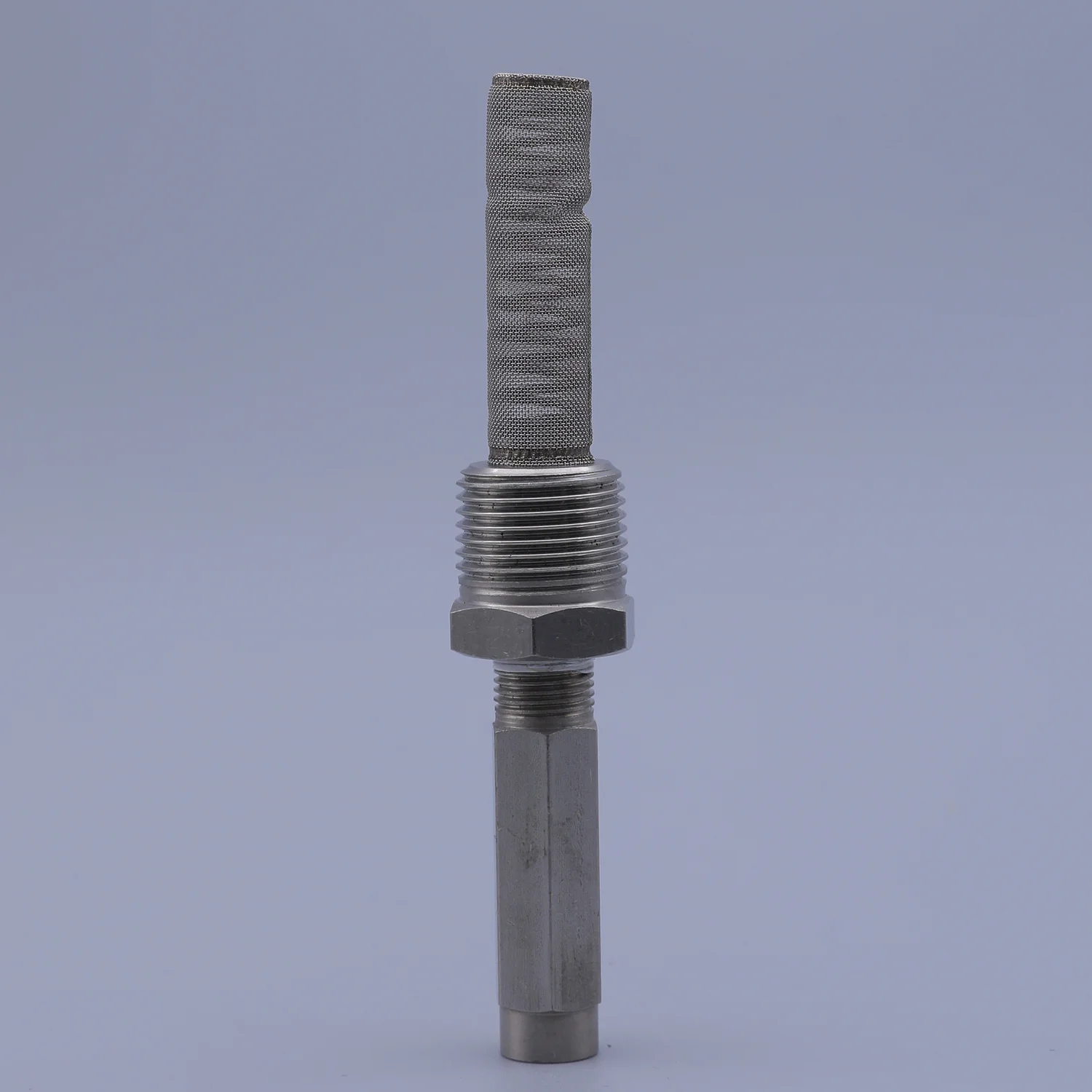

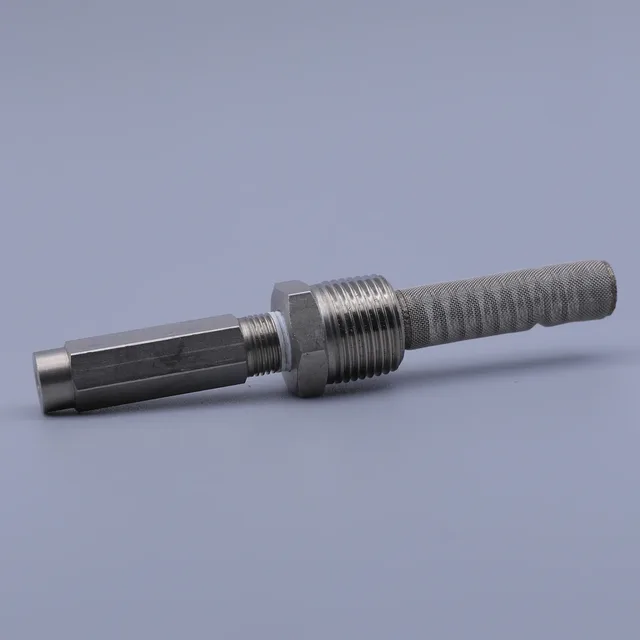

- Threaded sensor probe design allows for easy mounting and alignment on trim cutters
- Knurled handle and hex nut enable manual adjustment during setup and maintenance
- Free trial samples available to verify performance before full deployment
Application Scenarios
Where It Is Installed
- Trim cutting on high-speed paper machines where edge quality affects final product
- Maintenance teams replacing worn trim cutters with a nozzle that resists clogging and wear
- Paper mill upgrades requiring a reliable, low-maintenance nozzle for continuous operation
- OEM integrators specifying a trim cutter nozzle with consistent orifice geometry
- Production lines with frequent changeovers needing quick nozzle replacement and alignment
Who It Is For
Buyers Who Specify It
- Paper mill maintenance engineers replacing trim cutter nozzles on a production line
- Machine builders integrating trim cutting nozzles into new paper machine sections
- Process engineers optimizing trim cut quality and reducing web waste
- OEMs sourcing a standardized trim cutter nozzle for multiple machine models
- Plant managers seeking a durable nozzle with minimal downtime for trim cutting
Problems It Solves
What It Fixes on the Line
- Inconsistent trim cuts that result in web damage or edge curling
- Difficult alignment of trim cutters due to poor mounting design
- Clogging in the orifice from paper fibers or debris during long runs
- High maintenance frequency due to loose or misaligned nozzles on the trim cutter
Technical Features
How It Is Built
- Double jet stream delivered through a single orifice ruby tip
- Threaded sensor probe body with hex nut for secure mounting
- Knurled mesh tip for precise manual adjustment during setup
- One piece construction with no internal parts to loosen
- Designed for high-speed, continuous operation in paper machine environments
- No internal filter or strainer; intended for clean water or low particulate service
Materials
Body Materials and Where Each One Suits
- Stainless steel body for resistance to moisture and mild chemical exposure
- Ruby orifice for high wear resistance in high-speed cutting applications
Manufacturing Process
How the Part Is Made
- Material selection based on the duty environment and expected wear
- Machining of the threaded probe and knurled handle
- Installation of the single orifice ruby tip
- Inspection of orifice alignment and jet symmetry
- Packaging and transportation with protective casing
Quality Control
What Is Checked Before It Ships
- Raw material is selected from brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every product is tested before it ships
- Quality controlled at material selection, manufacturing, inspection, packaging and transportation
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard parts can be customised to drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Standard flat fan nozzle | A flat fan nozzle spreads spray across a surface, while this trim cutting nozzle delivers a focused double jet for precise edge cutting |
|---|---|
| Hollow cone nozzle | A hollow cone provides even droplet distribution over a circular area, but lacks the focused jet needed for clean trim cutting |
| Spiral nozzle | A spiral nozzle handles solids better but is not designed for precision cutting or alignment in trim applications |
| Paper making nozzle with filter | Filtered nozzles prevent clogging but are not suitable for high-speed cutting where orifice clarity is critical |
Use Guide
Fitting and Running It
- Confirm the required jet alignment and standoff distance before installation
- Use the knurled handle to adjust the nozzle position during setup
- Ensure the ruby tip is aligned with the paper web edge to avoid miscuts
- Inspect the orifice regularly for wear or debris after extended operation
- Replace the nozzle when cut quality degrades or alignment shifts
- Mount the nozzle using the threaded sensor probe to maintain consistent positioning
Questions Buyers Ask
Paper Making Trim Cutting Nozzle Questions
What is the purpose of this nozzle in a paper machine?
The Paper Making Trim Cutting Nozzle delivers a double jet stream through a single orifice ruby tip to cut paper trim cleanly without damaging the main web.
Which materials are used in this nozzle?
The body is made from stainless steel, and the orifice uses a ruby tip for high wear resistance in high-speed cutting applications.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are available within 10 days.
Do you accept OEM orders and custom designs?
Yes. Standard and non-standard parts can be customised to your drawing, and OEM orders are accepted.
What is the quality guarantee for this product?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send us the photo and operating conditions for assessment.
What are your payment terms?
The product listing states T/T 100% in advance. Send the model, quantity, and destination port by email to confirm the terms.
How is this nozzle mounted and adjusted?
The nozzle uses a threaded sensor probe with a hex nut and knurled handle, allowing for secure mounting and manual adjustment during setup.
Related Products
Others in the Paper Making Nozzle
Ask About Paper Making Trim Cutting Nozzle
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
