Misting System Accessories
Push Lock Fitting
A push lock fitting connects a low pressure misting nozzle to a tubing system with a secure, tool-free connection, which is essential when setting up a misting system for cooling, humidification or light washing where quick assembly and leak-free operation are required.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Tool-free installation reduces setup time on misting lines and maintenance access points
- Secure connection prevents dislodgement under vibration or pressure fluctuations
- Silver metal body resists corrosion in humid or outdoor environments

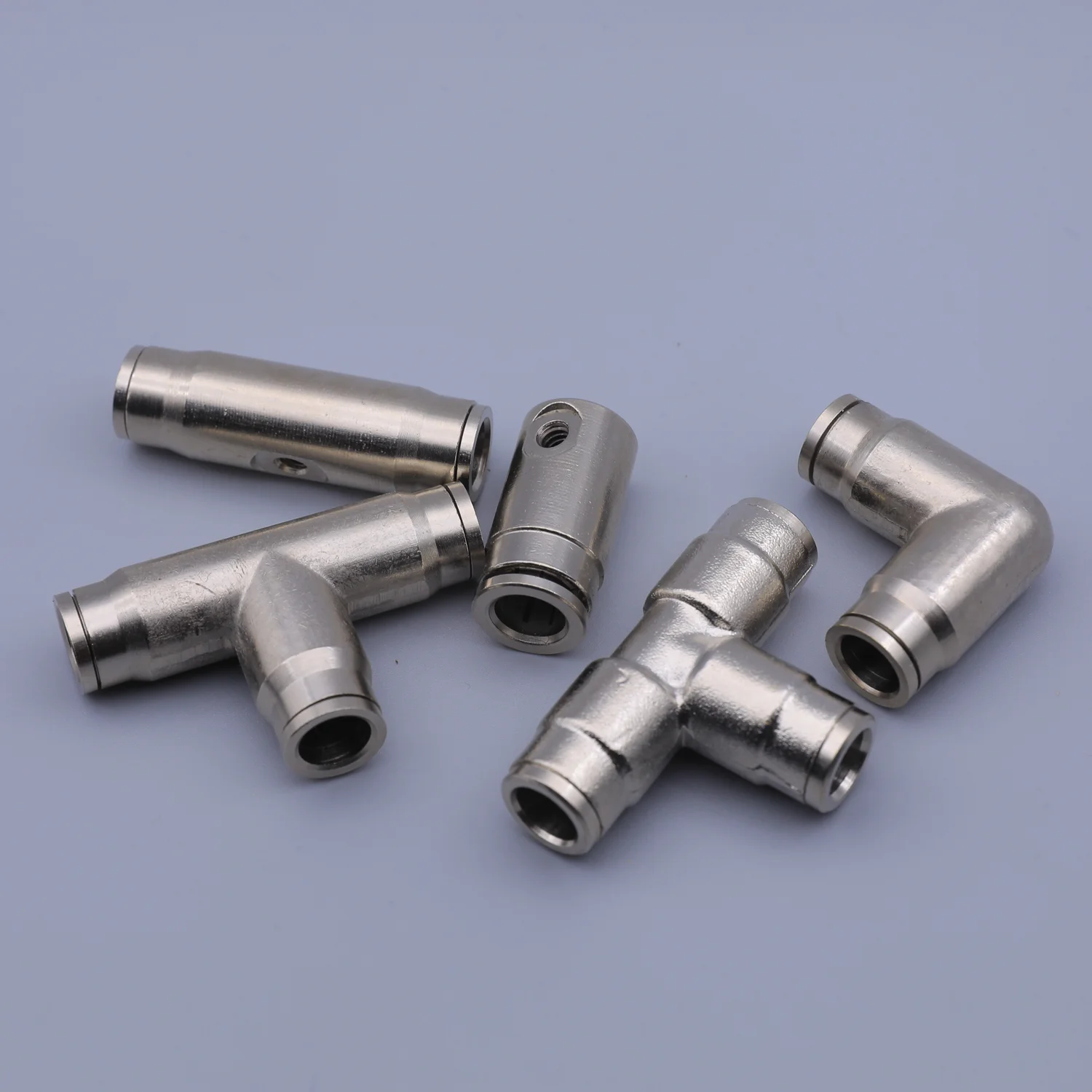

- Available in straight, elbow and tee configurations to match system layout
- Reduces the risk of leaks compared to threaded or clamped fittings on small bore lines
Application Scenarios
Where It Is Installed
- Installing a greenhouse fog system where multiple nozzles need rapid connection to a manifold
- Setting up a livestock barn misting line for temperature control with frequent access for cleaning
- Building a low pressure washing station for dish or part cleaning using flexible tubing
- Connecting misting nozzles in an outdoor cooling system where weather exposure is expected
- Retrofitting a misting system on an existing pipe network without welding or threading
Who It Is For
Buyers Who Specify It
- Maintenance teams installing or repairing misting systems in greenhouses or barns
- System integrators building low pressure misting lines for cooling or humidification
- OEMs incorporating misting nozzles into machines with flexible tubing runs
- Facility managers upgrading cooling or humidity control with modular fittings
- Distributors stocking accessories for misting system kits
Problems It Solves
What It Fixes on the Line
- Leakage at connections caused by loose or improperly tightened threaded fittings
- Long setup times when using clamps or tools to secure tubing on small bore lines
- Fittings that fail under vibration in mobile or outdoor misting systems
- Incompatibility between tubing size and fitting when using off-the-shelf components
- Difficulty in accessing connections for maintenance due to tight spaces or fixed joints
Technical Features
How It Is Built
- Push-to-connect design allows tubing to be inserted and locked in place without tools
- Elbow and tee configurations available for branching or directional changes in tubing
- No internal parts that can loosen or wear over time
- Designed for low pressure applications where high flow or high pressure is not required
- Compatible with standard flexible tubing used in misting systems
Materials
Body Materials and Where Each One Suits
- Silver metal body for corrosion resistance and durability in humid or outdoor conditions
Manufacturing Process
How the Part Is Made
- Material selection based on the intended environment and tubing size
- Machining of the fitting body and internal sealing channel
- Inspection of the internal bore and sealing surface
- Packaging and labeling for shipment
Quality Control
What Is Checked Before It Ships
- Raw material is selected from brass, 303 stainless steel, 304 stainless steel and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non standard fittings can be made to drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Threaded fitting | A threaded fitting requires tools and sealant, increasing setup time and risk of leaks, while a push lock fitting allows tool-free connection and faster assembly |
|---|---|
| Clamp fitting | A clamp fitting needs a tool and can loosen over time, whereas a push lock fitting locks in place with a single push and maintains a consistent seal |
| Compression fitting | A compression fitting requires a ferrule and wrench, while a push lock fitting uses a simple push and snap mechanism for quick installation |
| Soldered joint | A soldered joint is permanent and not reusable, but a push lock fitting allows for disassembly and reconfiguration without damage to the tubing |
Use Guide
Fitting and Running It
- Insert the tubing fully into the fitting until it stops to ensure a secure lock
- Check the connection by pulling gently on the tubing to confirm it does not come loose
- Use the elbow or tee variant to route the line around corners or split the flow
- Inspect the fitting periodically for signs of wear or leakage, especially in outdoor installations
- Replace the fitting if the internal seal shows signs of damage or if the connection becomes loose
Questions Buyers Ask
Push Lock Fitting Questions
What tubing sizes are compatible with this push lock fitting?
Confirm your tubing size before ordering.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and samples can be ready within 10 days.
Do you accept small orders and OEM marking?
Yes. Small volume orders are accepted, and standard or non standard fittings can be made to your drawing under an OEM order.
What material is used in the push lock fitting?
The push lock fitting is made from silver metal, selected for durability and corrosion resistance in humid or outdoor environments.
What is the pressure rating for this fitting?
The fitting is designed for low pressure applications. The exact pressure limit is confirmed on enquiry based on the application and tubing used.
What happens if a fitting fails in service?
A 3 month quality guarantee is given on the product. Send us the fitting and the service conditions by email and we will assess the failure.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity and destination port by email and we will confirm the terms for your order.
