Misting Nozzle
LN Misting Nozzle

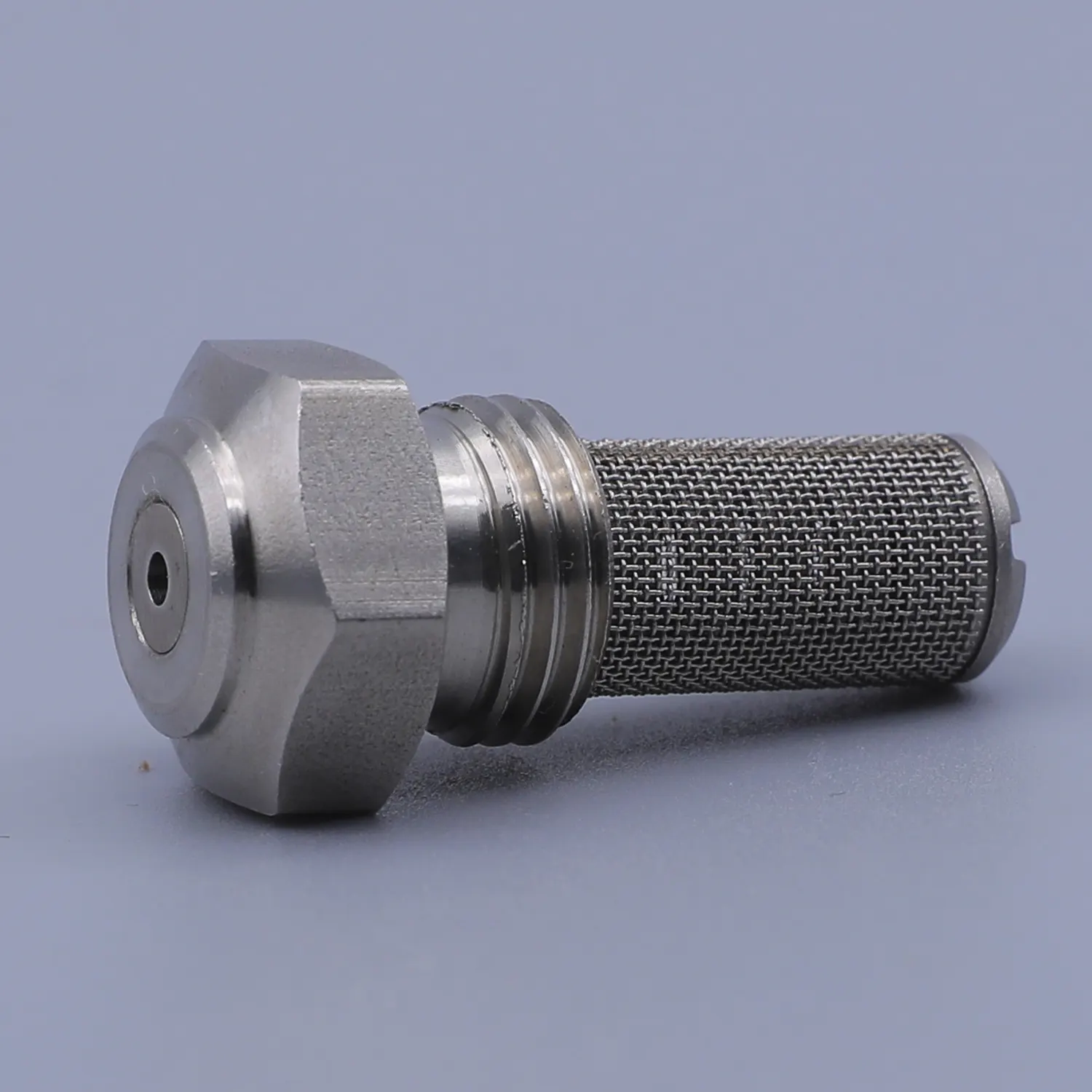

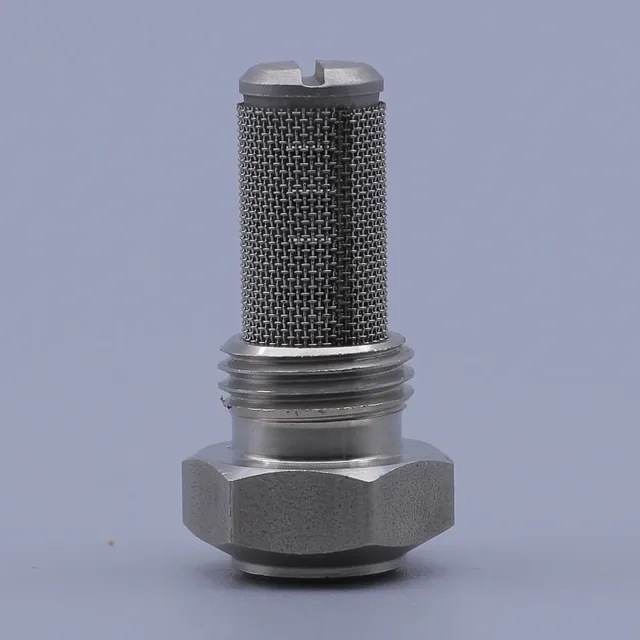

A misting nozzle delivers a fine, uniform fog of liquid across a large area, which is required when cooling, humidifying, or cleaning in open or semi-enclosed spaces. This CNSS LN misting nozzle is designed for low to high pressure misting systems where consistent droplet distribution and resistance to clogging are critical. The design features a threaded neck and a cylindrical wire mesh filter to protect the orifice from particulates in the supply water.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Cylindrical wire mesh filter reduces clogging in recirculated or dirty water lines
- Stainless steel construction resists corrosion in humid or outdoor environments
- Threaded neck allows direct fitting into standard misting system manifolds
- Hex nut enables secure hand tightening without tools during installation
- Compact design fits into tight spaces within misting headers and arrays
- Free trial samples available to verify performance before bulk ordering
Application Scenarios
Where It Is Installed
- Outdoor cooling systems in warehouses or livestock barns where uniform fog coverage is needed
- Humidification in greenhouses where consistent moisture levels support plant growth
- Dust suppression in material handling areas with open conveyors or transfer points
- Cleaning of large surfaces such as walls, floors, or equipment in industrial workshops
- Misting lines in textile processing where fine water droplets must not damage fabric
Who It Is For
Buyers Who Specify It
- Maintenance managers specifying nozzles for existing misting or fog systems
- System integrators designing cooling or humidification installations for agriculture or industry
- Plant engineers replacing clogged or worn nozzles in outdoor or high humidity environments
- OEMs building misting systems for HVAC, agriculture, or material handling equipment
- Procurement teams sourcing reliable nozzles for high-volume or long-term projects
Problems It Solves
What It Fixes on the Line
- Clogging of nozzles due to particulates in supply water or recirculated systems
- Inconsistent fog patterns caused by partial or complete orifice blockage
- Loose fittings in misting headers that lead to leaks or misalignment
- Difficulty in installing nozzles in tight or confined spaces without tools
- Short service life of plastic or non-stainless components in humid or corrosive conditions
Technical Features
How It Is Built
- One piece stainless steel construction with no internal parts to loosen
- Cylindrical wire mesh filter integrated into the neck section to trap debris
- Threaded neck allows direct connection to standard misting system piping
- Hex nut design enables hand tightening during installation and maintenance
- No internal seals or gaskets that can degrade over time in humid environments
- Filter section is accessible for cleaning without removing the entire nozzle
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general misting duty in clean water systems
- 316 stainless steel where chlorides or higher corrosion resistance is required
- Brass for low cost applications in clean, non-aggressive water service
Manufacturing Process
How the Part Is Made
- Material selection based on the customer's water quality and environmental conditions
- Machining of the threaded neck and hex nut to precise tolerances
- Assembly of the cylindrical wire mesh filter into the neck section
- Inspection of the filter integrity and orifice alignment
- Packaging in protective containers to prevent damage during transit
- Final testing of the complete nozzle before shipment
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawing
- OEM orders accepted including customer marking and packaging
- Filter mesh size can be specified upon enquiry
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
Comparison
How It Compares With the Alternatives
| Full cone nozzle | A full cone provides a circular spray pattern suitable for tank filling or gas cooling, but it does not deliver the uniform linear coverage needed in misting systems for large open areas |
|---|---|
| Hollow cone nozzle | A hollow cone produces a ring-shaped spray with finer droplets, better for gas scrubbing, but it lacks the even distribution across a wide plane that a misting nozzle provides |
| Spiral nozzle | A spiral nozzle passes solids more easily due to its external vane, but its conical spray pattern is not suitable for even coverage in flat or wide misting applications |
| Misting nozzle with plastic body | Plastic bodies are lighter and lower cost, but they degrade faster in UV exposure or high humidity; stainless steel offers longer service life in outdoor or harsh environments |
Use Guide
Fitting and Running It
- Confirm the supply water quality and pressure before selecting the nozzle
- Inspect the filter regularly and clean it when flow rate drops or droplet size increases
- Ensure the thread standard matches the existing manifold before installation
- Tighten the hex nut by hand to avoid over-tightening and damaging the threads
- Replace the nozzle if the filter is damaged or the orifice shows signs of wear
- Use a strainer upstream if the water source contains high levels of particulates
Questions Buyers Ask
LN Misting Nozzle Questions
What materials are available for this LN misting nozzle?
The LN misting nozzle is available in 303 stainless steel, 316 stainless steel, and brass. Choose 303SS for general use, 316SS for corrosive environments, and brass for clean water applications.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept OEM orders and small volume purchases?
Yes. Small volume orders are accepted, and standard or non-standard nozzles can be made to your drawing under an OEM order.
What is the filter made of and can it be cleaned?
The filter is a cylindrical wire mesh section integrated into the neck. It can be removed and cleaned manually to restore flow.
What happens if the nozzle fails in service?
A 3 month quality guarantee is given on the product. Send us the nozzle photo and the service conditions by email and we will assess the wear pattern.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity and destination port by email and we will confirm the terms for your order.
How do I install the nozzle without tools?
The hex nut allows hand tightening during installation. Simply thread the nozzle into the manifold and tighten with your fingers until secure.
