Misting Nozzle
Misting Nozzle with Fitting
A misting nozzle with fitting delivers a fine, evenly distributed fog of liquid across a large area, which is required when cooling, humidifying, or cleaning in large open spaces or enclosed environments. This CNSS misting nozzle range is designed for low and high pressure systems and includes a T-shaped fitting that connects directly to tubing or piping, reducing the need for additional adapters. The system is suitable for applications where a consistent, non-drip spray pattern is needed over a wide footprint.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- T-shaped fitting allows direct connection to tubing without extra adapters
- Fine mist pattern provides even coverage over large or irregular surfaces
- Nozzle and fitting are integrated to reduce assembly steps and leakage risk
- Suitable for both low and high pressure misting systems
- Knurled grip on the fitting improves handling during installation and adjustment
- Free trial samples available to verify spray pattern and fit before bulk order
Application Scenarios
Where It Is Installed
- Outdoor cooling in warehouses or loading docks where a fine fog reduces ambient temperature
- Humidification in greenhouses or livestock barns to maintain consistent moisture levels
- Dust suppression in large open areas such as mining yards or material storage zones
- Cleaning and rinsing in large industrial spaces where a non-contact spray is needed
- Misting systems in textile workshops to control static and maintain fiber moisture
Who It Is For
Buyers Who Specify It
- Maintenance teams installing or replacing misting systems in large facilities
- HVAC and environmental control engineers specifying fog distribution for cooling or humidification
- Farm and greenhouse operators managing climate control in large enclosed areas
- OEMs building misting systems for industrial or agricultural equipment
- Facility managers upgrading cooling or dust control systems with minimal downtime
Problems It Solves
What It Fixes on the Line
- Inconsistent fog coverage due to poor fitting or misalignment between nozzle and pipe
- Leakage at connection points caused by loose or mismatched fittings
- High installation time from assembling multiple parts and adapters
- Drip or uneven spray from nozzles not properly seated in the fitting
- Difficulty adjusting spray direction when the nozzle is not integrated with the fitting
Technical Features
How It Is Built

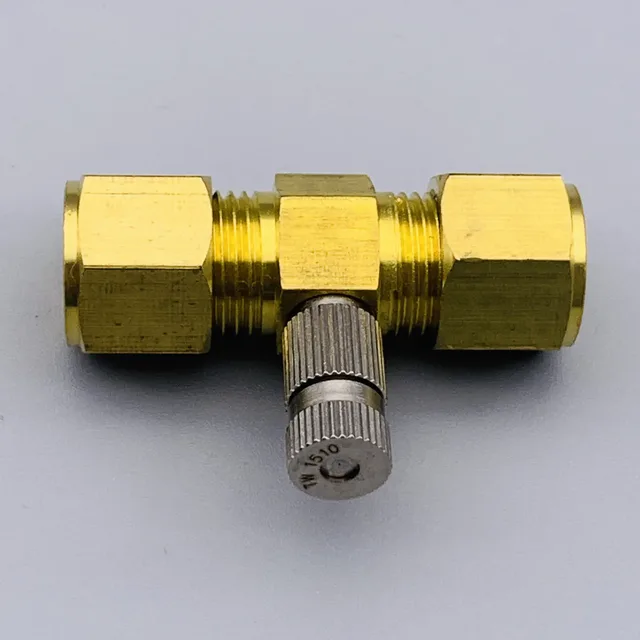

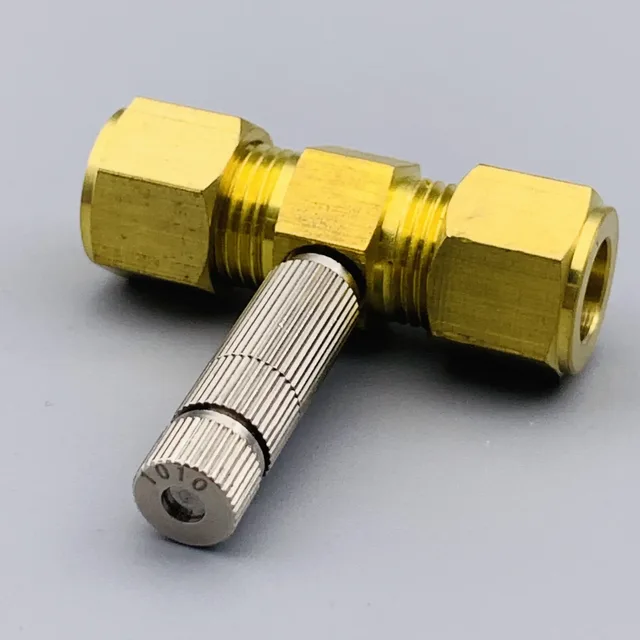

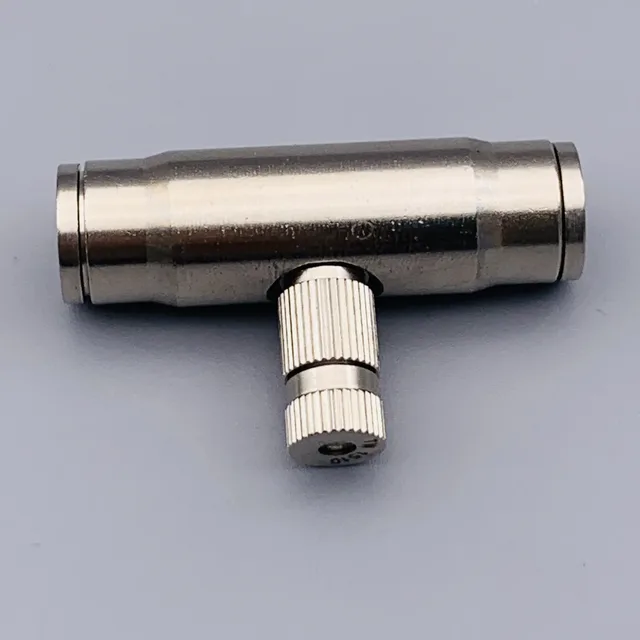

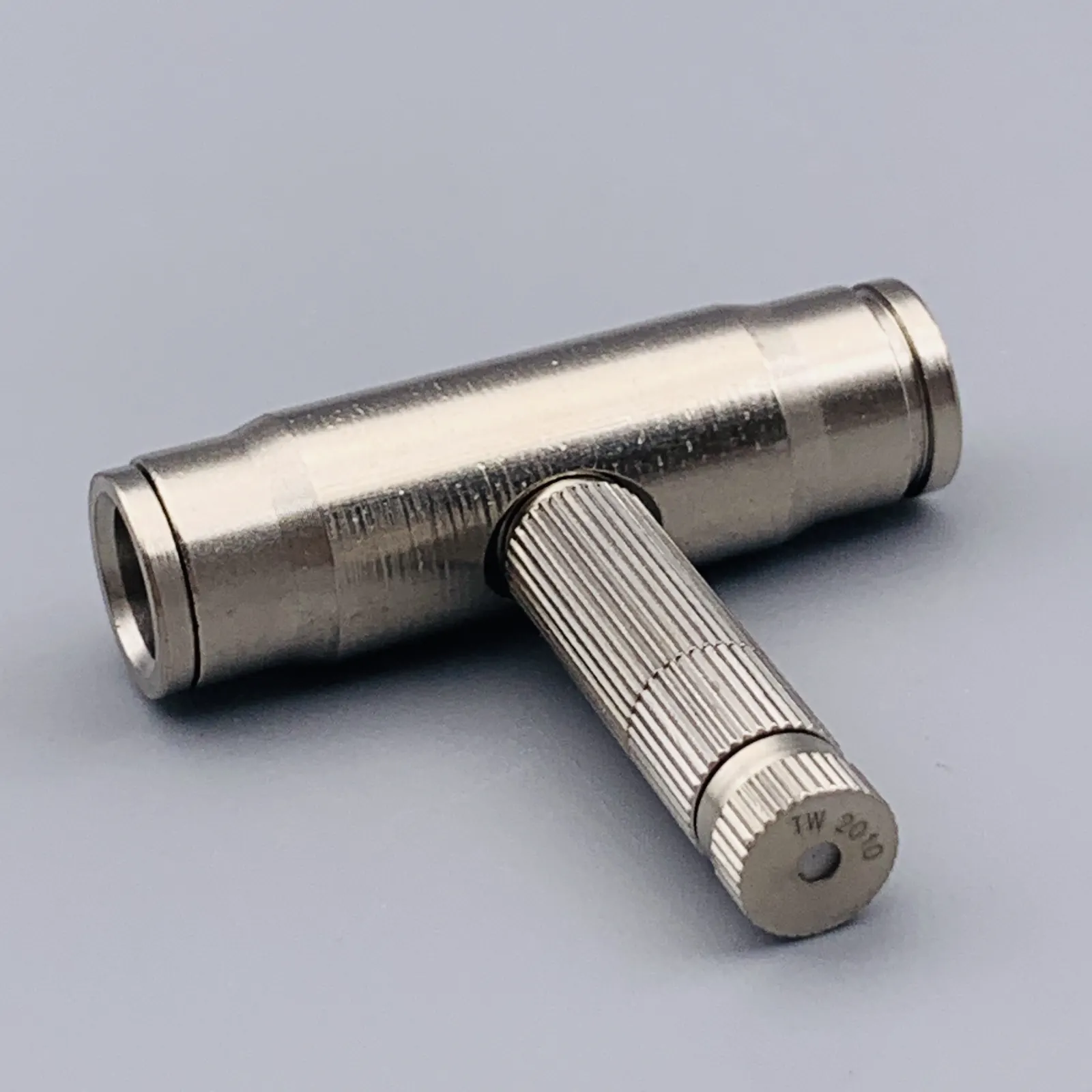

- Integrated T-shaped fitting with knurled grip for secure hand-tightening
- Nozzle and fitting are designed as a single unit to prevent misalignment
- Coaxial design allows for smooth fluid flow with minimal pressure drop
- Silver metallic and brass components used in the fitting for durability and corrosion resistance
- Central port accepts tubing or pipe directly, reducing the need for additional couplings
- No internal seals or O-rings to wear out or leak over time
Materials
Body Materials and Where Each One Suits
- Brass used in the T-fitting for strength and resistance to moderate pressure
- Silver metal components in the fitting for wear resistance and visual clarity
- No plastic or polymer materials used in this specific model based on source data
Manufacturing Process
How the Part Is Made
- Material selection based on the intended pressure and environment
- Machining of the T-fitting and nozzle body
- Assembly of the nozzle into the fitting
- Inspection of the fit and alignment
- Packaging and shipping
Quality Control
What Is Checked Before It Ships
- Raw material is selected from brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every product is tested before it ships
- Quality controlled at material selection, manufacturing, inspection, packaging, and transportation
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard parts can be customised to drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Separate nozzle and fitting assembly | A separate nozzle and fitting require alignment and additional sealing, increasing leak risk and installation time. The integrated design reduces both |
|---|---|
| Spiral nozzle with external vane | Spiral nozzles handle solids better but are not designed for fine mist distribution. This model is optimized for consistent fog coverage |
| Full cone nozzle | A full cone creates a circular spray pattern, which is not ideal for wide linear coverage. This T-fitting model supports even distribution across large areas |
| Hollow cone nozzle | Hollow cone nozzles produce a ring pattern with finer droplets, but lack the broad, even coverage needed for misting systems |
Use Guide
Fitting and Running It
- Confirm the system pressure and tubing size before selecting the fitting
- Ensure the central port of the T-fitting matches the diameter of the connected tubing
- Tighten the fitting by hand with the knurled grip to avoid over-tightening
- Check for leaks after initial installation under operating pressure
- Inspect the nozzle orifice for clogging if the spray pattern becomes uneven
- Use a clean fluid source to prevent blockage in the fine internal passages
Questions Buyers Ask
Misting Nozzle with Fitting Questions
What is the thread size and connection type for this fitting?
The thread size and connection type are confirmed on enquiry. Dimensions are based on the customer's drawing or duty sheet.
Which materials are used in the nozzle and fitting?
The fitting is made from brass and silver metal components. The body material is selected based on the application and duty.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and samples can be ready within 10 days.
Do you accept OEM orders and custom designs?
Yes. Standard and non-standard parts can be customised to drawing. OEM orders are accepted including customer marking.
What is the quality guarantee for this product?
A 3 month quality guarantee is given on the product. Send us the nozzle photo and service conditions by email for assessment.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity, and destination port by email to confirm terms.
Is this nozzle suitable for high pressure systems?
Yes. This misting nozzle with fitting is designed for both low and high pressure misting systems. Confirm the operating pressure with the supplier before use.
Related Products
Others in the Misting Nozzle
Go Deeper
Industries Guides and Ways to Order
Ask About Misting Nozzle with Fitting
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
