Paper Making Nozzle

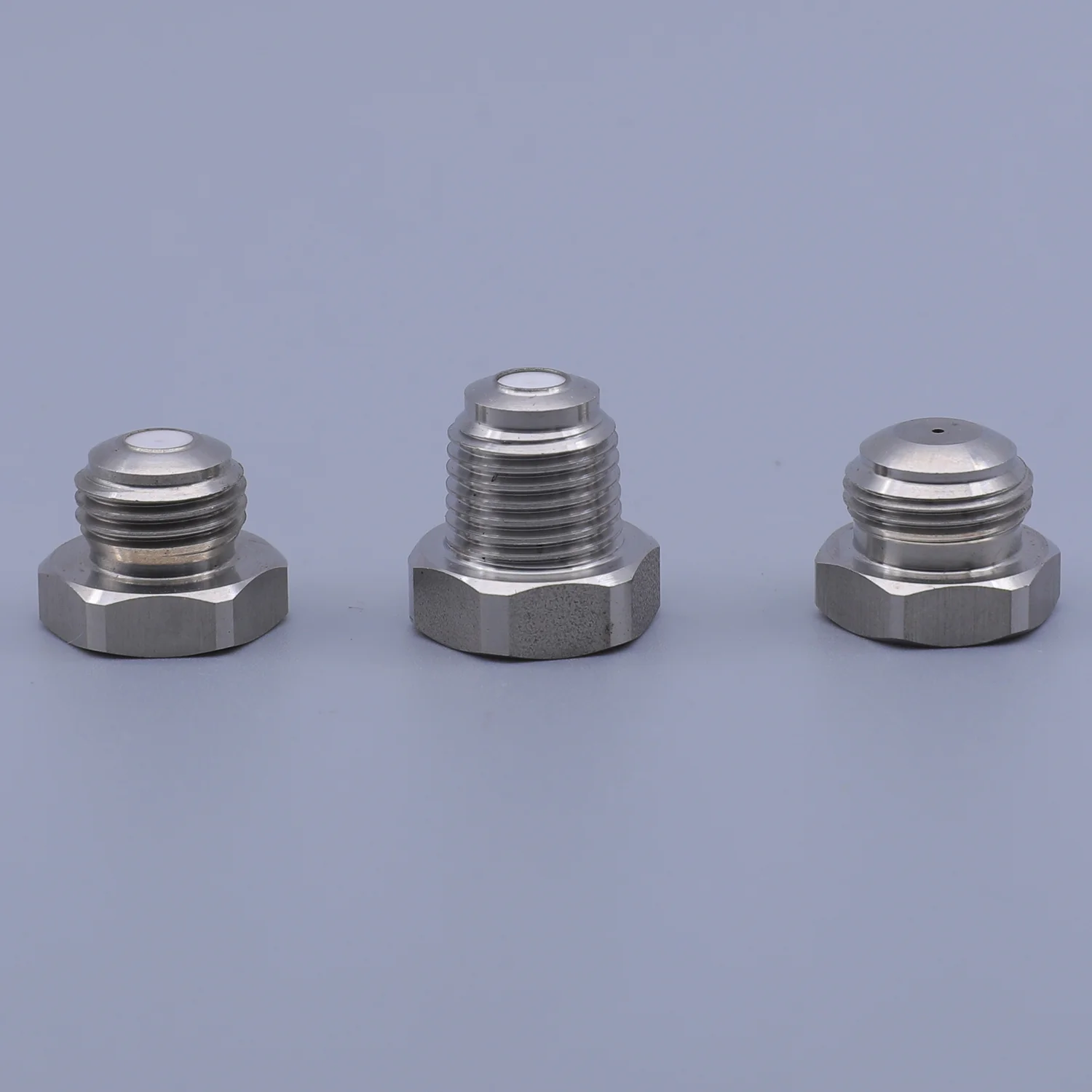

Paper Making Solid Stream Nozzle
A paper making solid stream nozzle delivers a focused, high-velocity jet of water directly onto the surface of a moving paper web, which is essential for removing fines, maintaining sheet integrity, and ensuring consistent moisture distribution during the forming and pressing stages. This CNSS solid stream nozzle is designed for the precise, high-impact cleaning required in paper machine sections where water must penetrate the fibrous layer without spreading or breaking the sheet.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- High-velocity jet maintains sheet strength during cleaning without causing web damage
- Solid stream pattern ensures water is delivered where it is needed, reducing overspray and water waste
- Stainless steel construction resists corrosion in continuous wet environments
- Hexagonal body allows for secure gripping during installation and maintenance
- Threaded fitting enables direct integration into existing paper machine spray systems
- Free trial samples available to verify performance before full deployment
Application Scenarios
Where It Is Installed
- Cleaning the paper web at the forming table where fines must be removed without weakening the sheet
- Maintaining consistent moisture levels in the press section by targeted water application
- Preventing sheet rupture during high-speed operation by using a focused, non-splashing jet
- Replacing worn nozzles in a paper machine's shower system where uniformity and impact are critical
- Integrating into a new paper machine line where a reliable solid stream is required for sheet conditioning
Who It Is For
Buyers Who Specify It
- Paper mill maintenance teams replacing nozzles in forming or press sections
- Paper machine OEMs specifying nozzles for new machine builds
- Process engineers optimizing water usage and sheet quality in wet-end operations
- Plant managers seeking reliable, long-life nozzles for continuous paper machine duty
- Service contractors supplying replacement nozzles for paper machine maintenance
Problems It Solves
What It Fixes on the Line
- Sheet damage caused by wide or splashing spray patterns during cleaning
- Inconsistent moisture distribution due to uneven or broken spray streams
- Frequent nozzle failure from corrosion in high-moisture, high-pressure environments
- Difficult installation due to poor grip or non-standard thread fit
- High water consumption from inefficient spray patterns that miss the target
Technical Features
How It Is Built
- Solid stream spray pattern for focused, high-impact water delivery
- Hexagonal body for secure gripping during installation and removal
- Threaded connection designed for direct mounting on paper machine spray bars
- One-piece construction with no internal components to loosen or wear
- Stainless steel body suitable for continuous wet and high-pressure service
- Nozzle body designed to withstand high-velocity water without deformation
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general paper machine cleaning duty
- 316 stainless steel where chlorides or aggressive water chemistry are present
- Brass for low-cost water service at moderate temperature and pressure
Manufacturing Process
How the Part Is Made
- Material selection based on the paper machine's operating environment
- Machining of the body and orifice to match the required flow and impact
- Inspection of the orifice and stream pattern before assembly
- Packaging in protective containers to prevent damage during transit
- Final inspection and testing before shipment
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Full cone nozzle | A full cone provides even coverage over a circular area, which is better for tank filling or gas cooling, but it lacks the focused impact needed for targeted paper web cleaning |
|---|---|
| Hollow cone nozzle | A hollow cone produces a fine ring of droplets suitable for gas scrubbing, but it cannot deliver the solid, high-velocity stream required to clean a moving paper web |
| Flat fan nozzle | A flat fan spreads water over a wide line, which may overspray or weaken the paper sheet; a solid stream maintains precision and impact |
| Spiral nozzle | A spiral nozzle handles solids better but produces a conical pattern that is not suitable for the precise, straight-line cleaning needed in paper making |
Use Guide
Fitting and Running It
- Confirm the required impact force and flow rate based on the paper machine's operating conditions
- Ensure the nozzle is aligned so the solid stream hits the web at the correct angle and distance
- Use the hex body to securely tighten the nozzle during installation without slippage
- Check the orifice for clogging or wear if the spray pattern becomes inconsistent
- Match the thread standard to the existing spray bar before ordering
- Consider using a filter if the water supply contains particulates that could block the orifice
Questions Buyers Ask
Paper Making Solid Stream Nozzle Questions
What is the spray pattern and how does it help in paper making?
The solid stream pattern delivers a focused, high-velocity jet of water directly onto the paper web, which is essential for removing fines and maintaining sheet integrity during forming and pressing stages.
Which materials are available for this nozzle?
Available materials include 303 stainless steel for general duty, 316 stainless steel for chloride or aggressive water environments, and brass for low-cost water service at moderate temperature.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept OEM orders and custom designs?
Yes. Standard and non-standard nozzles can be made to your drawing, and OEM orders including customer marking are accepted.
What is the quality guarantee period?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send us the nozzle photo and service conditions by email for assessment.
What are your payment terms?
Payment terms are stated as T/T 100% in advance. Send the model, quantity, and destination port by email, and we will confirm the terms for your order.
Are dimensions and thread size confirmed on enquiry?
Yes. Dimensions and thread size are confirmed against the customer's drawing or duty sheet. Please provide your specifications for accurate confirmation.
Related Products
Others in the Paper Making Nozzle
Ask About Paper Making Solid Stream Nozzle
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
