NeedleJet Spray Nozzle

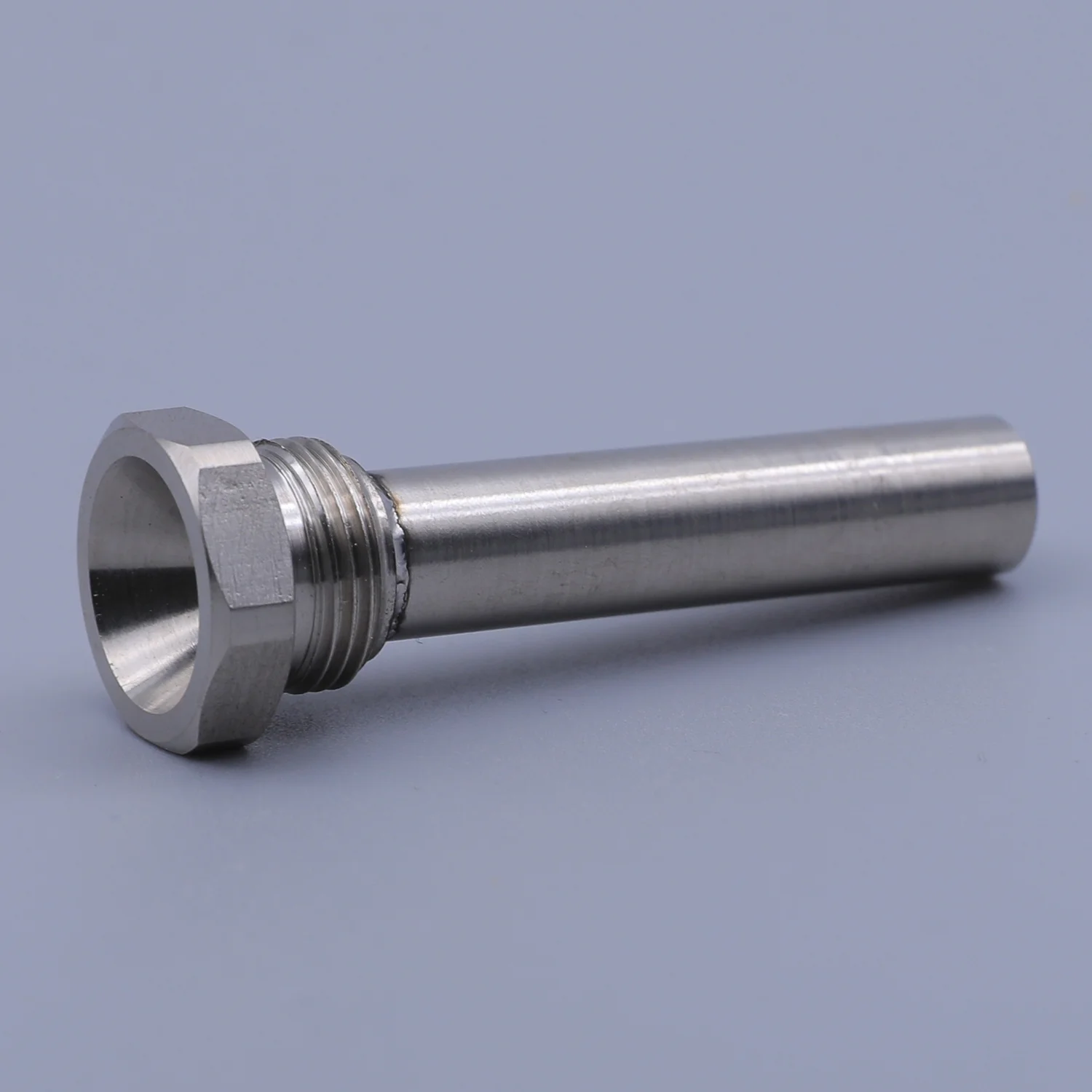

A NeedleJet spray nozzle delivers a focused, high-velocity stream of liquid through a narrow orifice, which is required when precise impact force or penetration is needed through dense material layers, such as in paper web washing or surface cleaning in high-speed paper machines. This CNSS NeedleJet range is designed for consistent performance in continuous paper making lines where uniform water distribution and controlled impact are critical to sheet integrity and process stability.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- High-velocity jet provides deep penetration into wet paper web without causing fiber disruption
- Long cylindrical tube design maintains consistent spray direction and impact point
- Stainless steel construction resists wear and corrosion in continuous water and chemical service
- Hexagonal base allows secure mounting and torque control during installation
- External threads enable direct connection to standard pipe fittings without adapters
- Free trial samples available to verify jet pattern and impact before full deployment
Application Scenarios
Where It Is Installed
- Paper machine washing sections where water must penetrate the wet web without damaging fiber structure
- Surface treatment lines requiring high-impact cleaning on continuous moving sheets
- Washing zones in paper making where consistent jet alignment prevents streaking or uneven drying
- Maintenance teams replacing worn nozzles in high-speed paper machine sections
- OEM machine builders integrating nozzles into new paper making line designs
Who It Is For
Buyers Who Specify It
- Paper mill maintenance engineers replacing nozzles in washing or shower zones
- Paper machine OEMs specifying nozzles for new line builds
- Process engineers optimizing water distribution and impact in paper web treatment
- Plant managers seeking reliable nozzles for continuous high-speed operations
- Technical buyers sourcing durable nozzles for harsh wet environments
Problems It Solves
What It Fixes on the Line
- Inconsistent jet alignment causing streaks or uneven water distribution across the paper web
- Loose or misaligned nozzles due to weak mounting or improper thread fit
- Frequent replacement due to material degradation in continuous water or chemical service
- Difficulty in matching nozzle geometry to existing pipe connections without adapters
Technical Features
How It Is Built
- Long cylindrical tube with precision orifice for focused high-velocity jet
- Hexagonal base for secure gripping and torque control during installation
- External threads for direct connection to standard pipe fittings
- One-piece construction with no internal parts to loosen or fail
- Designed for continuous operation in high-speed paper making environments
- Nozzle body and orifice are machined as a single unit to maintain alignment
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general water service in paper making
- 316 stainless steel for service with chlorides or chemical wash solutions
- Brass for low-cost water applications at moderate temperature and pressure
Manufacturing Process
How the Part Is Made
- Material selection based on the duty described by the customer
- Machining of the body and orifice to precise dimensions
- Inspection of orifice size and jet alignment
- Packaging in protective containers
- Transportation with handling controls to prevent damage
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Flat fan nozzle | A flat fan spreads liquid across a surface, suitable for broad coverage, while a NeedleJet delivers a focused jet for penetration into dense layers like wet paper web |
|---|---|
| Full cone nozzle | A full cone provides even coverage over a circular area, ideal for tank filling, but lacks the focused impact of a NeedleJet for targeted surface cleaning |
| Hollow cone nozzle | A hollow cone creates a ring pattern with fine droplets, better for gas scrubbing, but cannot deliver the concentrated jet needed for deep web penetration |
| Spiral nozzle | A spiral handles solids better due to external vane design, but its pattern is not suitable for precise, high-impact jet applications in paper making |
Use Guide
Fitting and Running It
- Confirm the required jet velocity and impact point based on the paper web thickness and speed
- Ensure the nozzle is aligned with the target surface to avoid misdirection
- Use external threads to connect directly to standard pipe fittings without adapters
- Check the orifice for blockage or wear if jet performance drops
- Secure the hex base with proper torque to prevent loosening during operation
- Verify the material selection matches the chemical and temperature conditions of the service
Questions Buyers Ask
NeedleJet Spray Nozzle Questions
What is the jet pattern and intended use of this nozzle?
The NeedleJet spray nozzle delivers a focused, high-velocity stream through a narrow orifice, designed for deep penetration into wet paper webs and surface cleaning in continuous paper making lines.
Which materials are available for this nozzle?
The NeedleJet nozzle is available in 303 stainless steel for general water service, 316 stainless steel for chloride or chemical exposure, and brass for low-cost water applications at moderate temperature.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and samples can be ready within 10 days.
Do you accept small orders and OEM marking?
Yes. Small volume orders are accepted, and standard or non-standard nozzles can be made to your drawing under an OEM order.
What happens if a nozzle fails in service?
A 3 month quality guarantee is given on the product. Send us the nozzle photo and the service conditions by email and we will assess the wear pattern.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity and destination port by email and we will confirm the terms for your order.
Are dimensions and thread size confirmed on enquiry?
Yes. Dimensions and thread size are confirmed against the customer's drawing or duty sheet. The nozzle is designed with external threads for direct connection to standard pipe fittings.
