Paper Making Nozzle
NeedleJet Shower Nozzle 1
A needlejet shower nozzle delivers a focused stream of liquid through a small orifice to clean or rinse a precise area, which is essential in paper making processes where a uniform water distribution across a moving web is required without overspray or pooling. This CNSS needlejet shower nozzle is designed for high-precision washing of disc filters and similar components, where consistent droplet impact and controlled flow are critical to maintaining process efficiency and product quality.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Delivers a concentrated stream for targeted cleaning without affecting adjacent surfaces
- Designed for consistent performance in paper making and disc filter washing applications
- Compact conical body allows installation in tight spaces on machinery
- Suitable for use with recirculated or filtered water systems
- Minimal overspray reduces water waste and keeps surrounding equipment dry
- Free trial samples available to verify fit and function before bulk ordering
Application Scenarios
Where It Is Installed
- Cleaning disc filters in a paper making line where even water distribution prevents web defects
- Rinsing small components in a paper machine's washing station with minimal water usage
- Maintaining consistent spray performance in a high-speed paper web coating process
- Replacing worn nozzles in a disc shower system where uniformity is critical
- Integrating a precision nozzle into a custom washing station for industrial parts
Who It Is For
Buyers Who Specify It
- Paper mill maintenance teams responsible for filter and washer system upkeep
- OEM machine builders integrating nozzles into paper making or coating lines
- Process engineers optimizing water usage and cleaning efficiency in a paper plant
- Plant managers replacing nozzles in high-wear washing zones with reliable alternatives
- Technical buyers sourcing precision nozzles for non-standard or custom applications
Problems It Solves
What It Fixes on the Line
- Uneven cleaning across a disc filter surface due to inconsistent spray distribution
- Water pooling or overspray that damages adjacent components or creates slip hazards
- Wear or clogging in nozzles that disrupts the paper making process and causes downtime
- Inability to fit standard nozzles into tight or confined spaces on washing equipment
Technical Features
How It Is Built

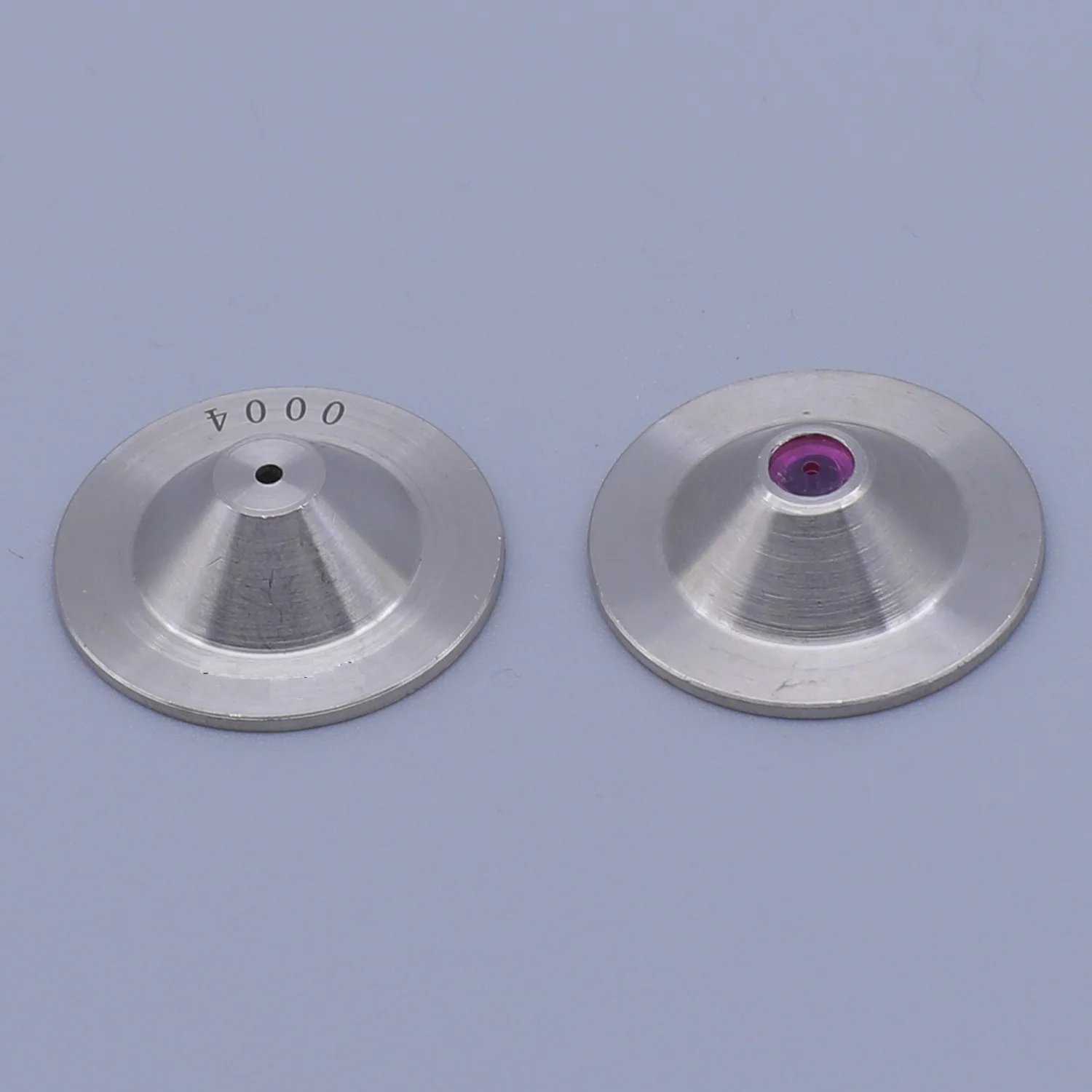

- Conical metal body with central orifice designed for focused spray delivery
- Two-part construction with a replaceable insert for easy maintenance
- Silver metal finish suitable for industrial environments with moderate corrosion risk
- Central hole allows for direct mounting on standard fittings or support structures
- Compact design fits into tight spaces on washing and filtering equipment
- No internal moving parts to wear or fail under normal operating conditions
Materials
Body Materials and Where Each One Suits
Manufacturing Process
How the Part Is Made
- Material selection based on the intended duty and environment
- Machining of the conical body and central orifice
- Inspection of orifice size and alignment
- Assembly of the two-part structure
- Packaging for safe transport
- Final inspection before shipment
Quality Control
What Is Checked Before It Ships
- Raw material is selected from brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listings
Customization
What Can Be Changed to Suit You
- Standard and non-standard parts can be customised to customer drawings
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Full cone nozzle | A full cone provides a circular spray pattern suitable for tank filling or gas cooling, but it lacks the focused stream needed for precise disc or web washing |
|---|---|
| Flat fan nozzle | A flat fan covers a linear area evenly, but it is not designed for the high-impact, small-orifice delivery required in disc filter shower applications |
| Hollow cone nozzle | A hollow cone creates a ring pattern with fine droplets, ideal for gas scrubbing, but it does not deliver the concentrated jet needed for targeted cleaning |
| Standard shower nozzle | Standard shower nozzles are designed for general rinsing and lack the precision and durability required for industrial paper making or filter washing |
Use Guide
Fitting and Running It
- Confirm the required spray pattern and flow rate based on the process duty
- Check the orifice size and mounting dimensions against the existing equipment
- Ensure the material is suitable for the water or chemical exposure in the system
- Align the nozzle so the stream hits the target area directly without obstruction
- Inspect the insert and orifice regularly for wear or blockage in recirculated water systems
- Replace the insert or entire nozzle when performance drops below required standards
Questions Buyers Ask
NeedleJet Shower Nozzle 1 Questions
What is the spray pattern and flow rate for this nozzle?
The spray pattern is a focused stream through a central orifice. Flow rate and pressure are confirmed on enquiry based on the application and system requirements.
What materials are available for this needlejet shower nozzle?
Available materials include brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel. The material is selected based on the process environment and chemical exposure.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept OEM orders and custom designs?
Yes. Standard and non-standard nozzles can be made to your drawing. OEM orders including customer marking are accepted.
What is the quality guarantee for this product?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send us a photo and the operating conditions for assessment.
What are your payment terms?
Payment terms are T/T 100% in advance. Send the model, quantity, and destination port by email to receive a confirmation.
How is this nozzle installed and maintained?
The nozzle is mounted via its central hole and features a two-part design with a replaceable insert. Regular inspection of the orifice and insert is recommended to maintain performance.
Related Products
Others in the Paper Making Nozzle
Ask About NeedleJet Shower Nozzle 1
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
