Paper Making Nozzle
Needle Spray Nozzle

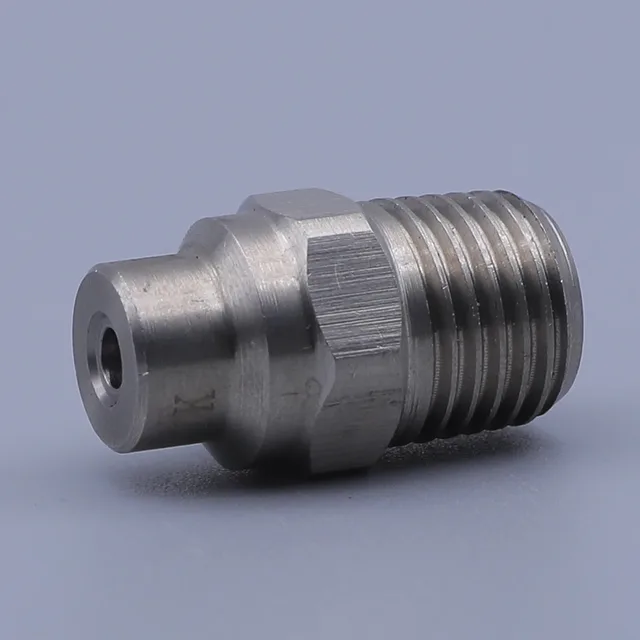

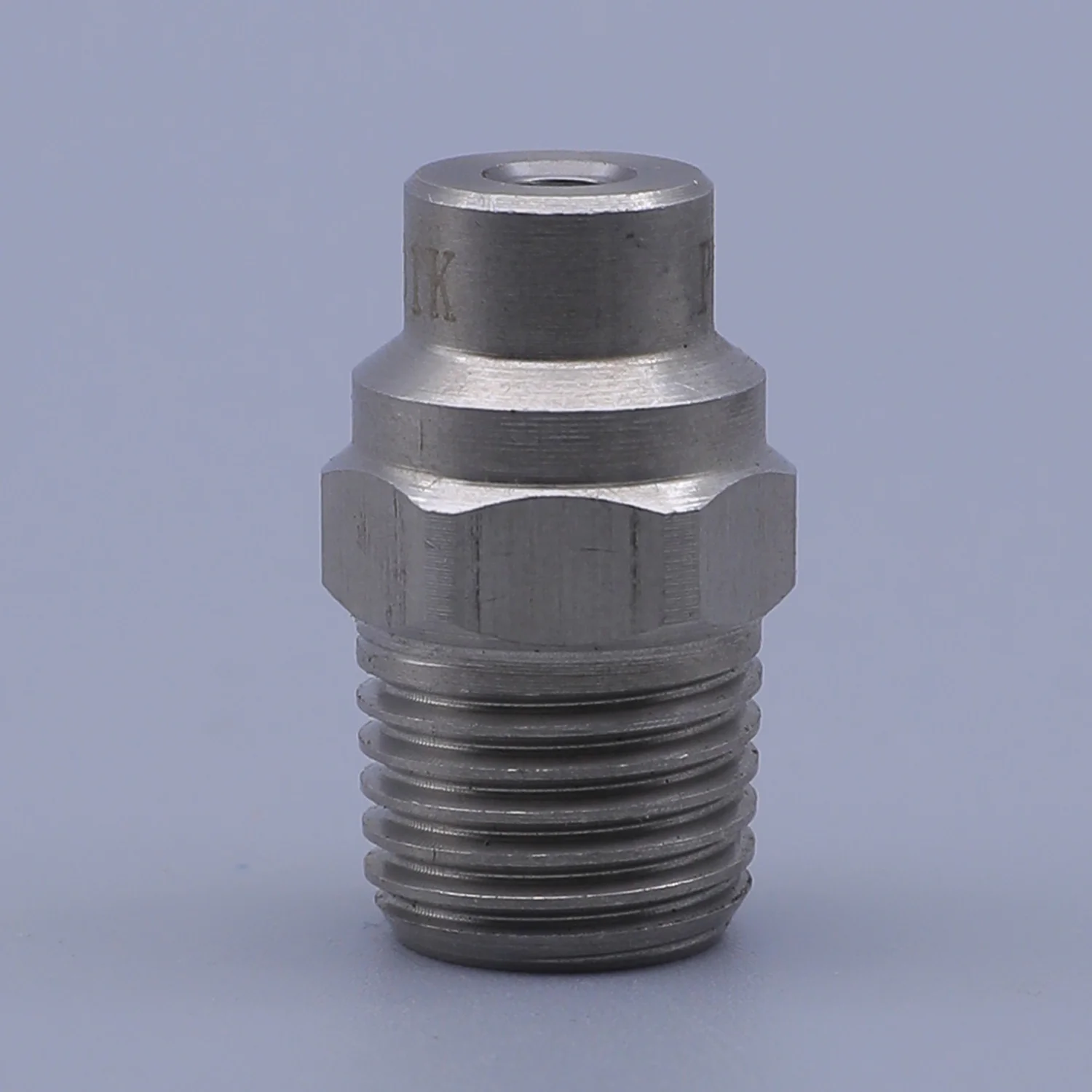

A needle spray nozzle delivers a focused stream of liquid through a small central orifice, which is required when a precise, high-impact jet is needed to clean a narrow slot, a disc filter surface, or a paper web in a paper machine. This CNSS needle spray nozzle is designed for targeted cleaning in tight spaces where a broad spray would be ineffective or wasteful.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- High-impact jet delivers concentrated cleaning force in narrow or confined areas
- Small central bore allows precise targeting on disc filters or paper web edges
- Threaded fitting with hex nut enables secure mounting and easy adjustment
- Stainless steel construction resists corrosion in wet or chemical environments
- Compact design fits into tight spaces without requiring large clearance
- Free trial samples available to verify fit and function before full order
Application Scenarios
Where It Is Installed
- Cleaning disc filters in a paper machine where debris accumulates in narrow grooves
- Maintaining paper web integrity by removing lint or dust at the edge of a forming section
- Targeted washing of a rotating drum or roller where only a small area needs cleaning
- Precision cleaning in a confined space where spray spread would cause overspray
- Replacing worn nozzles in a paper making line that require a consistent narrow jet
Who It Is For
Buyers Who Specify It
- Paper mill maintenance teams replacing nozzles in forming or press sections
- Machine builders integrating cleaning nozzles into disc filter systems
- Plant engineers troubleshooting clogged or unevenly cleaned filter discs
- OEMs specifying nozzles for paper making machines with tight space constraints
- Facility managers maintaining disc shower systems in industrial filtration
Problems It Solves
What It Fixes on the Line
- Inadequate cleaning in narrow filter slots due to wide or diffuse spray patterns
- Overspray and water waste when a broad nozzle is used in a confined area
- Frequent nozzle failure from misalignment or loose fit in tight mounting spaces
- Difficulty in accessing cleaning points due to bulky or poorly designed nozzles
- Inconsistent cleaning performance caused by variable jet width or pressure drop
Technical Features
How It Is Built
- Single-piece stainless steel construction with no internal parts to disassemble
- Central bore designed for high-impact, low-volume jet delivery
- Hex nut and threaded fitting allow secure mounting and torque control
- Compact cylindrical body fits into tight clearance zones
- Threaded adapter enables connection to standard piping without custom fittings
- Nozzle body is designed for direct mounting on a header or frame
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general cleaning duty in water or mild chemical environments
- 316 stainless steel where chlorides or higher corrosion resistance is required
- 304 stainless steel for moderate chemical and temperature exposure
Manufacturing Process
How the Part Is Made
- Material selection based on the customer's duty description
- Machining of the threaded fitting and central bore
- Inspection of orifice size and alignment
- Assembly of the hex nut and fitting
- Packaging for protection during transport
- Final inspection before shipment
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Full cone nozzle | A full cone provides even coverage over a circular area, suitable for tank filling or gas cooling, but lacks the focused jet needed for narrow slots or disc surfaces |
|---|---|
| Flat fan nozzle | A flat fan spreads liquid across a line, which is useful for broad rinsing, but it cannot deliver the concentrated stream required for a single narrow cleaning point |
| Hollow cone nozzle | A hollow cone creates a ring of droplets ideal for gas scrubbing, but its pattern is unsuitable for precise cleaning in a small bore or narrow gap |
| Spiral nozzle | A spiral nozzle passes solids better due to external vanes, but its spray pattern is not focused enough for high-impact cleaning in a confined bore |
Use Guide
Fitting and Running It
- Confirm the bore size and thread standard against the existing fitting before ordering
- Ensure the standoff distance allows the jet to reach the target without deflection
- Align the nozzle so the central bore is aimed directly at the cleaning point
- Use the hex nut to secure the fitting without over-tightening
- Inspect the orifice for blockage if cleaning performance drops
- Replace the nozzle if the jet becomes misaligned or weak
Questions Buyers Ask
Needle Spray Nozzle Questions
What materials are available for the needle spray nozzle?
The needle spray nozzle is available in 303 stainless steel, 304 stainless steel, and 316 stainless steel, selected based on the operating environment and chemical exposure.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept OEM orders and custom drawings?
Yes. Standard and non-standard nozzles can be made to your drawing, and OEM orders including customer marking are accepted.
What is the quality guarantee for this nozzle?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send us a photo and the operating conditions for assessment.
What are your payment terms?
The product listing states T/T 100% in advance. Send the model, quantity, and destination port by email, and we will confirm the terms for your order.
Is the thread size and bore size confirmed on enquiry?
Yes. Dimensions and materials are confirmed against the customer's drawing or duty sheet. The exact thread and bore size are specified based on your application.
Can this nozzle be used in a disc filter washing system?
Yes. The needle spray nozzle is specifically designed for disc filter washing and disc shower applications where a focused jet is required to clean narrow filter surfaces.
Related Products
Others in the Paper Making Nozzle
Ask About Needle Spray Nozzle
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
