Misting Nozzle
7N and 7G Misting Nozzle Manifold

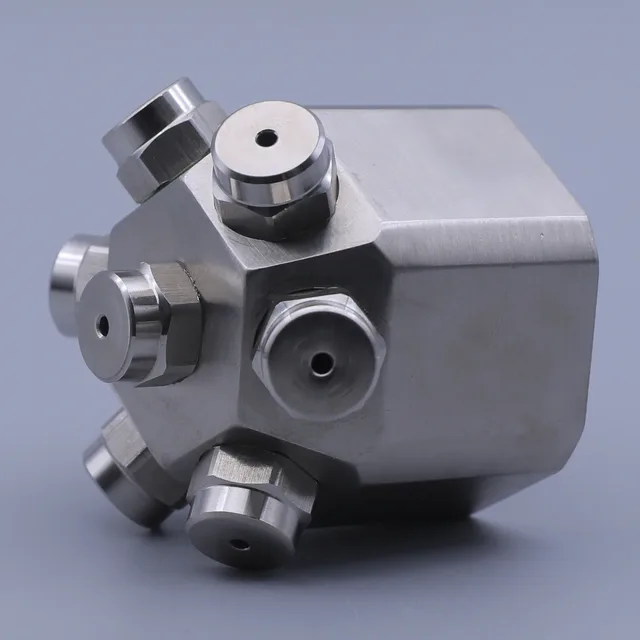

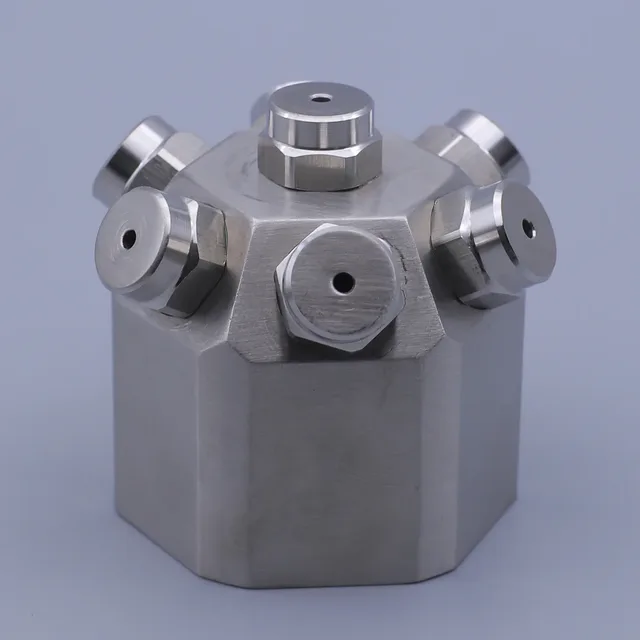

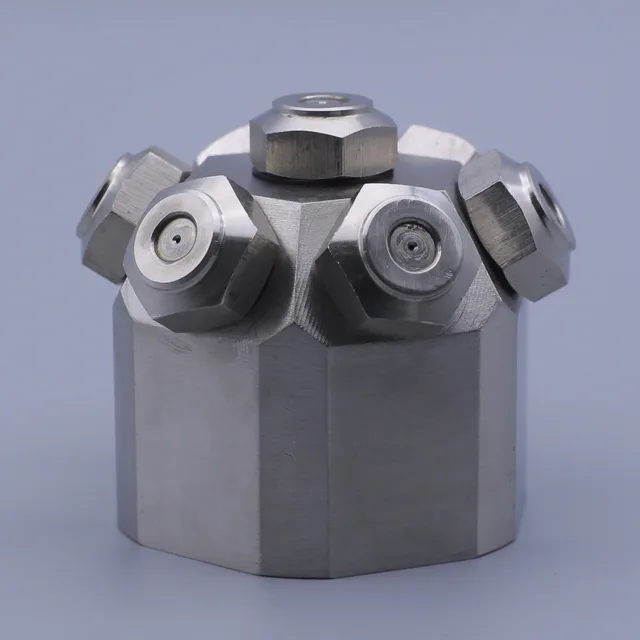

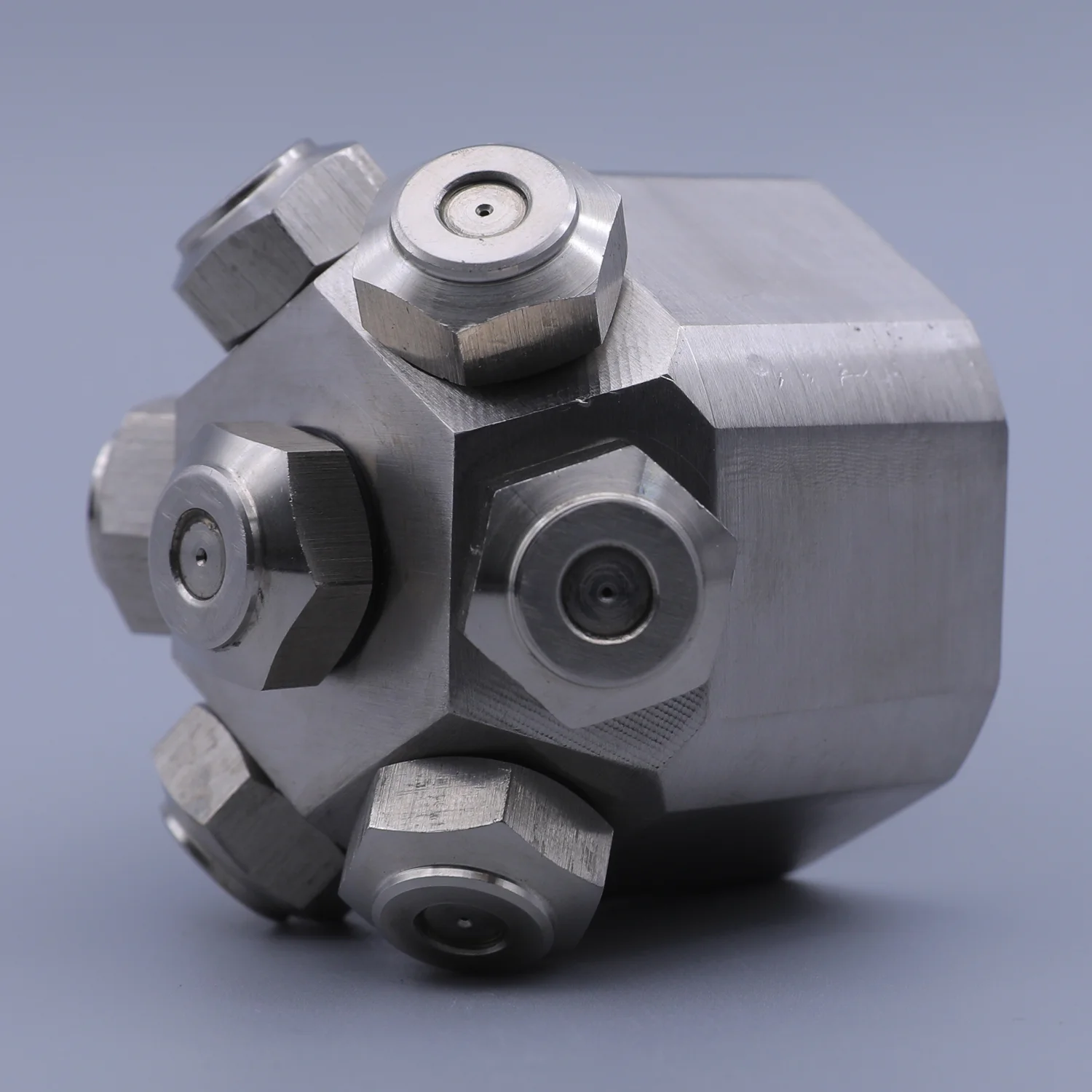

This manifold design integrates multiple spray ports into one compact block, reducing the number of connections and simplifying installation on a shared supply line. The system is built for continuous operation in industrial environments where even mist coverage is critical.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Single block manifold reduces the number of connections and potential leak points
- Multiple spray ports allow one supply line to serve several misting points
- Stainless steel construction resists corrosion in humid or chemically exposed environments
- Hexagonal fittings allow for easy alignment and torque control during installation
- Central orifices ensure consistent flow distribution across all spray ports
- Designed for use with low and high pressure misting systems, suitable for both indoor and outdoor applications
Application Scenarios
Where It Is Installed
- Cooling large indoor spaces such as greenhouses or livestock barns where uniform mist coverage prevents hot spots
- Humidification in paper making lines where moisture must be evenly applied across a moving web
- Surface treatment in textile workshops requiring consistent mist application across fabric rolls
- Outdoor fog systems in agricultural or industrial zones where multiple misting points are needed
- Washing lines where a continuous mist is used to pre-wet surfaces before chemical application
Who It Is For
Buyers Who Specify It
- Maintenance managers upgrading misting systems with fewer connection points and higher reliability
- System integrators designing cooling or humidification layouts for large facilities
- Paper mill engineers needing consistent moisture application across a web without nozzle drift
- OEM builders of misting systems requiring a modular manifold for standardization
- Facility operators replacing individual misting nozzles with a single integrated manifold
Problems It Solves
What It Fixes on the Line
- Uneven mist distribution caused by individual nozzle misalignment or pressure drop
- Frequent leaks from multiple threaded connections in a distributed misting setup
- High maintenance from installing and adjusting multiple separate nozzles
- Inconsistent humidity or cooling due to variable flow at each spray point
- Long installation time when setting up multiple individual misting points
Technical Features
How It Is Built
- Multi-port block design with central orifices for balanced flow distribution
- Hexagonal body for secure gripping and consistent torque during installation
- Integrated fittings allow direct connection to supply lines without adapters
- Multiple capped ports for future expansion or temporary blocking
- One-piece construction with no internal parts that can loosen or wear
- Suitable for use with low and high pressure misting systems
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general industrial misting duty
- 304 stainless steel for moderate chemical exposure
- 316 stainless steel where chlorides or aggressive chemicals are present
Manufacturing Process
How the Part Is Made
- Material selection based on the operating environment and fluid type
- Machining of the manifold block and orifice pattern
- Inspection of port alignment and flow balance
- Cleaning and drying before packaging
- Final inspection and testing before shipment
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard manifolds can be made to customer drawings
- OEM orders accepted including customer marking and branding
- Port configuration and thread size can be adjusted to match the application
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
Comparison
How It Compares With the Alternatives
| Individual misting nozzles | A manifold reduces the number of connections and installation time, but individual nozzles offer more flexibility in positioning and flow adjustment |
|---|---|
| Single-port manifold | A multi-port manifold serves multiple points from one supply, but a single-port version is simpler and cheaper for low-point applications |
| Plastic manifold | Stainless steel manifolds offer better durability and chemical resistance, but plastic is lighter and less expensive for low-pressure, non-corrosive duty |
| Custom welded manifold | This machined block is more consistent in flow and easier to maintain than a welded assembly, but welded units can be built to non-standard shapes |
Use Guide
Fitting and Running It
- Confirm the number of spray points and required flow distribution before selecting the manifold
- Ensure the supply line pressure matches the system’s operating range
- Align all ports in the same plane to maintain even mist coverage
- Use hexagonal fittings to apply consistent torque during installation
- Cap unused ports to prevent debris entry or pressure loss
- Inspect the orifices periodically for clogging, especially when using recirculated water
Questions Buyers Ask
7N and 7G Misting Nozzle Manifold Questions
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and samples can be ready within 10 days.
Do you accept OEM orders and custom configurations?
Yes. Standard and non-standard manifolds can be made to your drawing, including custom port layouts and customer marking under an OEM order.
What is the lead time for a sample?
Samples can be ready within 10 days after the order is confirmed.
What happens if a manifold fails in service?
A 3 month quality guarantee is given on the product. Send us the manifold photo and the service conditions by email and we will assess the failure cause.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity, and destination port by email and we will confirm the terms for your order.
Can I modify the port layout or thread size?
Yes. The port configuration and thread size can be adjusted to match your application. Provide your drawing or duty sheet and we will confirm the design.
Related Products
Others in the Misting Nozzle
Go Deeper
Industries Guides and Ways to Order
Ask About 7N and 7G Misting Nozzle Manifold
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
