High Impact Misting Nozzle
A high impact misting nozzle delivers a concentrated stream of fine droplets at high pressure, which is required when a process needs rapid cooling, humidity control, or dust suppression across a large area without overspray. This CNSS high impact misting nozzle is designed for industrial misting systems where consistent droplet distribution and durability under pressure are critical. The nozzle body is constructed from materials suitable for high pressure and continuous operation, and it can be fitted into existing piping using standard threaded connections.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Delivers fine droplets at high pressure for rapid evaporation and cooling
- Robust construction resists deformation under sustained high pressure
- Threaded connection allows direct fit into standard industrial piping

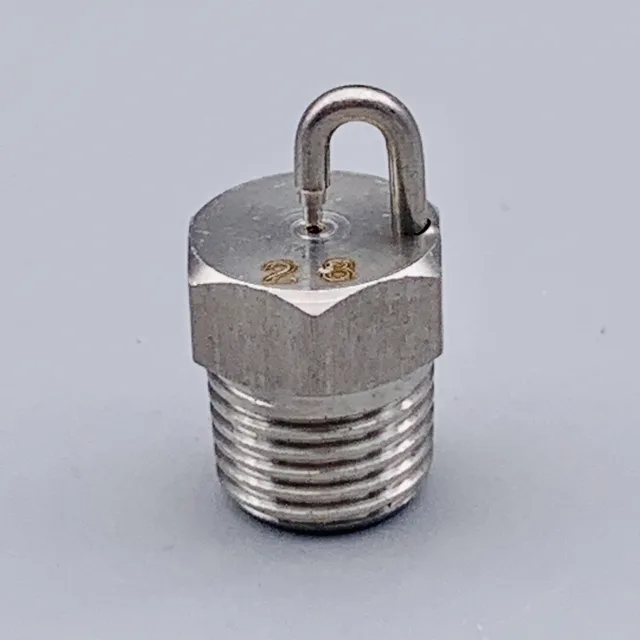

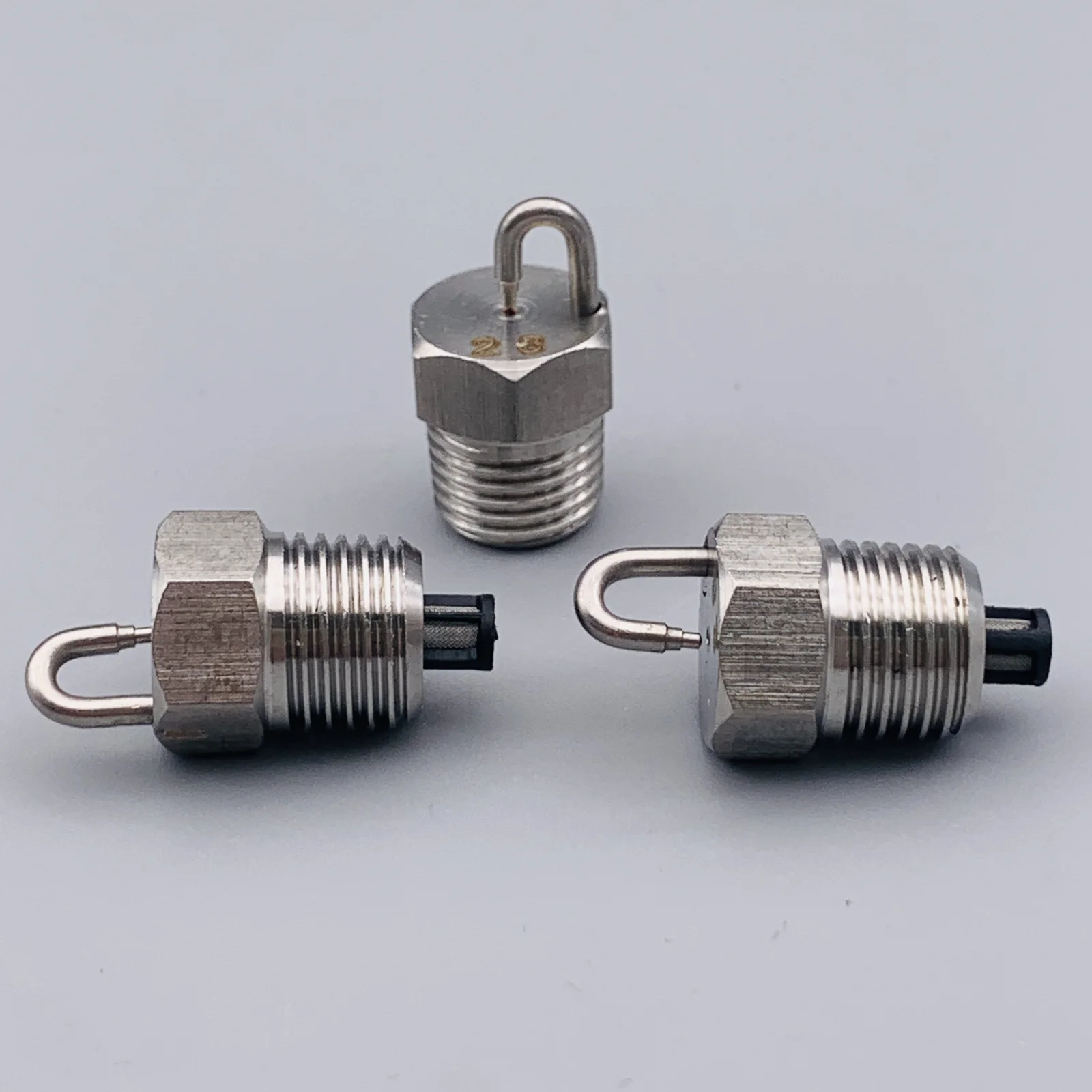

- Hexagonal body provides secure grip during installation and maintenance
- Eye loop enables easy handling and suspension in overhead misting systems
- Free trial samples available to verify performance before bulk ordering
Application Scenarios
Where It Is Installed
- Outdoor cooling systems in hot industrial environments where rapid evaporation is needed
- Dust suppression in mining or quarrying areas with high airflow and open surfaces
- Humidity control in large greenhouses or livestock barns requiring even mist distribution
- High pressure cooling of hot surfaces in metal processing or forging lines
- Misting systems in large-scale agricultural or industrial facilities with long run piping
Who It Is For
Buyers Who Specify It
- Maintenance managers responsible for cooling or dust control systems in large facilities
- System integrators designing high pressure misting installations for industrial sites
- Plant engineers upgrading existing misting systems with more durable nozzles
- OEMs building misting units for agricultural, environmental or industrial applications
- Procurement teams sourcing reliable nozzles for high volume, high pressure operations
Problems It Solves
What It Fixes on the Line
- Inconsistent mist distribution due to nozzle deformation under high pressure
- Frequent nozzle failure from vibration or improper fit in piping systems
- Difficulty in installing or replacing nozzles in overhead or hard-to-reach locations
- Dust or moisture buildup from overspray due to poor droplet control
- Lack of durability in low-cost nozzles that fail after short-term use
Technical Features
How It Is Built
- Hexagonal body provides a secure grip for wrench installation
- Threaded end allows direct connection to standard industrial piping
- Eye loop enables easy handling and suspension during installation
- One-piece construction minimizes leak points and internal wear
- Designed for continuous operation under high pressure conditions
- Fits into standard misting system configurations without custom adapters
Materials
Body Materials and Where Each One Suits
Manufacturing Process
How the Part Is Made
- Material selection based on the operating pressure and environment
- Machining of the threaded body and internal flow path
- Inspection of thread integrity and orifice alignment
- Final assembly with eye loop and body connection
- Packaging for protection during transit
- Testing under pressure before shipment
Quality Control
What Is Checked Before It Ships
- Raw material is selected from brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every stage from material selection to transportation is controlled
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawing
- OEM orders accepted including customer marking and branding
- Small volume orders accepted for trial or pilot installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Low pressure misting nozzle | A low pressure nozzle operates at reduced force and produces larger droplets, which are less effective for rapid cooling or dust suppression; this high impact nozzle is better suited for applications requiring fine, high-velocity mist |
|---|---|
| Full cone nozzle | A full cone provides a circular spray pattern ideal for tank filling or gas cooling, but it does not deliver the focused, high-impact stream needed for long-range misting or targeted cooling |
| Hollow cone nozzle | A hollow cone produces a ring-shaped mist with finer droplets but less forward momentum; this high impact nozzle offers greater penetration and coverage over distance |
| Standard threaded plug | A plain plug lacks the eye loop and precision threading for secure, repeatable installation in misting systems; this nozzle is designed for ease of handling and reliable fit |
Use Guide
Fitting and Running It
- Confirm the operating pressure and target distance before selecting the nozzle
- Ensure the thread standard matches the existing piping to avoid adapters
- Use the eye loop to suspend or handle the nozzle during installation
- Inspect the orifice for blockage if misting performance drops
- Replace the nozzle if the body shows signs of deformation under pressure
- Verify the nozzle alignment to ensure even mist distribution across the target area
Questions Buyers Ask
High Impact Misting Nozzle Questions
What is the operating pressure range for this nozzle?
The operating pressure is confirmed on enquiry based on the customer's system and duty. The nozzle is designed for high pressure applications and is built to withstand sustained operation under pressure.
Which materials are available for this high impact misting nozzle?
The nozzle body is available in brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel, selected based on the operating environment and pressure conditions.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept OEM orders and custom designs?
Yes. Standard and non-standard nozzles can be made to your drawing, and OEM orders including customer marking are accepted.
What is the quality guarantee for this nozzle?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send a photo and details of the operating conditions for assessment.
What are your payment terms?
The product listing states T/T 100% in advance. Send the model, quantity, and destination port by email, and we will confirm the payment terms for your order.
How is the nozzle installed and handled?
The nozzle features a hexagonal body for wrench grip and an eye loop for easy handling and suspension during installation. It connects directly to standard threaded piping.
Related Products
Others in the Misting Nozzle
Go Deeper
Industries Guides and Ways to Order
Ask About High Impact Misting Nozzle
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
