HP Misting Nozzle
High Pressure SS Misting Nozzle

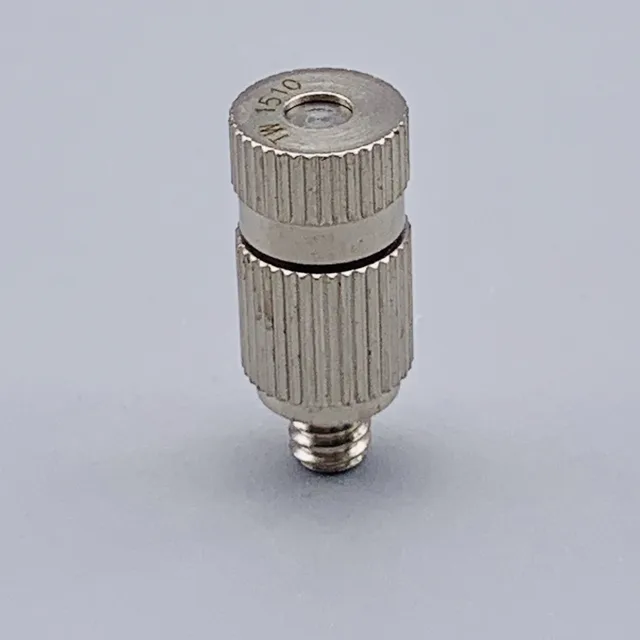

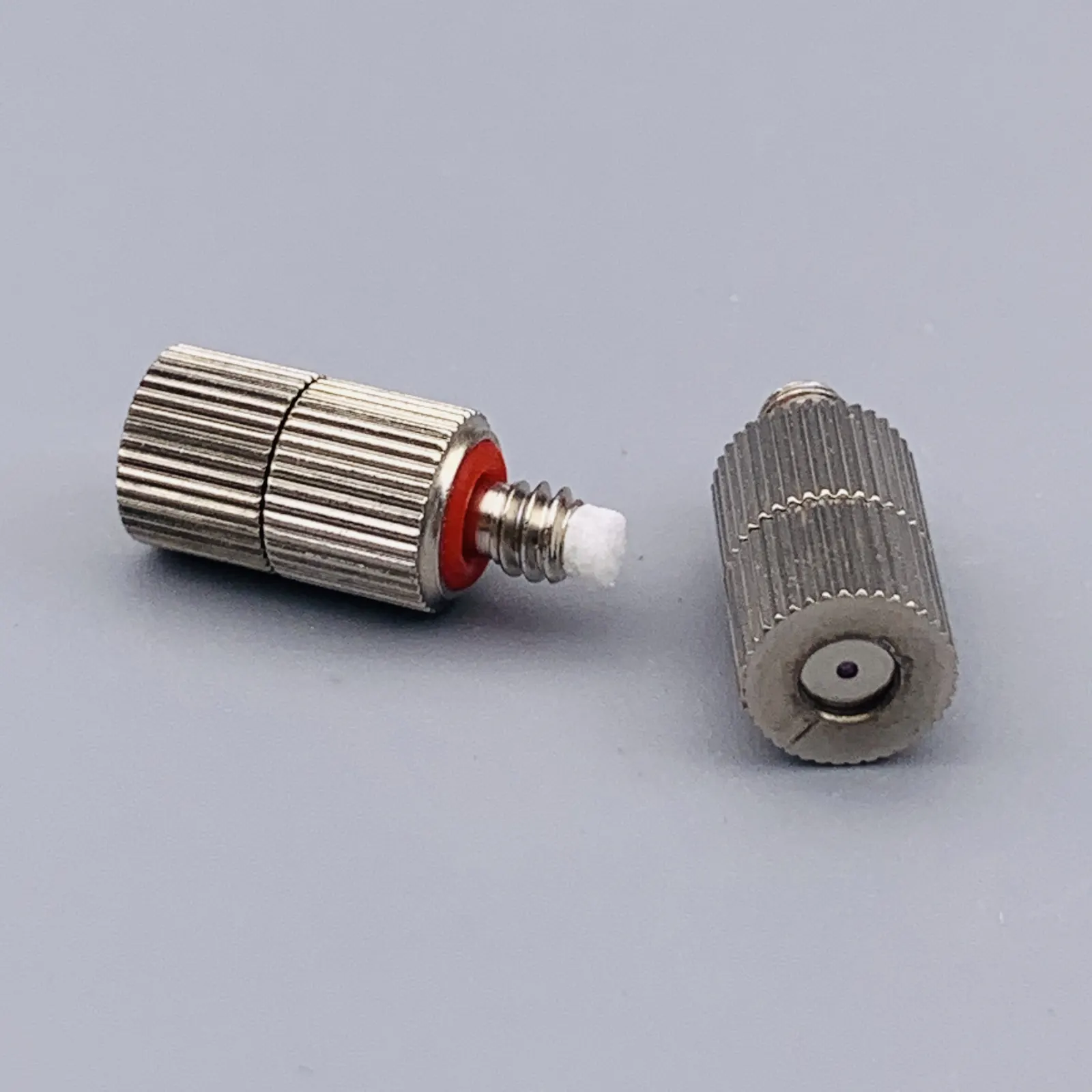

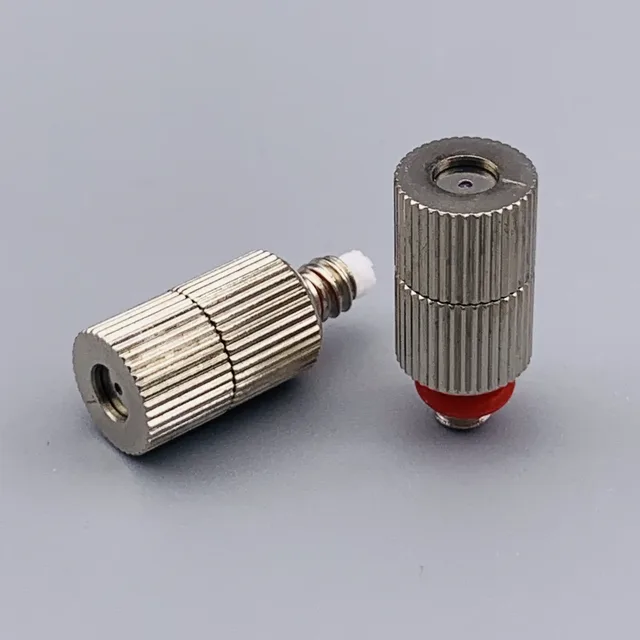

A high pressure misting nozzle delivers a fine, fully distributed fog under pressure, which is what you need when a large area must be cooled, humidified, or disinfected without wetting surfaces. This CNSS high pressure SS misting nozzle uses a guide vane to create a centrifugal vortex, producing droplets between 3 and 70 microns in diameter. It operates under 20 to 70 kg/m² (290 to 1015 PSI) and is designed to prevent droplet fall back and blockage.
| Operating Pressure | 20 to 70 kg/m² (290 to 1015 PSI) |
|---|---|
| Droplet Size | 3 to 70 microns |
| Inlet Size | 10/24, 12/24, 3/16, 1/8 |
| Spray Pattern | Full fog, non-directional |
| Anti-drop Feature | Yes, with internal anti-drop equipment |
| Nozzle Tip | Wear-resistant material |
Dimensions and materials outside this table are confirmed against your duty sheet before quotation.
Key Benefits
What This Nozzle Gives You
- Produces fine droplets from 3 to 70 microns, ideal for even cooling and humidification without wetting
- Anti-drop design prevents liquid from falling back after shutdown, reducing waste and surface wetting
- No air supply required, so the system remains simple and low maintenance
- Wear-resistant tip extends service life to 2.5 times that of similar nozzles
- Guide vane inside the body ensures consistent vortex formation and full spray pattern
- No clogging due to internal flow design and non-blocking orifice
Application Scenarios
Where It Is Installed
- Textile workshops where humidity must be maintained without soaking fabric
- Poultry houses requiring dust suppression and cooling during high ambient temperatures
- Stock farms needing continuous disinfection and temperature control in animal housing
- Artificial fog installations for visual effects or stage lighting where fine mist is essential
- Vegetable storage areas where freshness must be retained through controlled humidity
Who It Is For
Buyers Who Specify It
- Maintenance managers in livestock or poultry operations replacing worn misting nozzles
- Facility engineers installing cooling or humidification systems in large indoor spaces
- OEMs building fog systems for greenhouses, showrooms, or entertainment venues
- Plant managers in textile mills seeking to reduce moisture-related fabric defects
- Contractors installing misting systems for outdoor cooling or dust control
Problems It Solves
What It Fixes on the Line
- Uneven cooling or humidification caused by large droplets that fall before evaporating
- Frequent nozzle blockage from debris in recirculated water or poor filtration
- Short service life of nozzles due to erosion in high pressure or abrasive water
- Complex system design requiring compressed air to atomize the spray
Technical Features
How It Is Built
- Guide vane inside the body creates a centrifugal vortex for consistent fine atomization
- Anti-drop equipment prevents liquid from dripping after pressure is removed
- No air supply needed, so the system is simpler and requires less maintenance
- Wear-resistant tip designed for extended service life under continuous operation
- Internal flow path minimizes debris accumulation and reduces clogging risk
- Threaded inlet with knurled fitting allows secure connection and easy installation
Materials
Body Materials and Where Each One Suits
- Stainless steel for high pressure, continuous duty and corrosion resistance
- Brass for general water service where cost is a factor
Manufacturing Process
How the Part Is Made
- Material selection based on the duty and fluid type
- Machining of the body and internal guide vane
- Assembly of the threaded inlet and wear-resistant tip
- Inspection of orifice and flow path for blockage or misalignment
- Testing under pressure to confirm fog pattern and anti-drop function
- Packaging and shipping with protective seals
Quality Control
What Is Checked Before It Ships
- Every process from material selection to transportation is controlled
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to drawing
- OEM orders accepted including customer marking
- Inlet size and thread type can be adjusted to match the system design
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
Comparison
How It Compares With the Alternatives
| Low pressure misting nozzle | A low pressure nozzle requires air assistance to atomize and is less effective at producing fine droplets; this high pressure version works without air and delivers finer, more consistent fog |
|---|---|
| Air atomizing nozzle | An air atomizing nozzle needs compressed air and is more complex; this high pressure nozzle uses only liquid pressure, reducing system cost and maintenance |
| Full cone nozzle | A full cone covers a circular area and is used for tank filling; this misting nozzle produces a non-directional fog suitable for large open spaces |
| Hollow cone nozzle | A hollow cone produces a ring pattern with larger droplets; this high pressure misting nozzle delivers a dense, uniform fog with smaller droplets |
Use Guide
Fitting and Running It
- Confirm the inlet size and thread standard match the existing system before ordering
- Ensure the system pressure is within 20 to 70 kg/m² to achieve proper atomization
- Use a filter upstream to prevent debris from entering the nozzle and causing blockage
- Install the nozzle with the anti-drop feature oriented correctly to prevent dripping
- Inspect the tip for wear if fog pattern becomes uneven or droplets grow larger
- Clean the nozzle periodically if used with recirculated or hard water
Questions Buyers Ask
High Pressure SS Misting Nozzle Questions
What operating pressure range does this nozzle require?
The high pressure SS misting nozzle operates under 20 to 70 kg/m² (290 to 1015 PSI). Confirm your system pressure matches this range for proper atomization.
Which body materials are available for this nozzle?
Choose based on the fluid, pressure, and environmental conditions.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days. Send your inlet size and application details to request one.
Do you accept OEM orders and custom inlet sizes?
Yes. Standard and non-standard nozzles can be made to your drawing. Custom inlet sizes including 10/24, 12/24, 3/16, and 1/8 are available.
What happens if a nozzle fails in service?
A 3 month quality guarantee is given on the product. Send us the nozzle photo and the operating conditions by email for assessment.
What are your payment terms?
The product listing states T/T 100% in advance. Send the model, quantity, and destination port by email to receive a confirmation.
Is this nozzle suitable for recirculated water?
Yes, but a filter must be installed upstream. The nozzle is designed to resist clogging, but debris in recirculated water can still affect performance.
Related Products
Others in the HP Misting Nozzle
Go Deeper
Industries Guides and Ways to Order
Ask About High Pressure SS Misting Nozzle
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
