HP Misting Nozzle
High Pressure Nozzle with Filter

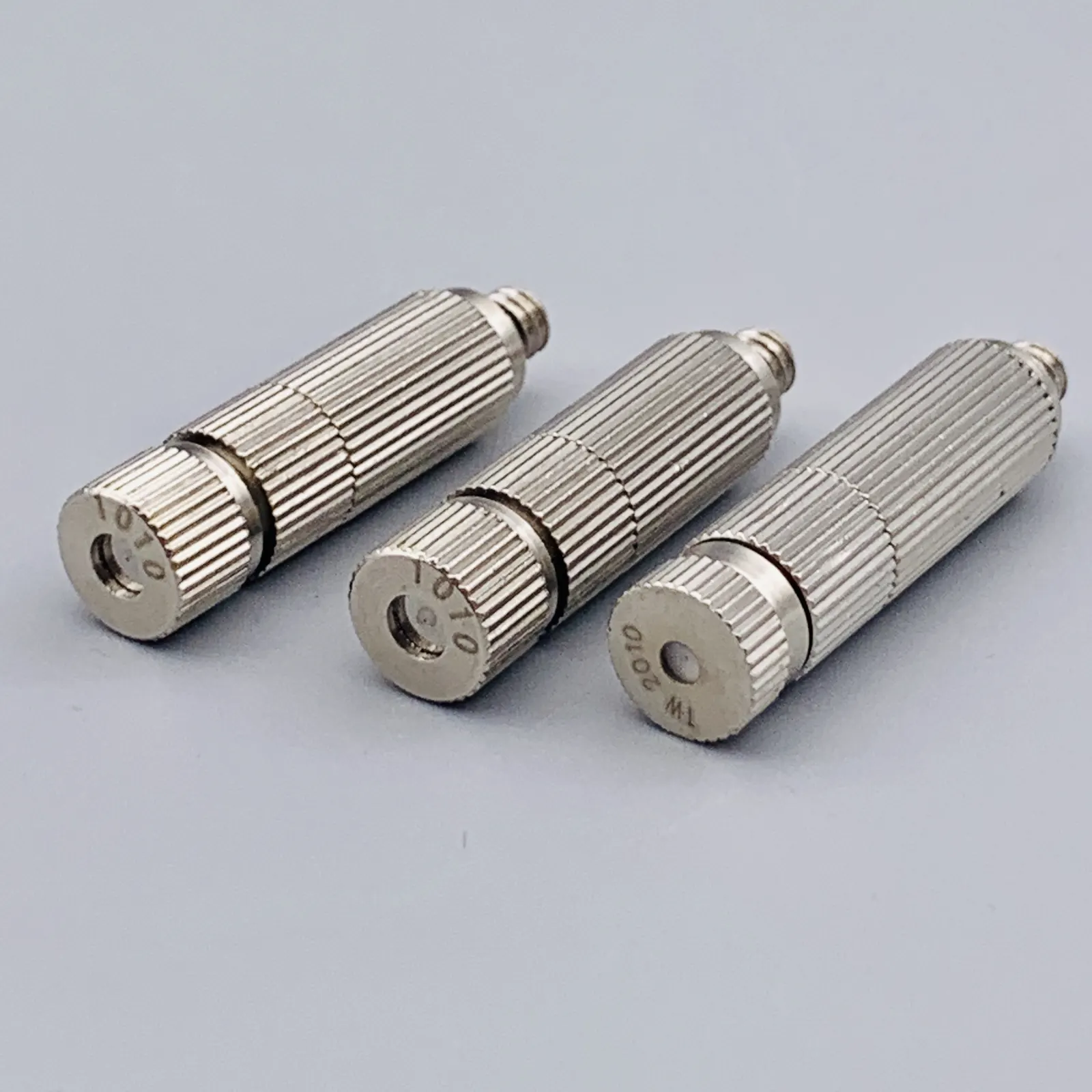

A high pressure nozzle with filter delivers a fine, non-droplet fog under pressure, which is required when a large area needs to be cooled, humidified, or disinfected without wetting surfaces. This CNSS high pressure misting nozzle uses a guide vane to create a centrifugal vortex, producing droplets between 3 and 70 microns in diameter. It operates under 20 to 70 kg/m² (290 to 1015 PSI), making it suitable for industrial fog systems in textile workshops, livestock farms, and cooling applications where water and energy efficiency are critical.
| Operating Pressure | 20 to 70 kg/m² (290 to 1015 PSI) |
|---|---|
| Droplet Size | 3 to 70 microns |
| Inlet Size | 10/24, 12/24, 3/16, 1/8 |
| Feature | Anti-drop, non-blocking, wear-resistant tip |
Dimensions and materials outside this table are confirmed against your duty sheet before quotation.
Key Benefits
What This Nozzle Gives You
- Produces fine droplets from 3 to 70 microns, ideal for non-wetting fog applications
- No external air supply required, simplifying system design and reducing maintenance
- Anti-drop feature prevents liquid from leaking when pressure is off
- Wear-resistant tip extends service life to 2.5 times that of similar nozzles
- Non-blocking design maintains consistent spray under recirculated or dirty water
- Low water and energy consumption with effective coverage across large areas
Application Scenarios
Where It Is Installed
- Textile workshops where humidity must be maintained without wetting fabric or machinery
- Livestock farms requiring cooling and disinfection without increasing floor moisture
- Artificial fog systems for visual effects or outdoor cooling in public spaces
- Poultry houses where dust control and air sterilization are needed
- Vegetable storage areas where freshness is preserved through controlled humidification
Who It Is For
Buyers Who Specify It
- Industrial fog system installers specifying nozzles for cooling or humidification
- Textile plant maintenance teams managing humidity control in weaving and finishing areas
- Livestock farm operators needing low-cost cooling and disinfection solutions
- Greenhouse managers maintaining humidity without water pooling
- OEMs building misting systems for commercial or agricultural use
Problems It Solves
What It Fixes on the Line
- Wet floors and equipment from coarse spray in humidification or cooling systems
- Frequent clogging in nozzles when using recirculated or untreated water
- High energy use from systems requiring compressed air for atomization
- Short nozzle life due to wear in high-pressure, high-flow environments
- Droplet size too large for non-wetting applications like artificial fog or disinfection
Technical Features
How It Is Built
- Guide vane inside the body creates a centrifugal vortex for fine droplet formation
- Anti-drop mechanism prevents liquid leakage when pressure is off
- No internal air supply needed, reducing system complexity
- Wear-resistant tip designed for extended service life
- Non-blocking orifice maintains flow even with low-grade water
- Filter integrated into the nozzle body to protect the orifice from debris
Materials
Body Materials and Where Each One Suits
- Brass for general high pressure misting in clean water service
- Stainless steel for corrosive or high durability environments
Manufacturing Process
How the Part Is Made
- Material selection based on the application environment and fluid type
- Machining of the body and internal guide vane
- Assembly of the filter and wear-resistant tip
- Inspection of orifice and spray pattern
- Testing under pressure before packaging
- Packaging and shipment with quality control checks
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawing
- OEM orders accepted including customer marking
- Filter mesh and inlet size can be specified
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
Comparison
How It Compares With the Alternatives
| Low pressure misting nozzle | A low pressure nozzle requires air assistance for atomization and produces larger droplets, while this high pressure version creates fine fog without air, suitable for non-wetting applications |
|---|---|
| Air atomizing nozzle | An air atomizing nozzle needs compressed air and is more complex, whereas this high pressure nozzle operates independently with no air supply |
| Full cone nozzle | A full cone covers a circular area and is used for tank filling or gas cooling, but this high pressure nozzle is designed for linear or area-wide fog coverage |
| Spiral nozzle | A spiral nozzle handles solids better due to external vanes, but it does not produce the fine, uniform fog required for cooling or disinfection |
Use Guide
Fitting and Running It
- Confirm the inlet size and pressure range match your system before ordering
- Install the nozzle with the filter facing the water source to prevent debris from entering
- Use clean water or install a pre-filter when using recirculated or untreated water
- Check the orifice for blockage if fog output decreases over time
- Align nozzles to ensure even coverage across the target area
- Replace the nozzle if the droplet size becomes inconsistent or fog output drops
Questions Buyers Ask
High Pressure Nozzle with Filter Questions
What pressure range does this nozzle operate under?
The high pressure nozzle with filter operates under 20 to 70 kg/m² (290 to 1015 PSI). Confirm your system pressure matches this range before installation.
Which materials are available for this nozzle?
Choose based on the fluid type and environmental conditions.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept OEM orders and custom sizes?
Yes. Standard and non-standard nozzles can be made to your drawing. Small volume orders are accepted for trial use.
What happens if the nozzle fails in service?
A 3 month quality guarantee is provided. Send the nozzle photo and service conditions by email for assessment.
What are your payment terms?
Payment terms are T/T 100% in advance. Send the model, quantity, and destination port by email to confirm the terms.
Does this nozzle require compressed air?
No. The high pressure nozzle with filter operates without external air supply, making the system simpler and more energy efficient.
