Paper Making Nozzle
Fan Shower Nozzle
A fan shower nozzle delivers a broad, even spray pattern across a moving web or flat surface, which is essential in paper making to maintain consistent moisture distribution and prevent web breaks. This CNSS fan shower nozzle is designed for disc filter washing and paper making applications, where uniform coverage over a large area is required without dry spots or overspray.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Uniform spray coverage across a wide area prevents web breaks in paper making processes
- V-shaped notch at the apex ensures consistent flow distribution and reduces clogging
- Designed specifically for disc filter washing and paper making duties
- Nozzle geometry supports stable spray pattern under variable flow and pressure
- Can be integrated into existing paper machine spray systems without modification
- Free trial samples available to verify performance before full order commitment
Application Scenarios
Where It Is Installed
- Maintaining consistent moisture levels across a paper web during the forming or drying section
- Washing and cleaning disc filters in a paper mill where even spray coverage prevents residue buildup
- Reapplying water or chemical solution to a moving sheet in a paper making line
- Replacing worn nozzles in a paper machine spray bar where uniformity is critical
- Integrating into a new or upgraded paper making line requiring reliable, low-maintenance nozzles
Who It Is For
Buyers Who Specify It
- Paper mill maintenance teams replacing nozzles in forming or drying sections
- Paper machine OEMs specifying nozzles for new machine builds
- Disc filter system operators needing reliable washing nozzles
- Plant engineers troubleshooting web breaks caused by uneven spray
- Process engineers evaluating nozzle options for moisture control in paper making
Problems It Solves
What It Fixes on the Line
- Web breaks due to uneven moisture distribution across the paper sheet
- Clogging in nozzles caused by debris in recirculated wash water
- Dry spots or overspray that waste water and affect paper quality
- Frequent nozzle failure requiring unplanned downtime in high-speed paper lines
Technical Features
How It Is Built

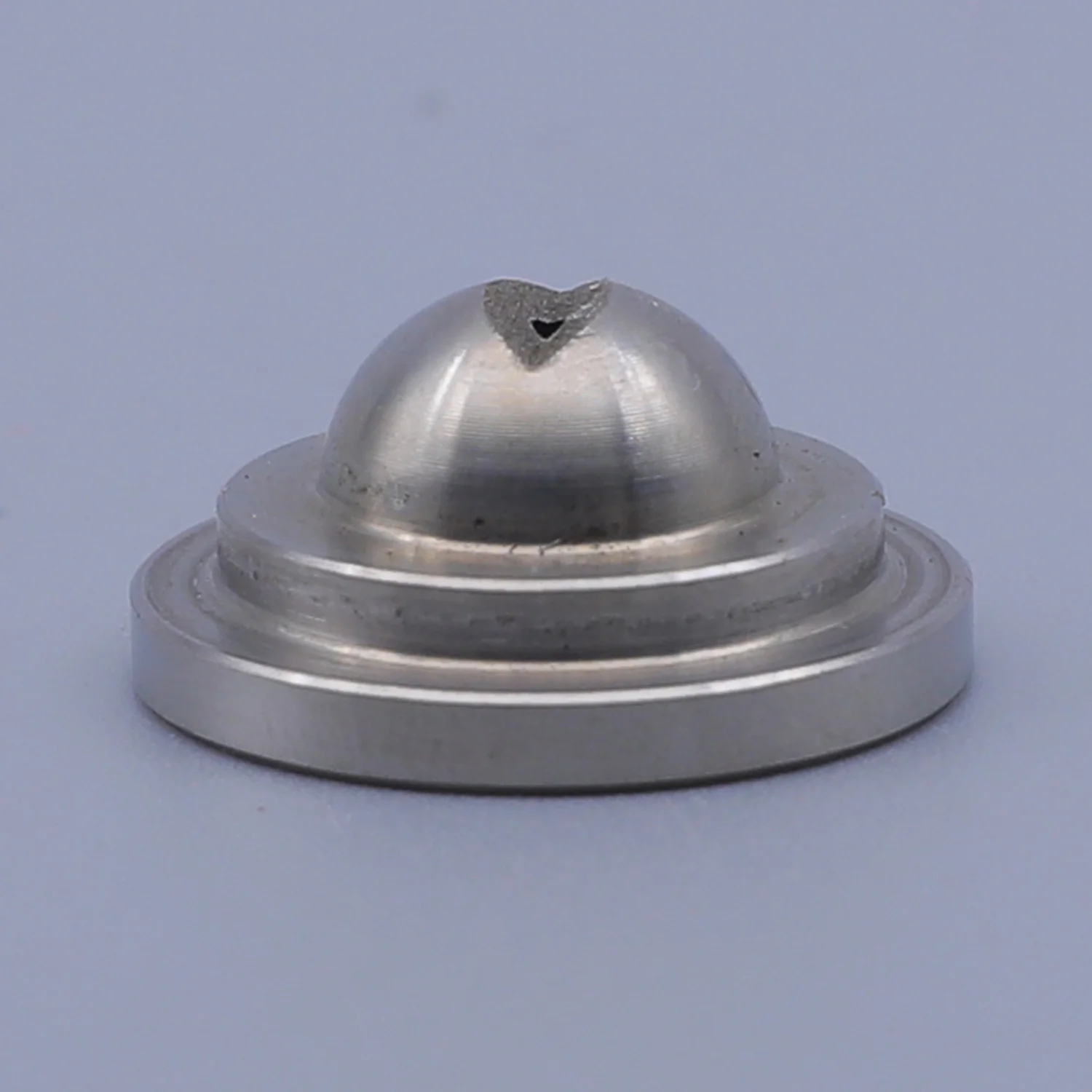

- Domed top with a small V-shaped notch at the apex for consistent flow initiation
- Single piece construction with no internal parts to loosen or wear
- Designed for high-coverage, low-impact spray over large flat surfaces
- Nozzle body geometry optimized for disc filter washing and paper making duty
- Suitable for use with water or low-viscosity liquids in continuous operation
- Nozzle can be mounted in any orientation without affecting spray pattern
Materials
Body Materials and Where Each One Suits
Manufacturing Process
How the Part Is Made
- Material selection based on the duty described by the customer
- Machining of the body and V-shaped notch
- Inspection of orifice geometry and spray pattern
- Packaging for safe shipment
- Transportation under controlled conditions
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Full cone nozzle | A full cone provides a circular spray pattern suitable for tank filling or gas cooling, but it does not deliver the linear coverage needed across a moving paper web |
|---|---|
| Hollow cone nozzle | A hollow cone produces a ring-shaped spray with finer droplets, better for gas scrubbing, but it cannot cover a flat surface uniformly like a fan shower nozzle |
| Spiral nozzle | A spiral nozzle handles solids better due to external vane design, but its conical spray pattern is unsuitable for even coverage on a flat moving web |
| Flat fan nozzle | A flat fan nozzle provides a linear spray, but lacks the V-shaped notch and domed design optimized for disc filter washing and paper making |
Use Guide
Fitting and Running It
- Confirm the target width and standoff distance before selecting the nozzle
- Ensure the V-shaped notch is aligned with the flow direction for consistent spray
- Check for debris in the supply line to prevent clogging at the notch
- Inspect the nozzle regularly for wear or blockage, especially in recirculated water systems
- Replace nozzles when spray pattern becomes uneven or coverage drops
- Use trial samples to verify spray pattern and coverage before full installation
Questions Buyers Ask
Fan Shower Nozzle Questions
What is the purpose of the V-shaped notch on this nozzle?
The V-shaped notch at the apex ensures consistent flow initiation and even spray distribution, which is critical in disc filter washing and paper making applications.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept OEM orders for this fan shower nozzle?
Yes. Standard and non-standard versions can be made to your drawing, including customer marking under OEM orders.
What materials are available for this nozzle?
The nozzle is available in brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel, selected based on the operating duty.
What is the quality guarantee for this product?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send us the photo and operating conditions for assessment.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity, and destination port by email to confirm terms.
How is the spray pattern affected by pressure or flow changes?
The fan shower nozzle maintains a consistent pattern across its operating range. Confirm the required flow and pressure with us to ensure proper selection.
