Paper Making Nozzle
Disc Shower Spray Nozzle
A disc shower spray nozzle delivers a uniform, high-impact spray pattern across a rotating disc surface, which is essential for cleaning or rinsing in paper making and disc filter systems. This CNSS disc shower nozzle is designed to maintain consistent coverage on a moving disc, preventing residue buildup and ensuring even water distribution during the washing cycle.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Uniform spray pattern across a rotating disc surface prevents uneven cleaning and residue accumulation
- Double jet design increases coverage and impact force on the disc surface
- Rupture disc feature allows for controlled pressure release in case of overpressure
- Stainless steel construction resists corrosion in wet, continuous-duty environments
- Nozzle can be installed directly onto a disc washer or filter system without additional adapters
- Free trial samples available to verify performance before full production order
Application Scenarios
Where It Is Installed
- Paper making lines where a disc washer must clean pulp residue from a rotating drum
- Disc filter systems in water treatment where a consistent spray is needed to clean filter discs
- Industrial washing systems where a rotating disc is exposed to high flow and abrasive particles
- Maintenance teams replacing worn nozzles on a disc shower system without redesigning the entire unit
- OEM integrators building disc washers into larger paper or filtration machinery
Who It Is For
Buyers Who Specify It
- Paper mill maintenance engineers replacing disc shower nozzles on a paper machine
- Water treatment plant operators managing disc filter cleaning systems
- OEM machine builders integrating disc shower nozzles into filtration or washing equipment
- Plant engineers upgrading to a more reliable nozzle for high-volume disc washing
- Procurement managers sourcing replacement nozzles for a known disc washer model
Problems It Solves
What It Fixes on the Line
- Uneven cleaning on a rotating disc due to inconsistent spray distribution
- Clogging or reduced flow from a single jet nozzle in high-residue environments
- Overpressure damage to the system due to lack of pressure relief
- Frequent nozzle failure from poor material choice in wet or abrasive conditions
- Long lead times for custom nozzles when a standard design does not fit
Technical Features
How It Is Built
- Double jet design for increased coverage and cleaning efficiency
- Rupture disc built into the nozzle body for pressure relief
- One piece construction with no internal parts to loosen or fail
- Stainless steel body for durability in continuous wet service
- Designed for direct mounting on disc washer or filter systems
- Nozzle body geometry matches standard disc washer mounting patterns
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general washing and rinsing duty
- 316 stainless steel where chlorides or chemical scrubbing liquor are present
- Brass for low cost water service at moderate temperature
Manufacturing Process
How the Part Is Made
- Material selection against the duty the customer describes
- Machining of the body and orifice
- Inspection of orifice size and spray pattern
- Packaging
- Transportation
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass 303 stainless steel 304 stainless steel and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non standard nozzles can be made to drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Single jet nozzle | A single jet provides less coverage and lower impact on a rotating disc, increasing the risk of residue buildup and uneven cleaning |
|---|---|
| Full cone nozzle | A full cone covers a circular area, which is not suited for the linear path of a rotating disc surface |
| Flat fan nozzle | A flat fan is designed for linear surfaces, not rotating discs, and cannot deliver the same even distribution across a curved path |
| Disc shower nozzle with no rupture disc | The rupture disc feature provides a safety mechanism for overpressure, which is critical in high-flow disc washer systems |
Use Guide
Fitting and Running It
- Confirm the disc washer mounting pattern and nozzle orientation before selecting a model
- Ensure the spray pattern matches the disc surface width and rotation speed
- Inspect the rupture disc after each cleaning cycle to verify it has not been triggered
- Replace the nozzle if spray pattern becomes uneven or flow drops

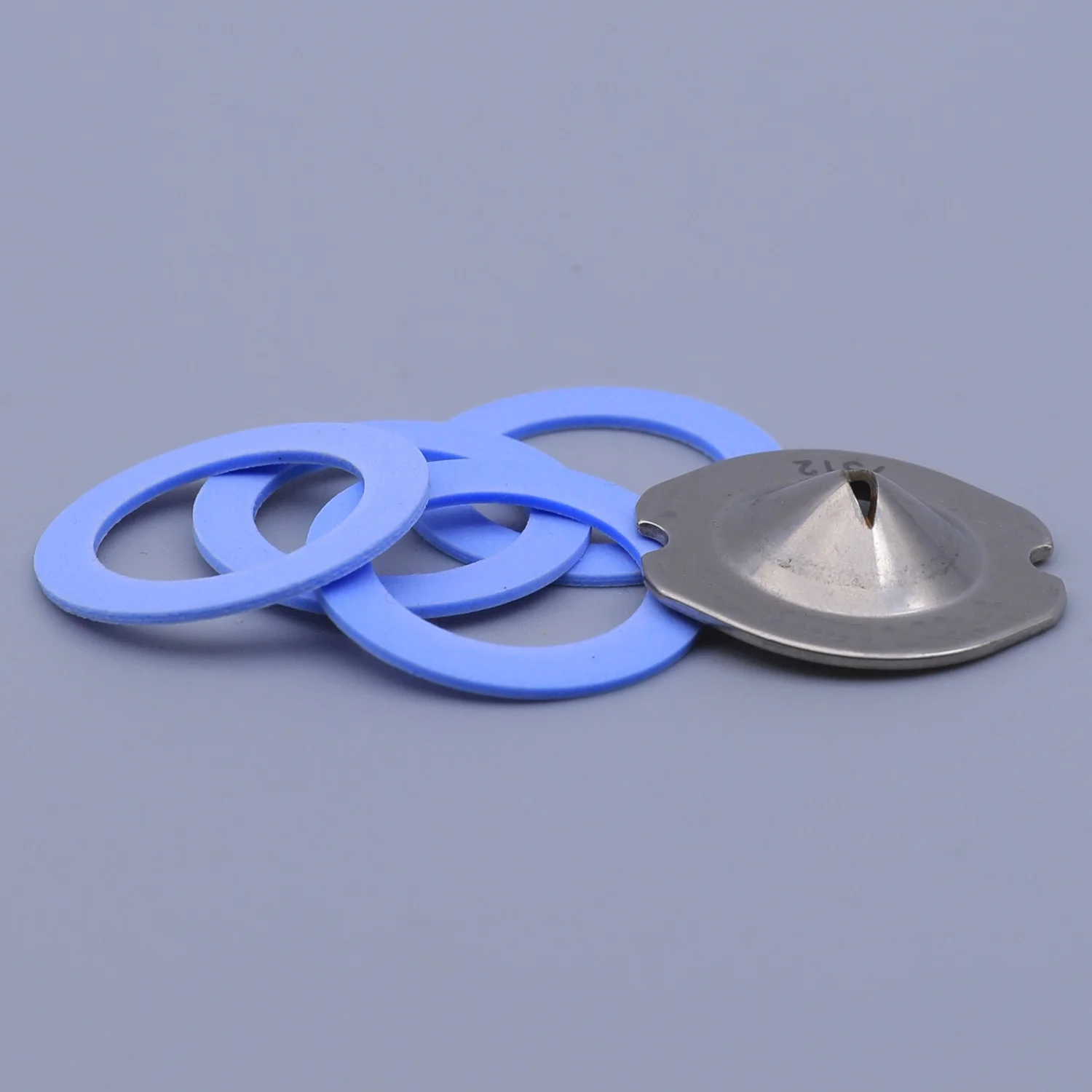

- Use the correct gasket material to prevent leakage at the connection point
- Check the nozzle body for wear or deformation after extended use
Questions Buyers Ask
Disc Shower Spray Nozzle Questions
What is the purpose of the rupture disc in this nozzle?
The rupture disc provides a safety mechanism to release pressure if it exceeds the system's design limit, protecting the disc washer and downstream components.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and samples can be ready within 10 days.
Do you accept OEM orders for this disc shower nozzle?
Yes. Standard and non standard nozzles can be made to your drawing under an OEM order, including customer marking.
What is the quality guarantee for this product?
A 3 month quality guarantee is given on the product. Send us the nozzle photo and the service conditions by email and we will assess the wear pattern.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity and destination port by email and we will confirm the terms for your order.
How long does it take to receive a sample?
Samples can be ready within 10 days and are available for free trial.
Related Products
Others in the Paper Making Nozzle
Ask About Disc Shower Spray Nozzle
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
