Disc Shower Nozzle
A disc shower nozzle delivers a uniform, circular spray pattern across a rotating disc surface, which is essential in paper making processes where consistent water distribution prevents sheet defects and ensures even fiber hydration. This CNSS disc shower nozzle is designed for use in disc filter washing and paper making lines, where a stable, high-coverage spray must maintain integrity under continuous operation and varying flow conditions.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Uniform circular spray pattern ensures even coverage across a rotating disc surface
- Designed for high-coverage washing of disc filters and paper making components
- Robust construction supports continuous operation in industrial paper making lines
- Nozzle geometry is suited to maintain consistent spray distribution over time
- Can be integrated into existing disc washing systems without major modifications
- Free trial samples available to verify fit and spray performance before bulk order
Application Scenarios
Where It Is Installed
- Washing disc filters in paper making lines where consistent water coverage prevents clogging and maintains filtration efficiency
- Maintaining even moisture distribution on rotating paper forming discs to avoid fiber clumping or dry spots
- Cleaning disc surfaces during paper machine downtime to prevent residue buildup
- Integrating into a new or upgraded disc washing station where even spray coverage is critical
- Replacing worn nozzles in a high-volume paper making line with a reliable, repeatable spray pattern
Who It Is For
Buyers Who Specify It
- Paper mill maintenance teams responsible for disc filter and forming section cleaning
- Paper machine OEMs specifying wash nozzles for new disc filter systems
- Plant engineers upgrading washing systems to improve paper quality and reduce downtime
- Process engineers optimizing water distribution on rotating disc surfaces
- Distributors stocking specialized nozzles for paper making and filtration applications
Problems It Solves
What It Fixes on the Line
- Frequent nozzle wear or misalignment causing dry spots and reduced cleaning efficiency
- Poor spray pattern stability under continuous operation affecting paper sheet quality
- Difficulty integrating new nozzles into existing disc washing systems due to mismatched geometry
- Lack of reliable replacement nozzles for specialized disc shower applications
Technical Features
How It Is Built
- Circular spray pattern designed for even distribution across a rotating disc
- Nozzle body geometry optimized for stable spray performance under continuous duty

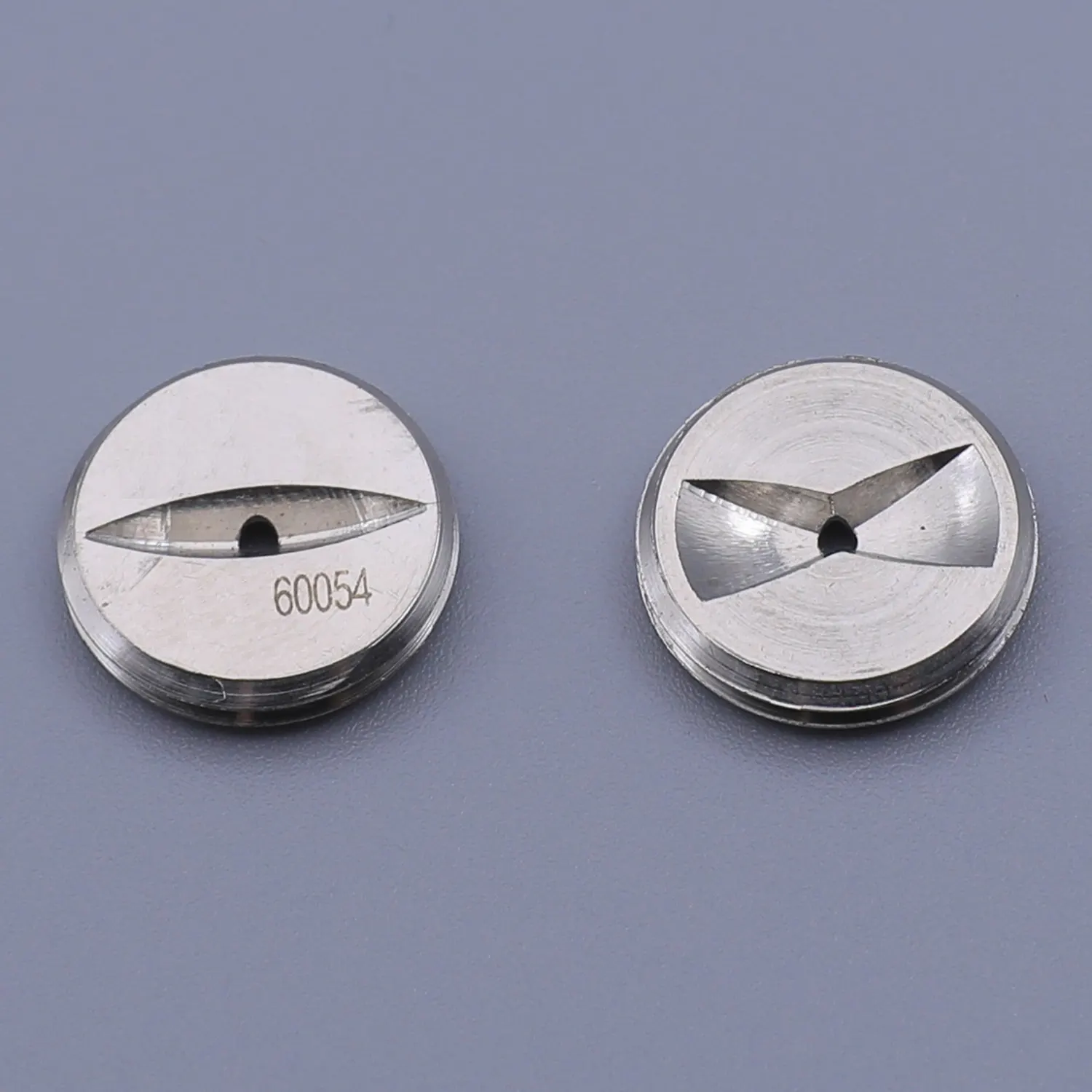

- Single or multi-point slot design available depending on application requirement
- No internal parts that can loosen or wear separately
- Designed for use in disc filter washing and paper making line applications
- Can be fitted into standard disc washing system mounting configurations
Materials
Body Materials and Where Each One Suits
Manufacturing Process
How the Part Is Made
- Material selection based on the customer's duty description
- Machining of the nozzle body and orifice
- Inspection of orifice size and spray pattern
- Packaging
- Transportation
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Flat fan nozzle | A flat fan nozzle is designed for linear coverage across a moving surface, while a disc shower nozzle delivers a circular pattern ideal for rotating disc surfaces in paper making and filtration |
|---|---|
| Full cone nozzle | A full cone provides radial coverage from a central point, suitable for tank filling or gas cooling, but lacks the focused circular pattern needed for disc washing |
| Hollow cone nozzle | A hollow cone creates a ring-shaped spray for gas scrubbing or cooling, but does not provide the full circular coverage required on a rotating disc |
| Spiral nozzle | A spiral nozzle is designed for solids handling and high flow in pipes, but its pattern is not suited to the even circular distribution needed on a disc surface |
Use Guide
Fitting and Running It
- Confirm the disc diameter and rotation speed before selecting the nozzle type
- Ensure the nozzle is aligned to deliver spray across the full disc surface without overlap or gaps
- Check the orifice for blockage if spray coverage becomes uneven
- Match the nozzle mounting configuration to the existing disc washing system
- Use trial samples to verify spray pattern and coverage before full installation
- Inspect the nozzle regularly for wear, especially in high-pressure or abrasive service
Questions Buyers Ask
Disc Shower Nozzle Questions
What is the spray pattern of the disc shower nozzle?
The disc shower nozzle delivers a circular spray pattern designed for even coverage across a rotating disc surface, suitable for paper making and disc filter washing applications.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and samples can be ready within 10 days.
Do you accept OEM orders and custom designs?
Yes. Standard and non-standard nozzles can be made to your drawing under an OEM order, including customer marking.
What materials are available for the disc shower nozzle?
The disc shower nozzle is available in brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel, selected based on the operating duty.
What is the quality guarantee for this product?
A 3 month quality guarantee is given on the product. If a nozzle fails in service, send us the nozzle photo and service conditions by email for assessment.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity, and destination port by email and we will confirm the terms for your order.
How long does it take to receive a sample?
Samples can be ready within 10 days, and trial samples are sent free of charge.
Related Products
Others in the Paper Making Nozzle
Ask About Disc Shower Nozzle
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
