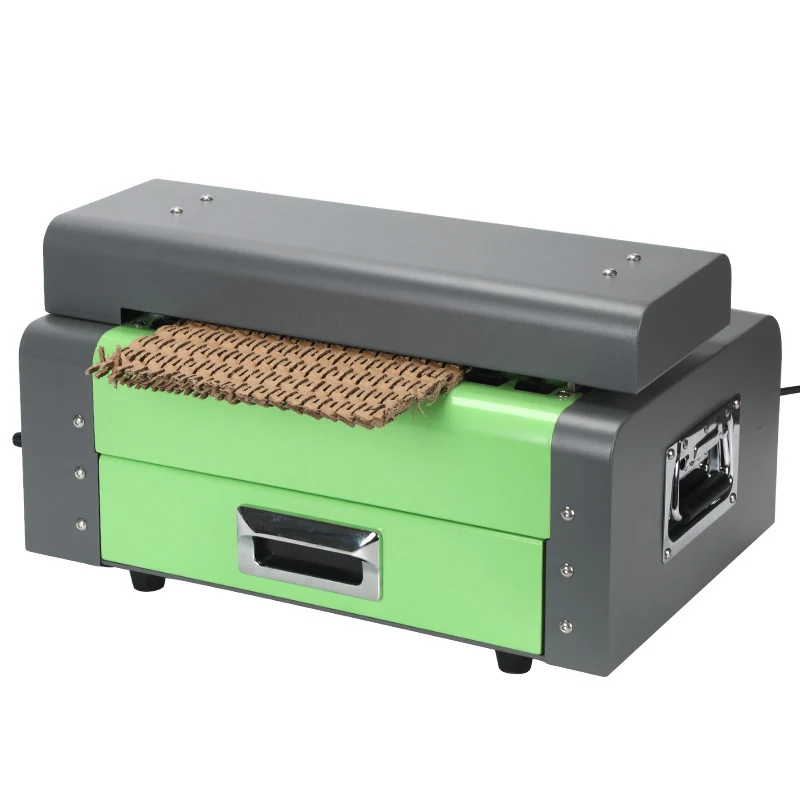

500mm Cutting Width Cardboard Perforator
The 500mm Cutting Width Cardboard Perforator converts corrugated cardboard waste into soft, bulky, eco-friendly cushioning material on site. It uses a unique cutting technique to transform discarded boxes into flat web, strips, or shreds that provide shock protection without adding bulk to storage or freight. The machine operates quietly and reliably, turning waste into reusable packaging in real time.
- Converts cardboard waste into usable cushioning material at the packing bench
- Reduces landfill waste and supports circular packaging practices
- Produces soft, bulky filler that absorbs impact without damaging contents
- Operates at low noise levels and stable speed for consistent output
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Converts cardboard waste into usable cushioning material at the packing bench
- Reduces landfill waste and supports circular packaging practices
- Produces soft, bulky filler that absorbs impact without damaging contents
- Operates at low noise levels and stable speed for consistent output
- Long service life with minimal wear means low maintenance and downtime
- Handles up to 10 mm thickness and 500 mm width in a single pass
Where It Is Used
- Turning damaged or used corrugated boxes into cushioning for fragile electronics
- Creating flat web or shreds to fill voids in export cartons during container loading
- Generating protective filler for ceramics, glass, or homeware in e-commerce fulfilment
- Reusing cardboard from incoming shipments as on-site packaging material
- Supporting sustainability goals by eliminating the need for new foam or plastic fill
Who It Is For
- E-commerce fulfilment centres with high volumes of cardboard waste
- Third-party logistics warehouses that need low-cost, on-demand void fill
- Exporters loading FCL and LCL containers who want to reduce packaging waste
- Manufacturers of fragile goods that generate cardboard packaging daily
- Sustainability-focused operations aiming to reuse packaging materials
Problems It Solves
- Cardboard waste from packaging is discarded instead of reused as protective filler
- Manual cutting of cardboard is slow, inconsistent, and creates uneven cushioning
- Pre-formed void fill takes up storage space and adds to freight costs
- Reliance on new foam or plastic fill increases environmental impact and cost
- Lack of on-site processing means filler is ordered in advance and may not match the void
Technical Features
- Unique cutting technique transforms corrugated cardboard into soft, bulky filler
- Max cutting width of 500 mm handles standard corrugated box sizes
- Max cutting thickness of 10 mm accommodates double-wall and heavy-duty boxes
- Operates at 3 m per minute with stable, low-noise performance
- Voltage options: 110 V or 220 V, 50–60 Hz for global use
- Power consumption: 450 W, suitable for continuous bench-level operation
- Compact size: 63 x 30 x 27 cm, fits in small workspaces
Published Data for 500mm Cutting Width Cardboard Perforator
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Product | 500mm Cutting Width Cardboard Perforator |
|---|---|
| Max Cutting Width | 500 mm |
| Max Cutting Thickness | 10 mm |
| Cutting Speed | 3 m/min |
| Power | 450 W |
| Voltage | 110 / 220 V, 50–60 Hz |
| Dimensions | 63 x 30 x 27 cm |
| Net Weight | 38 kg |
| Gross Weight | 41 kg |
| Packaging Size | 80 x 48 x 40 cm |
Materials
- Built with durable steel components for long service life
- Cutting blades designed for consistent performance on corrugated cardboard
- No plastic components in the cutting mechanism to avoid wear and contamination
How It Is Made
Incoming corrugated cardboard fed into the machine at the desired angle
Cutting blades apply pressure to perforate and shred the cardboard into web or strip form
Material exits as soft, bulky filler suitable for immediate use in packaging
Machine operates continuously with minimal operator input
No additional material or consumables required beyond the cardboard input
How It Is Checked
Incoming machine components inspected for correct material and fit
Cutting blades tested for alignment and sharpness before assembly
Final machine tested at full speed with 10 mm cardboard to verify cutting consistency
Output material checked for uniformity and absence of jagged edges
Packaged units inspected for correct weight, dimensions, and damage before shipment
Customisation Options
- Adjustable cutting depth for different cardboard thicknesses
- Optional blade replacement kits for extended use
- Custom mounting brackets available for integration into existing lines
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Manual cardboard cutting with scissors or knife | Machine produces consistent, safe, and faster output without risk of injury or uneven cuts |
|---|---|
| Pre-purchased foam or plastic void fill | Uses existing waste material, reducing cost and environmental impact |
| Off-site recycling of cardboard | On-site conversion eliminates transport and processing delays |
| Paper shredders for office waste | Designed for corrugated cardboard, not paper, so handles thicker, sturdier material |
How to Use It
Place the machine on a stable, flat surface near the cardboard waste stream
Feed corrugated cardboard into the input slot with the flutes facing the cutting blades
Set the machine to the desired cutting mode (web, strip, or shred) if adjustable
Start the machine and allow it to run at 3 m/min while feeding cardboard steadily
Collect the output filler directly into the packing area for immediate use
Turn off and unplug the machine when not in use to prevent accidental operation
500mm Cutting Width Cardboard Perforator in Detail
Photographs of the actual product as supplied, not renders.
500mm Cutting Width Cardboard Perforator Questions
What is the minimum order quantity for the 500mm Cutting Width Cardboard Perforator
The minimum order quantity is one unit. For multiple units or bulk orders, send your requirements via WhatsApp and we will confirm the MOQ.
Can the machine cut double-wall cardboard
Yes, it can handle up to 10 mm thickness, which includes double-wall corrugated cardboard.
How long does the machine last with regular use
The machine is built for long service life with minimal wear. Blade replacement is recommended after extended use, and spare parts are available.
Is the machine noisy during operation
It operates at low noise levels, suitable for use in warehouse and packing environments.
How is the machine packaged for export
The machine ships in a wooden crate with foam padding. Gross weight is 41 kg, and packaging size is 80 x 48 x 40 cm.
