425mm Cutting Width Carton Shredding Machine
The 425mm Cutting Width Carton Shredding Machine converts corrugated cardboard waste into soft, bulky, eco-friendly cushioning material on site. It uses a unique cutting technique to turn discarded boxes into flat web, strips, or shreds that provide shock protection for fragile goods during transit. The machine operates quietly and reliably, with a maximum cutting width of 425 mm and a speed of 3 m per minute.
- Turns cardboard waste into free packaging material, reducing material costs and waste disposal fees
- Produces soft, bulky cushioning that absorbs impact and protects fragile items during shipping
- Operates at low noise levels, suitable for use in warehouses and production areas
- Long service life with stable operation and low wear on components
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Turns cardboard waste into free packaging material, reducing material costs and waste disposal fees
- Produces soft, bulky cushioning that absorbs impact and protects fragile items during shipping
- Operates at low noise levels, suitable for use in warehouses and production areas
- Long service life with stable operation and low wear on components
- Compact size (55x30x27 cm) fits in tight spaces without requiring major facility changes
- Runs on standard 110 / 220V power, making it usable in most global facilities
- Handles corrugated cardboard up to 10 mm thick, including standard shipping boxes
Where It Is Used
- Converting discarded shipping cartons into cushioning material for e-commerce fulfilment
- Creating on-demand void fill for fragile electronics or glassware packed in export cartons
- Producing protective filler in third-party logistics warehouses to avoid pre-stocked void fill
- Reusing corrugated waste from packaging lines to reduce landfill use and packaging costs
- Generating cushioning material for ceramics, cosmetics, or pharmaceuticals shipped in FCL and LCL containers
Who It Is For
- E-commerce fulfilment centres that generate daily cardboard waste and need low-cost void fill
- Third-party logistics warehouses managing high volumes of mixed SKUs with variable packaging needs
- Exporters shipping fragile goods who want to reduce packaging material costs and waste
- Manufacturers of electronics, cosmetics, and pharmaceuticals looking to reuse corrugated waste
- Facilities with sustainability goals aiming to close the loop on cardboard packaging
Problems It Solves
- Cardboard waste from shipping cartons ends up in landfills instead of being reused
- Purchasing external void fill adds cost and requires storage space for unused material
- Manual cutting of cardboard is slow, inconsistent, and creates uneven cushioning
- Lack of on-site cushioning options leads to over-packaging or under-protection
- Pre-formed void fill occupies warehouse space and adds to freight costs
Technical Features
- Unique cutting technique transforms corrugated cardboard into soft, bulky cushioning material
- Maximum cutting width of 425 mm covers most standard carton sizes
- Maximum cutting thickness of 10 mm handles thick corrugated board including double-wall
- Operates at 3 m per minute for consistent output during packing shifts
- Low noise operation suitable for indoor use without sound insulation
- Voltage compatible with 110 / 220V, 50–60 Hz power supply common in Europe, North America, and Asia
- Power consumption of 450W ensures energy efficiency during long runs
Published Data for 425mm Cutting Width Carton Shredding Machine
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Product | 425mm Cutting Width Carton Shredding Machine |
|---|---|
| Max Cutting Width | 425 mm |
| Max Cutting Thickness | 10 mm |
| Speed | 3 m/min |
| Power | 450W |
| Voltage | 110 / 220V, 50–60 Hz |
| Machine Size | 55 x 30 x 27 cm |
| Packaging Size | 65 x 44 x 36.5 cm |
| Net Weight | 35 kg |
| Gross Weight | 37.5 kg |
Materials
- Steel construction with wear-resistant cutting blades for long service life
- No plastic components in the cutting mechanism to avoid contamination or degradation
- All metal parts designed for durability and minimal maintenance
How It Is Made
Input corrugated cardboard into the feeding slot at the front of the machine
Material passes through the cutting chamber where the unique cutting technique forms flat web or shreds
Cut pieces exit the machine as soft, bulky cushioning material ready for use
Machine operates continuously at 3 m/min with minimal operator intervention
No additional tools or setup required between runs
How It Is Checked
Incoming inspection of all metal parts for dimensional accuracy and surface finish
Blade alignment and sharpness verified before final assembly
Functional test run at full speed to confirm consistent cutting and low noise
Final inspection of machine dimensions, weight, and packaging before shipment
Container loading inspection against packing list before export
Customisation Options
- Adjustable cutting width within 425 mm limit to match common carton sizes
- Optional blade type for different output formats (flat web, strips, shreds)
- Custom paint color available on request for brand integration
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Pre-purchased void fill | Eliminates need to store or order external cushioning; turns waste into material on demand |
|---|---|
| Manual cutting with scissors or knife | Faster, consistent output with less operator fatigue and no risk of injury |
| Machinery that produces paper cushion sheets | Lower cost and simpler operation, though it does not produce flat sheets |
| Plastic foam inserts | Uses waste material and avoids plastic; better for sustainability goals |
How to Use It
Place the machine on a stable, level surface with access to 110 / 220V power
Feed corrugated cardboard into the input slot with the flutes facing the cutting blades
Collect the output cushioning material from the discharge chute and place it in the carton
Turn off the machine and unplug it after use; clean blades if material jams

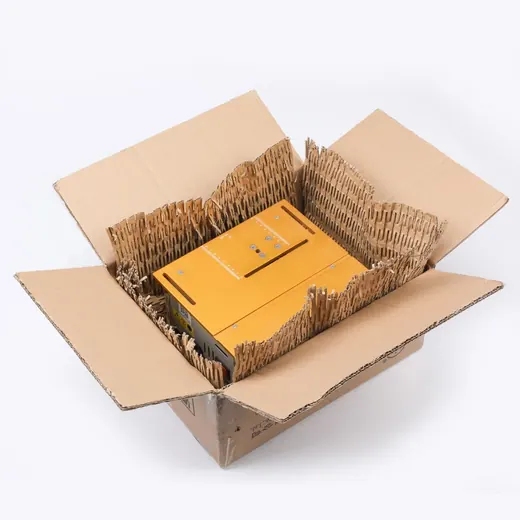

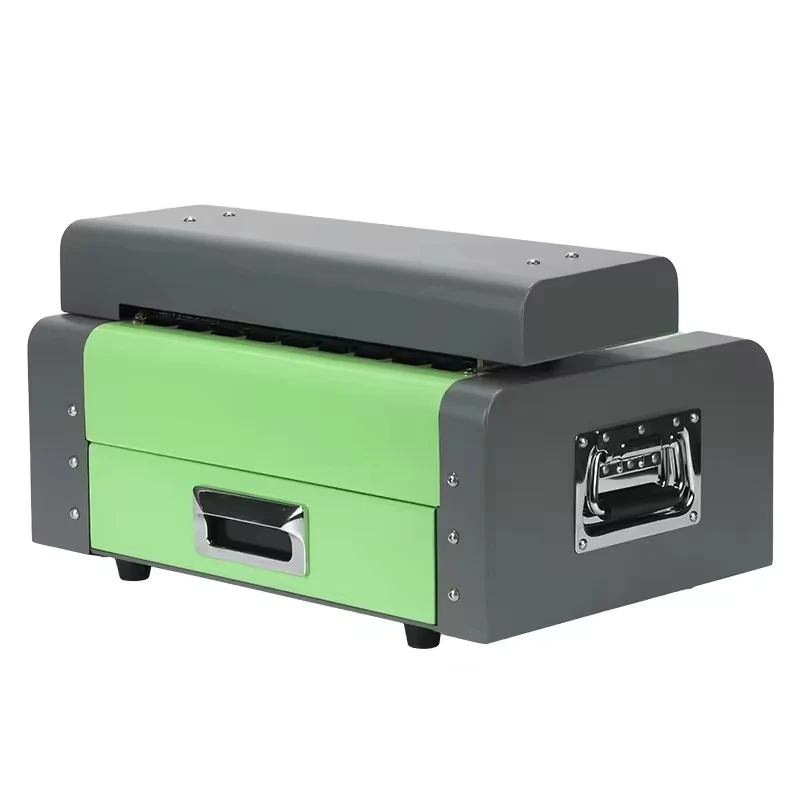

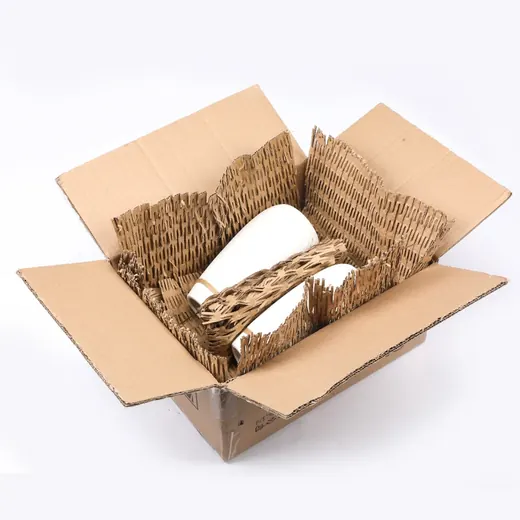

425mm Cutting Width Carton Shredding Machine in Detail
Photographs of the actual product as supplied, not renders.
425mm Cutting Width Carton Shredding Machine Questions
What is the maximum thickness of cardboard this machine can cut?
The machine can handle corrugated cardboard up to 10 mm thick.
Can I adjust the cutting width?
The cutting width is fixed at 425 mm. For smaller widths, please contact us for custom options.
What power supply does the machine require?
The machine operates on 110 / 220V, 50–60 Hz power, suitable for most global facilities.
How fast does the machine run?
The machine runs at 3 meters per minute, providing consistent output during packing shifts.
Is the machine noisy during operation?
The machine operates at low noise levels, suitable for indoor warehouse use.
Can I get a custom paint color for the machine?
Yes, custom paint color is available on request for brand integration.
How is the machine packed for export?
The machine ships in a carton measuring 65 x 44 x 36.5 cm with a gross weight of 37.5 kg.
