Vacuum Mixer for Battery Research
This vacuum mixer is an efficient device that integrates vacuum mixing and dispersion. It is suitable for the mixing process of positive and negative electrode slurry in battery experiments, as well as the mixing of powdery materials and various ceramics. Since the mixing is carried out in a vacuum, it completely...
Introduction
This vacuum mixer is an efficient device that integrates vacuum mixing and dispersion. It is suitable for the mixing process of positive and negative electrode slurry in battery experiments, as well as the mixing of powdery materials and various ceramics. Since the mixing is carried out in a vacuum, it completely eliminates bubbles, thereby improving the material’s fillability and the model’s density.
Key Features and Benefits
- Built-in vacuum pump for space saving purpose.
- Volume of mixing container can be optional.
- Mixing time is adjustable.
- Mixing speed is adjustable according to users actual requirement.
- Wide application.
Key Parameters of Vacuum Mixer
- Stirring Speed: 320 rpm

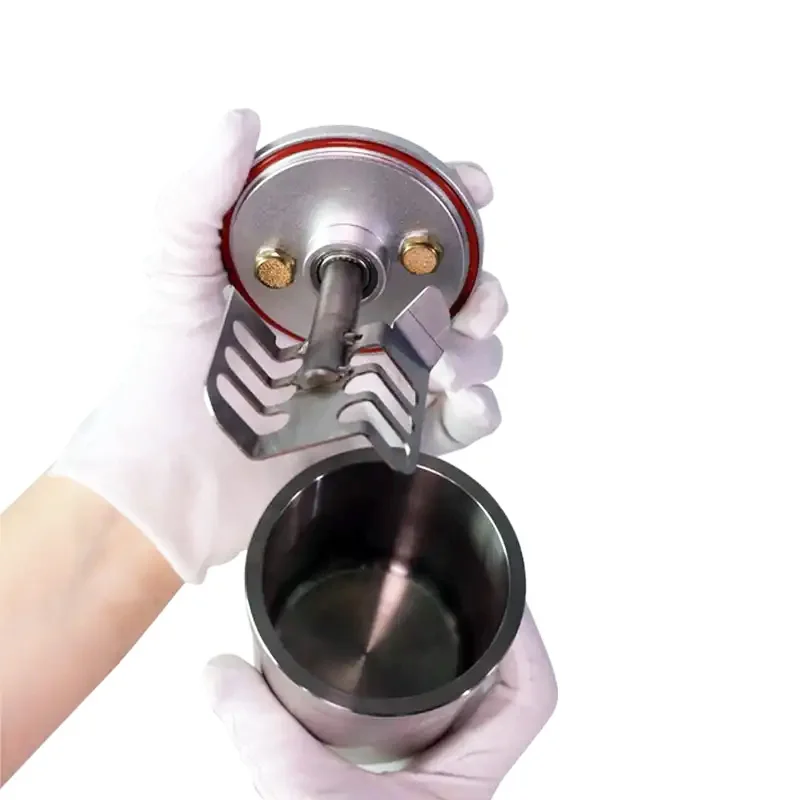

- Mixing Blade: Single-axis fan-shaped mixing blade
- Vacuum Degree: Above -80 KPa
- Effective Volume: Equipped with one 250ml tank; (can be configured with other specifications)
- Timer Function: Adjustable time setting from 0 to 99.99 hours
- Equipped with: Vacuum gauge, vacuum suction port, etc.
- Rated Power: 150W, 220V
- Total Weight: 15kg
- Overall Dimensions: 330mm × 310mm × 510mm (length × width × height)
Applications
This vacuum mixer is an efficient device that integrates vacuum mixing and dispersion. It is suitable for the mixing process of positive and negative electrode slurry in battery experiments, as well as the mixing of powdery materials and various ceramics.
