Three Dimensional Motion Mixer
Three-Dimensional Motion Mixers are widely used in the efficient mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and various scientific research units. The 3D mixer is to eliminate the phenomenon of...
Applications
Three-Dimensional Motion Mixers are widely used in the efficient mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and various scientific research units.
Introduction
Three-Dimensional Motion Mixer is the charging cylinder driven by the main shaft, makes the compound motion such as translation, rotation and rolling, which urges the material to make three-way composite motion along the cylinder, so as to realize the mutual flow, diffusion, accumulation and doping of various materials, so as to achieve the purpose of uniform mixing.
The multi-direction movement of the mixing cylinder, no centrifugal force of the material, incomparable gravity segregation and stratification, accumulation phenomenon, mixing rate of more than 99%, is a more ideal product in various mixers.
Not only does the design of high-value design, structure and system improve efficiency and performance more effectively, the application of noise control patent technology brings more comfortable and safe use experience
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Product Name | Lab Three-Dimensional Motion Mixer | ||
|---|---|---|---|
| Model | MM-5L | MM-10L | MM-20L |
| Capacity | 5L | 10L | 20L |
| Available capacity | 50-70% of grinding tank | ||
| Optimal mixing capacity | Not less than 10% of grinding tank | ||
| Load Weight Limits | 20kg | ||
| Mixing time | 0-99H | ||
| Suitable for mixing materials | Powder | ||
| Time Range | 0-99H | ||
| Tube material | 304L | ||
| Thickness of barrel | 2mm | ||
| Thickness of seal plate | 1.5mm | ||
| Support internal motor plate | 10mm | ||
| Power | 1KW | ||
| power of motor | 0.75KW | ||
| Reduction box | WPDA-70 | ||
| Speed of main-shaft | 13 RPM | ||
| Electrical protection grade | 3 grade | ||
| self-aligning bearing | UCP-35 | ||
| Dimension | 800*800*800 | ||
| Distance of outlet from ground | 350 | ||
| Import and Export Dimensions | 110 | ||
| Driving mode | Gear reducer direct transmission | ||
| Weight | 120KG | 130KG | 145KG |

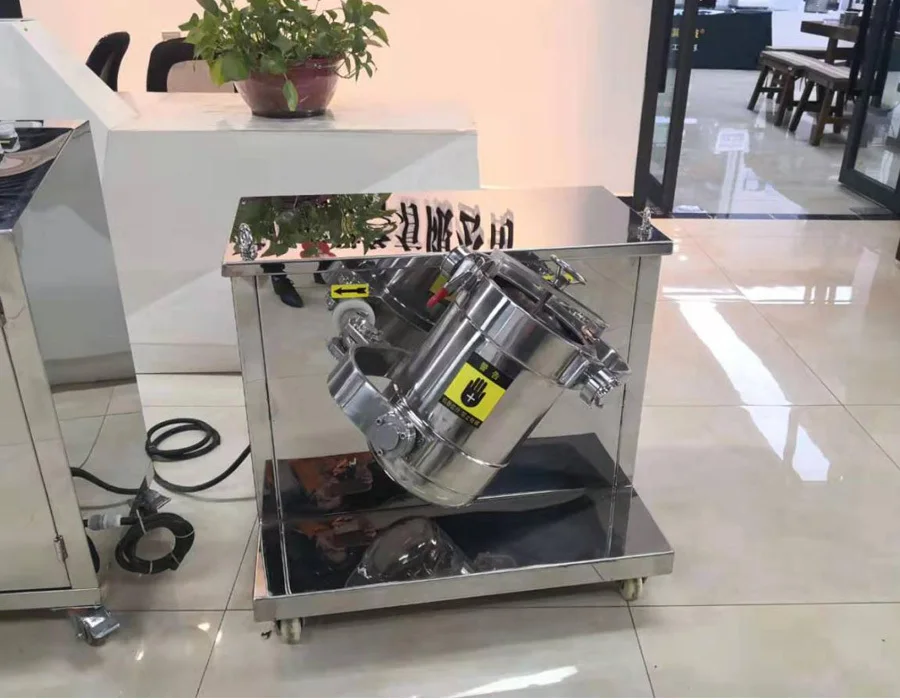

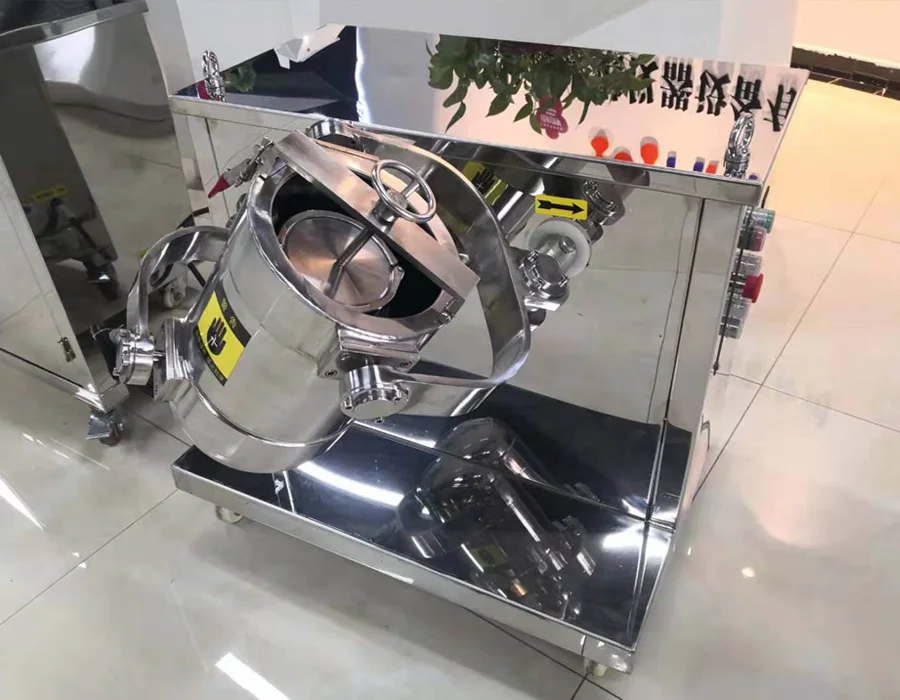

Three Dimensional Motion Mixer In Detail
