2L Bench-Top 3D Powder Mixer – Uniform Mixing for Laboratory Powders
The ZYLAB 2L Bench-Top 3D Powder Mixer is designed for fast, uniform, and contamination-free mixing of powders and granules in laboratory environments. It can blend powder components with different densities and particle sizes evenly, making it ideal for small-batch, high-precision mixing applications. Equipped with...
Product Overview
The ZYLAB 2L Bench-Top 3D Powder Mixer is designed for fast, uniform, and contamination-free mixing of powders and granules in laboratory environments. It can blend powder components with different densities and particle sizes evenly, making it ideal for small-batch, high-precision mixing applications.

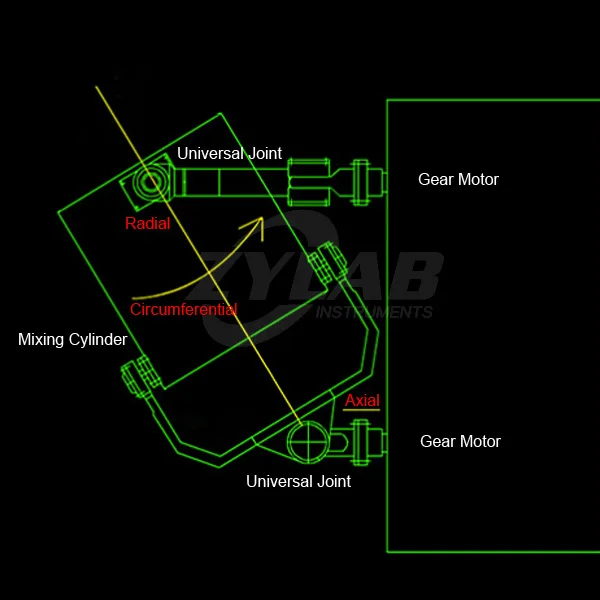

Equipped with three-dimensional motion—translation, rotation, and tumbling—the mixer ensures excellent material diffusion and flowability. Its high-efficiency mixing performance allows for extremely short mixing times, and it supports a variety of container sizes and shapes.
Key Features
1. Bench-Top Design
Compact size for easy placement on laboratory benches
Ideal for laboratory-scale experiments and small-batch mixing
2. True 3D Mixing Motion
Combines translation, rotation, and tumbling for uniform mixing
Prevents segregation, layering, and accumulation of powders
Achieves rapid and even blending for powders of varying densities and particle sizes
3. Adjustable Speed & Timer
LCD touchscreen control for speed adjustment
Programmable timer (0–99 hours)
Ensures repeatable and precise mixing results
4. High Mixing Efficiency
Effective loading capacity up to 70% of cylinder volume
Fully polished mixing canister for smooth discharge and easy cleaning
Arc-shaped interior eliminates powder residue
Compatible with containers of different sizes and shapes
5. Safe & Quiet Operation
Automatic stop when the safety cover is opened
Low-noise design suitable for laboratory environments
Stable and reliable operation
Applications
The ZYLAB 2L Bench-Top 3D Powder Mixer is ideal for:
Laboratory formulation development
Pharmaceutical powders and excipients
Chemical powders and raw materials
Ceramic and metal powders
Food ingredients and nutritional powders
Electronic and battery materials
University and research institute laboratories
Why Choose ZYLAB Bench-Top 3D Powder Mixer?
Evenly mixes powders of different densities and particle sizes
Fast, efficient, and contamination-free
Supports multiple container sizes and shapes
Compact bench-top design suitable for laboratory experiments
Easy to operate, clean, and maintain
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M-2L |
|---|---|
| Total Volume | 2 L |
| Effective Loading Volume | ≤70% |
| Optimal Loading Volume | ≥10% |
| Maximum Load Capacity | ≤3 kg |
| Main Shaft Speed | 120 rpm |
| Timing Range | 0–99 h |
| Power | 0.37 kw |
| Voltage | AC 220 V, 50/60 Hz |
| Weight | 67.5 kg |
| Dimensions (L×W×H) | 644 × 474 × 397 mm |
