2L & 5L High Performance Lab-Scale 3D Shaker Mixer
The ZYLAB 5L Lab-Scale 3D Shaker Mixer is designed for efficient, uniform, and contamination-free mixing of powders and granules in research laboratories and small-batch experiments. Unlike the 2L tabletop model, the 5L version is floor-standing and comes with anti-vibration foot pads and stabilizing support stands,...
Introduction
The ZYLAB 5L Lab-Scale 3D Shaker Mixer is designed for efficient, uniform, and contamination-free mixing of powders and granules in research laboratories and small-batch experiments. Unlike the 2L tabletop model, the 5L version is floor-standing and comes with anti-vibration foot pads and stabilizing support stands, ensuring stable operation during continuous mixing.
Using true three-dimensional motion—radial, circumferential, and axial—the mixer prevents powder segregation, layering, and dead zones, achieving a mixing uniformity above 99%. It is ideal for laboratory R&D, small pilot formulations, and material testing.
1. Advanced 3D Motion Mixing
True 3D movement including translation, rotation, and tumbling
No dead zones, no centrifugal separation
Ensures complete material diffusion and ultra-uniform mixing
2. High Mixing Capacity & Efficiency
Up to 70% loading capacity
Mixing uniformity ≥99%
Short mixing time with low energy consumption
3. Precision Built for Laboratory Use

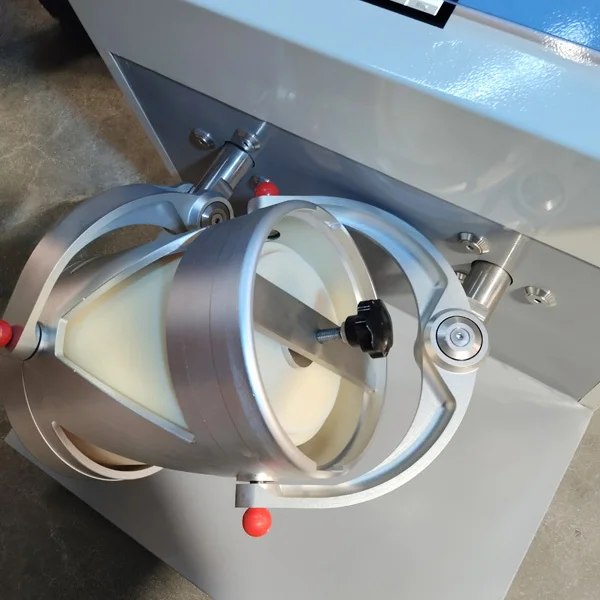

Internally polished mixing canister with arc-shaped transitions
Smooth discharge, easy cleaning, and no material residue
Fully sealed dry powder canister prevents contamination and sample loss
4. Intelligent Control System
LCD touchscreen panel with adjustable speed
Programmable timer (0–99 hours)
Automatic stop function when safety cover is opened
5. Safe & Low-Noise Operation
Built-in safety protection system
Sound-insulation and noise-reduction design
Stable operation with minimal vibration
Applications
The ZYLAB 5L 3D Shaker Mixer is suitable for medium-volume powder blending in:
Pharmaceutical research & formulation
Chemical raw materials
Food and nutritional powders
Ceramic and metal powders
Additive manufacturing materials
Electronics and battery materials
Geological and mineral laboratories
University & research institute laboratories
Why Choose ZYLAB 3D Shaker Mixer?
Designed for professional laboratories and research centers
High accuracy, reliability, and long service life
Ideal for powder uniformity testing, formulation development, and small-batch sample preparation
Supports custom canister materials upon request
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M-5L |
|---|---|
| Total Volume | 5 L |
| Effective Loading Volume | ≤70% |
| Optimal Loading Volume | ≥10% |
| Maximum Load Capacity | ≤5 kg |
| Main Shaft Speed | 90 rpm |
| Timing Range | 0–99 h |
| Power | 0.75 kw |
| Voltage | AC 220 V, 50/60 Hz |
| Weight | 155 kg |
| Dimensions (L×W×H) | 628 × 845 × 630 mm |
2L & 5L High Performance Lab-Scale 3D Shaker Mixer In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Guides
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
2L Laboratory High-Performance 3D Shaker Mixer for Rapid and Uniform Small Batch Powder Mixing
ZYLAB 3D Tumbler Mixer | Laboratory Powder Mixing Equipment
2L Bench-Top 3D Powder Mixer – Uniform Mixing for Laboratory Powders
Laboratory 3D Powder Shaker Mixer with Dry Powder Canister
Vacuum Mixer for Battery Research
Dual-Shaft Planetary Vacuum Mixer
Three Dimensional Motion Mixer
V-shaped Mixer
Ordering 2L & 5L High Performance Lab-Scale 3D Shaker Mixer
What is 2L & 5L High Performance Lab-Scale 3D Shaker Mixer typically used for?
The ZYLAB 5L Lab-Scale 3D Shaker Mixer is designed for efficient, uniform, and contamination-free mixing of powders and granules in research laboratories and small-batch experiments. Unlike the 2L tabletop model, the 5L version is floor-standing and comes with
Can 2L & 5L High Performance Lab-Scale 3D Shaker Mixer be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with 2L & 5L High Performance Lab-Scale 3D Shaker Mixer?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for 2L & 5L High Performance Lab-Scale 3D Shaker Mixer?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is 2L & 5L High Performance Lab-Scale 3D Shaker Mixer packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Quote For 2L & 5L High Performance Lab-Scale 3D Shaker Mixer
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
