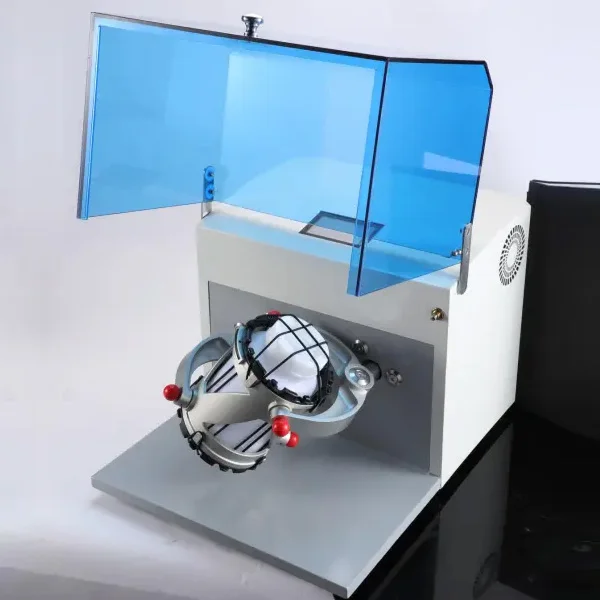

2L Laboratory High-Performance 3D Shaker Mixer for Rapid and Uniform Small Batch Powder Mixing
The ZYLAB 2L Laboratory High-Performance 3D Shaker Mixer is a compact and efficient mixing solution designed for rapid and uniform blending of small batch powders. By utilizing advanced three-dimensional motion technology, this mixer ensures high homogeneity without segregation, making it ideal for laboratory...
Product Overview
The ZYLAB 2L Laboratory High-Performance 3D Shaker Mixer is a compact and efficient mixing solution designed for rapid and uniform blending of small batch powders. By utilizing advanced three-dimensional motion technology, this mixer ensures high homogeneity without segregation, making it ideal for laboratory research, material development, and small-scale production.
This equipment is widely used in industries such as materials science, chemical engineering, pharmaceuticals, ceramics, and powder metallurgy, where precise and consistent mixing performance is required.
For users requiring larger processing capacity, the 5L High Performance Lab-Scale 3D Shaker Mixer is also available, offering the same advanced 3D motion technology with enhanced batch volume for medium-scale applications.
Working Principle
The mixing vessel performs a continuous three-dimensional motion, driven by the main shaft, including translation, rotation, and tumbling movements. This composite motion enables materials inside the container to move in multiple directions simultaneously, achieving:
- High-frequency circulation and diffusion
- Effective dispersion and interpenetration of materials
- Uniform blending without dead corners
Unlike traditional mixers, the 3D motion eliminates centrifugal force effects, preventing material stratification, segregation, or accumulation. The mixing uniformity can reach over 99%, ensuring excellent consistency.
Key Features
- 3D Full-Directional Mixing: Combined translation, rotation, and tumbling motion for no dead angles
- High Efficiency: Main shaft speed up to 120 rpm for fast mixing
- High Loading Capacity: Effective loading rate up to 70%
- Stable Transmission System: Direct-coupled reducer drive for low maintenance cost
- Smart Control System: LCD touchscreen interface with programmable time and speed settings
- Safe Operation: Automatic stop when protective cover is opened
- Low Noise Design: Stable and quiet operation suitable for laboratory environments
Advantages
- Achieves uniform mixing of powders with different particle sizes and densities
- Suitable for dry-dry and liquid-liquid mixing applications
- Fully sealed mixing containers prevent dust leakage and contamination
- Customizable container size and material options available
- Mixing basket automatically returns to loading position after operation stops
- Easy-to-change container holder for quick sample replacement
Applications
- Laboratory powder mixing and material research
- Pharmaceutical powder formulation
- Ceramic and advanced material development
- Chemical compound blending
- Small batch R&D production
- Battery material preparation
For More Information on Jet Mill
Powder Mixing in Laboratory Battery Research: Methods, Challenges, and Best Practices
How To Avoid Powder Agglomeration And Segregation During Additive Manufacturing Material Preparation
Case Showcase
Supplies 5L High-Speed 3D Shaker Mixer To European Additive Manufacturing Company
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M-2L |
|---|---|
| Total Volume | 2 L |
| Effective Loading Volume | ≤70% |
| Optimal Loading Volume | ≥10% |
| Maximum Load Capacity | ≤3 kg |
| Main Shaft Speed | 120 rpm |
| Timing Range | 0–99 h |
| Power | 0.37 kw |
| Voltage | AC 220 V, 50/60 Hz |
| Weight | 67.5 kg |
| Dimensions (L×W×H) | 644 × 474 × 397 mm |
2L Laboratory High-Performance 3D Shaker Mixer for Rapid and Uniform Small Batch Powder Mixing In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Guides
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
ZYLAB 3D Tumbler Mixer | Laboratory Powder Mixing Equipment
2L Bench-Top 3D Powder Mixer – Uniform Mixing for Laboratory Powders
2L & 5L High Performance Lab-Scale 3D Shaker Mixer

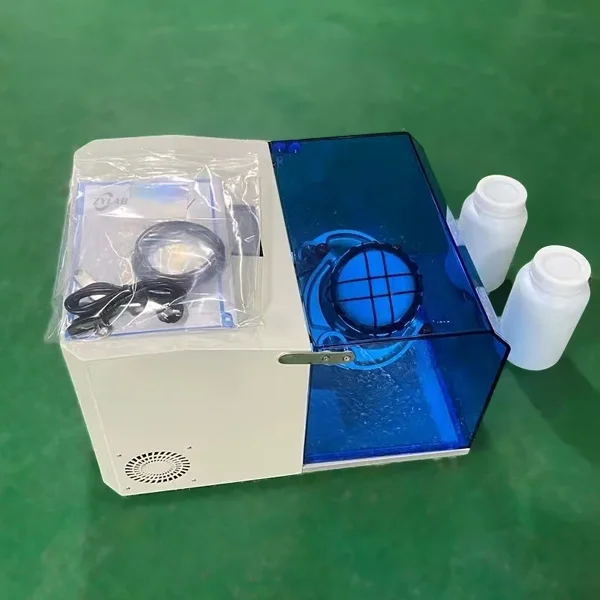

Laboratory 3D Powder Shaker Mixer with Dry Powder Canister
