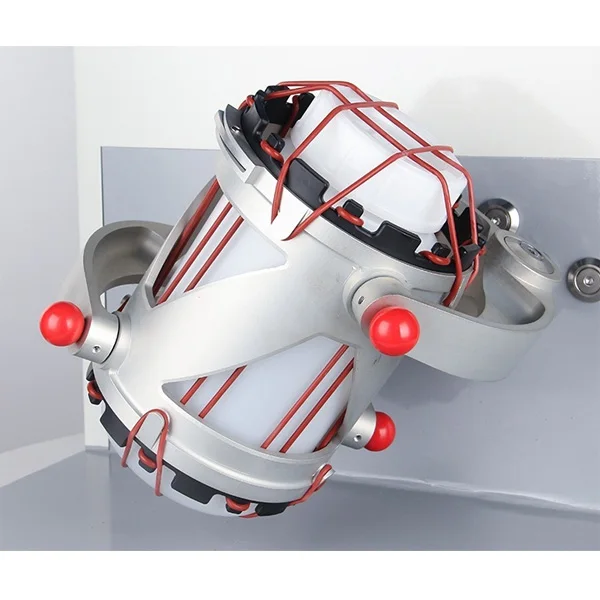

The ZYLAB 3D Tumbler Mixer is a laboratory-grade mixing system designed for fast, uniform, and contamination-free mixing of powders and granules. By utilizing true three-dimensional tumbling motion—including radial, circumferential, and axial movement—the mixer ensures excellent material diffusion and flowability...
Product Overview
The ZYLAB 3D Tumbler Mixer is a laboratory-grade mixing system designed for fast, uniform, and contamination-free mixing of powders and granules. By utilizing true three-dimensional tumbling motion—including radial, circumferential, and axial movement—the mixer ensures excellent material diffusion and flowability while completely eliminating segregation, layering, and dead zones.
This 3D tumbler mixer is ideal for small-batch, high-precision mixing applications and is widely used in pharmaceuticals, chemicals, food, ceramics, electronics, metallurgy, additive manufacturing, and academic research laboratories.
Key Features
1. True 3D Tumbling Motion
Simultaneous translation, rotation, and inversion
No centrifugal force, no material stratification
Ensures complete and uniform mixing in all directions
2. Fast & Uniform Mixing Performance
Achieves fast, homogeneous, and contamination-free blending
Excellent performance for powders with different densities and particle sizes
Mixing uniformity up to 99%
3. Smart Speed & Time Control
Adjustable rotation speed
Programmable timer for repeatable mixing processes
Suitable for R&D, formulation testing, and small pilot trials
4. Safe & Quiet Operation
Safety cover with automatic stop function
Low-noise design for laboratory environments
Stable operation with minimal vibration
Typical Working Principle
The mixer drives the container to perform three-dimensional tumbling motion, allowing powder and granule materials to move freely in all directions. This continuous 3D movement enables efficient mutual diffusion, inter-particle flow, and random redistribution, ensuring highly uniform blending without centrifugal separation.
Applications
The ZYLAB 3D Tumbler Mixer is ideal for mixing:
Pharmaceutical powders & excipients
Chemical raw materials
Food ingredients & nutritional powders
Ceramic and metal powders
Battery and electronic materials
Additive manufacturing powders
Geological and mineral samples
University & research institute laboratory materials
Why Choose ZYLAB 3D Tumbler Mixer?
Designed specifically for laboratory and R&D use
High mixing uniformity for precision experiments
Fast mixing speed with low energy consumption
Easy to operate, clean, and maintain
Reliable long-term performance
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M-2L | M-5L |
|---|---|---|
| Total Volume | 2 L | 5 L |
| Effective Loading Volume | ≤70% | ≤70% |
| Optimal Loading Volume | ≥10% | ≥10% |
| Maximum Load Capacity | ≤3 kg | ≤5 kg |
| Main Shaft Speed | 120 rpm | 90 rpm |
| Timing Range | 0–99 h | 0–99 h |
| Power | 0.37 kW | 0.75 kW |
| Voltage | AC 220 V, 50/60 Hz | AC 220 V, 50/60 Hz |
| Weight | 67.5 kg | 155 kg |
| Dimensions (L × W × H) | 644 × 474 × 397 mm | 628 × 845 × 630 mm |
| Installation Type | Bench-Top | Floor-Standing |
| Stability Design | Standard Base | Foot Pads + Support Stands |
