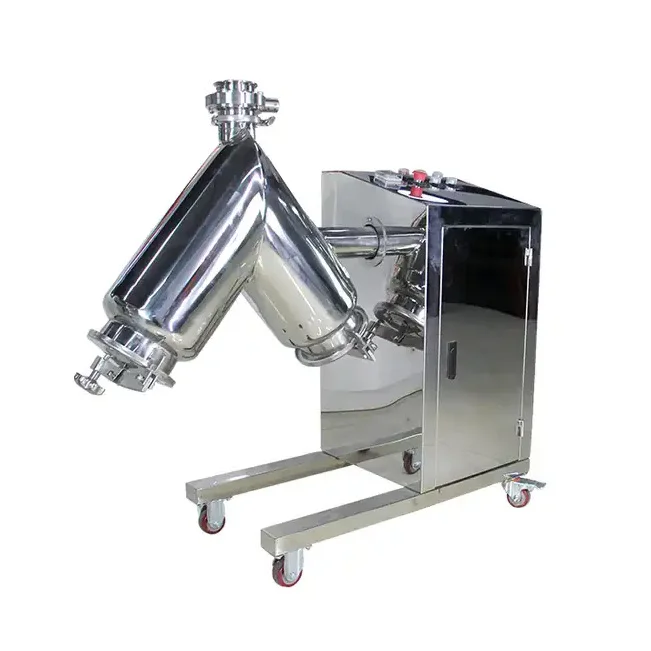

V-shaped Mixer
V shape mixer are widely used in the efficient mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and various scientific research units. The three-dimensional mixer is to eliminate the phenomenon of...
Applications
V shape mixer are widely used in the efficient mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and various scientific research units.
Introduction
V shape mixer is the charging cylinder driven by the main shaft, makes the compound motion such as translation, rotation and rolling, which urges the material to make three-way composite motion along the cylinder, so as to realize the mutual flow, diffusion, accumulation and doping of various materials, so as to achieve the purpose of uniform mixing. The multi-direction movement of the mixing cylinder, no centrifugal force of the material, incomparable gravity segregation and stratification, accumulation phenomenon, mixing rate of more than 99%, is a more ideal product in various mixers. The product has a large barrel loading rate, up to 90%(the ordinary mixer is only 40%), high efficiency and short mixing time. All parts of the cylinder are over-circular, after precision polishing treatment.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Name: | Lab V-shape Mixer | ||||
|---|---|---|---|---|---|
| Model: | V-5L | V-10L | V-20L | V-50L | V-100L |
| Capacity | 5L | 10L | 20L | 50L | 100L |
| Useful capacity | 40-50% of tank | ||||
| Mixing useful capacity | Not less than 10% of tank solvent | ||||
| Load weight limit | Within 20kg | 30kg | |||
| Mixing time | 0-99H | ||||
| Suitable for mixing materials | Powder | ||||
| Timing time range | 0-99H | ||||
| Cylinder material | 304 stainless steel | ||||
| Material barrel thickness | 2mm | ||||
| Seal thickness | 1.5mm | ||||
| Power | 1KW | ||||
| Power of motor | 0.75KW | ||||
| Reduction box | WPDA-70 | ||||
| RPM of main shaft | 13rpm | ||||
| Electrical Protection Grade | 3 grade | ||||
| Self-aligning bearing | UCP-35 | ||||
| Dimension | 800*800*800 | ||||
| The height of discharge port from ground | 350 | ||||
| The dimension of in/out feed port | 110 | ||||
| Driving style | Speed reducer direct transmission | ||||
| Weight | 120KG | 130KG | 145KG |

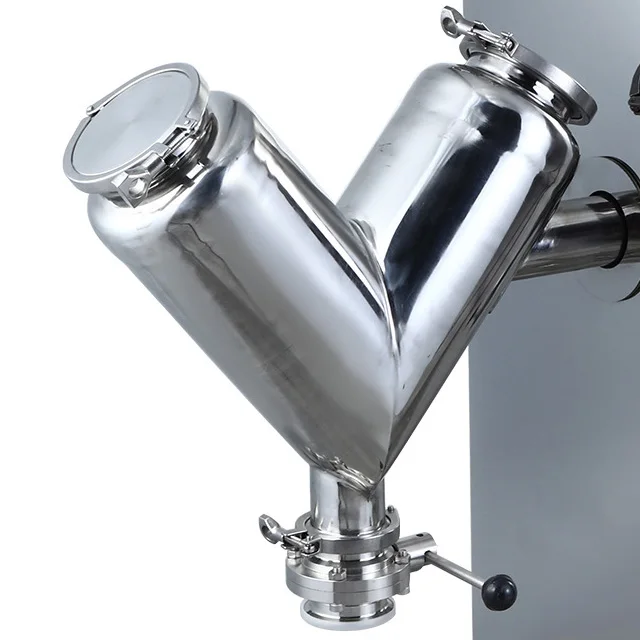

V-shaped Mixer In Detail
