WPC Wall Panel Interior WW-IN19515
WW-IN19515 interior WPC wall panel, 195mm wide, 2900mm long, 15mm and 23mm thick with laminated veneer and side slotting. Waterproof flame retardant wall panels.
Product Overview
WW-IN19515 is a 195mm wide interior WPC panel at 2900mm length, offered in 15mm and 23mm thicknesses or customized, with a laminated wood veneer surface, hot and cold pressing and side slotting. The deeper 23mm option throws a strong shadow across the wall, which is what designers ask for when a reception or feature wall has to read from a distance.
Key Benefits
- 23mm depth option gives a pronounced shadow line on feature walls
- 195mm module balances coverage speed with a well proportioned flute
- Side slotted edges keep the panel run aligned over long walls
- Laminated veneer surface arrives finished, with no site coating
- Waterproof and flame retardant for commercial specification
At A Glance
- Family
- Wall Panels
- Category
- Indoor WPC Wall Panel
- Type
- WPC Wall Panel Interior WW-IN19515
- Length
- 2900mm or customized
- Width
- 195mm or customized
- Thickness
- 15mm, 23mm or customized

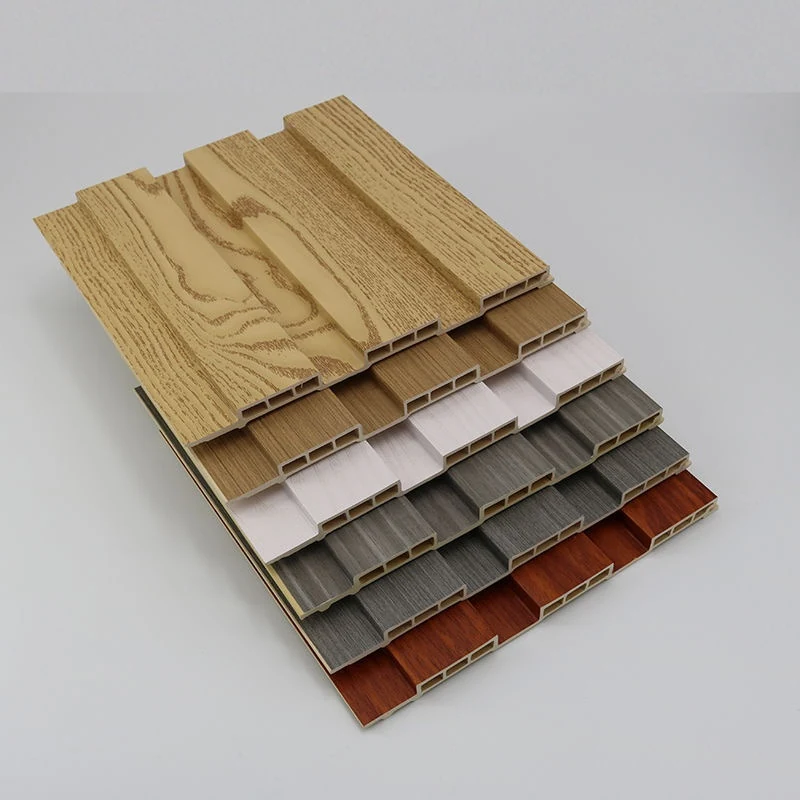

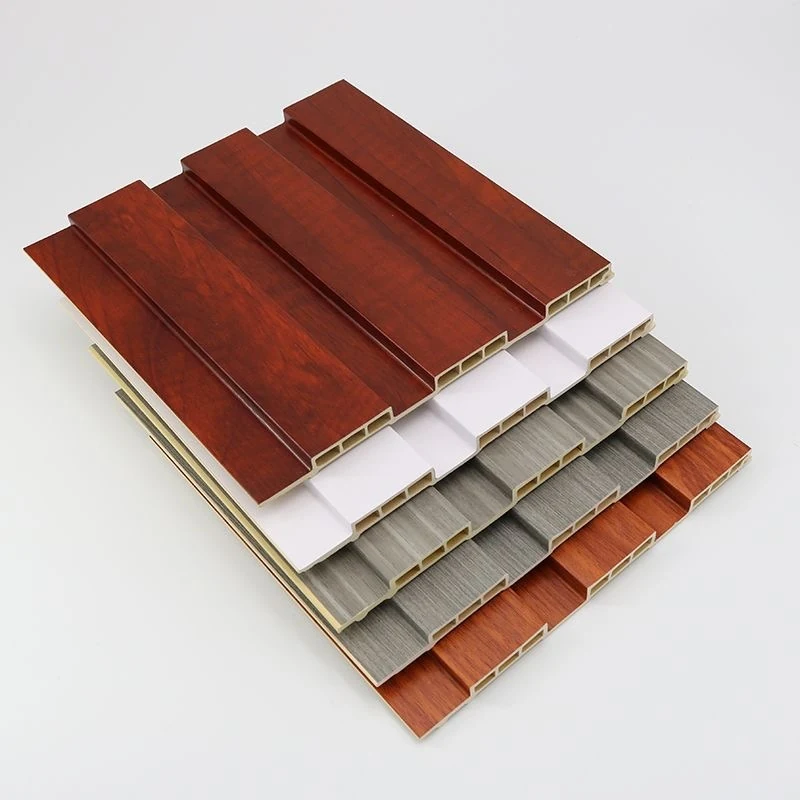

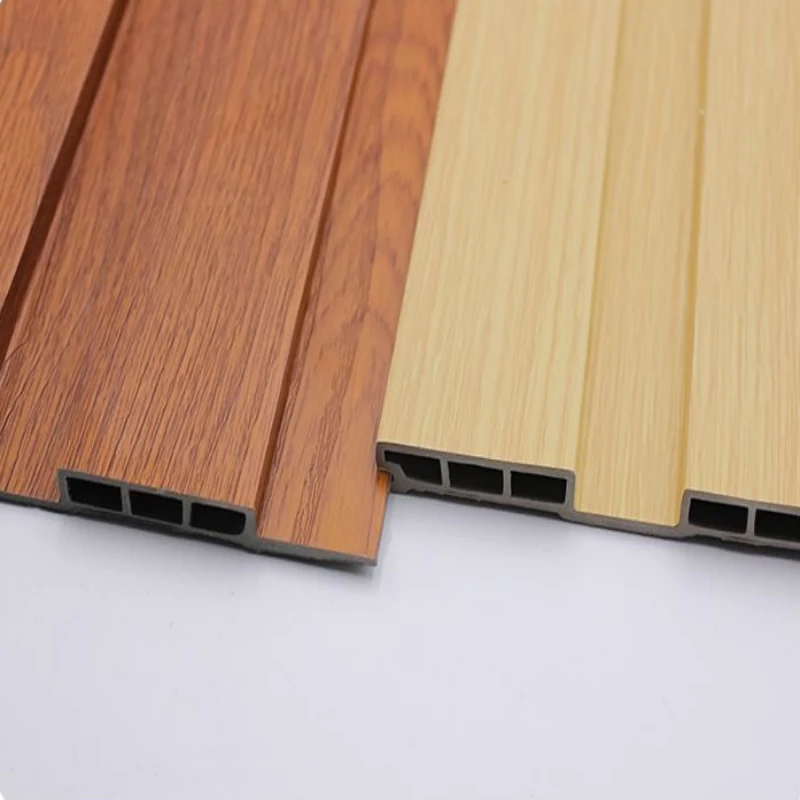

The Profile The Surface And The Finish Options
These are the manufacturer's own photographs of this product, reproduced as published: the section, the surface finish and the colour options that were photographed together. Nothing here is a rendering.
Who It Is For
- Designers and fit-out buyers who need visible relief and depth on a wall, not just a flat wood facing.
Problems It Solves
- Flat panelling that disappears under lighting and loses its design intent
- Site built slat walls that take carpentry hours and never line up
- Panel runs drifting out of alignment over a long wall
- Interior wood finishes ruled out on flame retardancy grounds
Application Scenarios
- Reception and feature walls
- Hotel public areas
- Restaurant and bar interiors
- Office breakout spaces
- Residential TV and headboard walls
Technical Features
- Type: WPC Wall Panel Interior WW-IN19515.
- Length: 2900mm or customized.
- Width: 195mm or customized.
- Thickness: 15mm, 23mm or customized.
- Material: Wood plastic composite.
- Process: Lamination surface, hot and cold pressing, side slotting.
- Performance: Waterproof, flame retardant.
Published Specification
Every row below is reproduced from the manufacturer's published specification for this range. Rows shown in italics are figures the specification does not publish; those are confirmed in writing rather than estimated here.
| Type | WPC Wall Panel Interior WW-IN19515 |
| Length | 2900mm or customized |
| Width | 195mm or customized |
| Thickness | 15mm, 23mm or customized |
| Material | Wood plastic composite |
| Process | Lamination surface, hot and cold pressing, side slotting |
| Performance | Waterproof, flame retardant |
Use Guide
- Start from a plumb line, engage each side slot, fix to the wall or battens and finish with matching corner and end trims.
- Keep grain direction consistent.
Quality Control
- Panel depth verified at the ordered 15mm or 23mm
- Side slot fit tested panel to panel before packing
- Veneer lamination checked for adhesion and colour match
- Straightness checked along the full 2900mm length
Materials
- Wood plastic composite body in the 195mm wide section.
- Laminated veneer surface bonded by hot and cold pressing.
- Side slotted edges, in 15mm and 23mm depths.
Manufacturing Process
- ['Extrusion', 'A section that drifts mid-run turns into cutting waste and joints that will not close on site.', 'The wood flour and polymer compound is extruded through the profile die and pulled to the published section.']
- ['Hot and cold pressing', 'A veneer that lifts at the edge shows up months after the wall is handed over.', 'The decor veneer is laminated to the panel face and bonded under hot then cold pressing.']
- ['Side slotting', 'Butt joints open and show a shadow line; a slotted edge holds the run in line.', 'The panel edges are machined with the interlocking side slot after pressing.']
- ['Inspection', 'A dimension checked after packing is a dimension checked too late.', 'Section, colour and surface are checked against the order spec during the run, not only at the end.']
- ['Packing and loading', 'Edge damage in transit is the most common reason a panel order is rejected on arrival.', 'Boards are bundled, film wrapped or cartoned and palletised for container loading.']
Certification Standards
Production follows . Certificates are sent per product on request rather than posted publicly, because the documents a shipment needs depend on the destination market.
Customisation Options
- 15mm or 23mm depth, or a specified profile
- Width and length cut to the wall module
- Veneer colour and texture selection
- OEM packaging and sample pieces
How It Compares With The Alternatives
A technical comparison against other ways of solving the same problem. Nothing here is a performance claim against a named competitor product.
| Against the alternative material | Against WW-IN19612 at 12mm, this panel goes deeper at 15mm and 23mm for more relief. Against the 160mm panels, the 195mm module covers wall area faster. |
| Against a panel sold without a published section | This product publishes 195mm or customized. A supplier quoting a range name and a photograph is asking you to discover the section after the container arrives, which is where cutting waste and joints that will not close come from. |
| Against a quotation that does not state the material | The blend here is published as Wood plastic composite. Two quotations cannot be compared until both state what is actually in the board. |
| Against the rest of this range | See the Indoor WPC Wall Panel page for what this range does that the others do not, and the related products below for the nearest alternatives. |
WPC Wall Panel Interior WW-IN19515 Questions
How wide is this panel?
What depths are available?
Which option gives a deeper shadow?
How is the surface made?
Is the panel flame retardant?
Do you supply matching trims?
Products Buyers Shortlist Alongside This One
WPC Wall Panel Interior WW-IN16023
WW-IN16023 interior WPC wall panel, 160mm wide, 15mm deep, 2900mm long with a smooth wood veneer finish. Fluted wall panels for homes offices hotels and malls.
See the specification
WPC Wall Panel Interior WW-IN16015
WW-IN16015 interior WPC wall panel, 160mm wide, 2900mm long, 10mm 15mm and 23mm thicknesses with a smooth wood veneer finish for homes offices and hotels.
See the specification
WPC Wall Panel Interior WW-IN19612
WW-IN19612 interior WPC wall panel, 196mm wide, 2900mm long, 12mm and 20mm thick, side slotted and laminated. Waterproof flame retardant fluted wall panels.
See the specificationGuides That Cover This Product
Where It Has Been Installed
Request WPC Wall Panel Interior WW-IN19515
Send the finished size, the quantity, the mounting and the destination market. A quotation and the full specification come back by email.
