Outdoor WPC Wall Panels
Outdoor WPC wall panels 219x26mm at 2900mm, 60% wood fibre with recycled HDPE and co-extruded fade resistant surface. Exterior cladding for villas hotels offices.
Product Overview
Outdoor WPC wall panels are exterior cladding boards of 60% wood fibre and recycled HDPE, extruded in a 219x26mm section at 2900mm length or customized. Co-extrusion adds a fade resistant skin over the composite body, so a villa or hotel facade keeps its wood look without the painting, sealing and board replacement cycle that timber cladding forces on the building owner.
Key Benefits
- Co-extruded surface for fade resistance under direct sun
- Resists UV, moisture and termites, the three things that end timber cladding
- 219x26mm board covers facade area quickly with a strong shadow line
- 60% wood fibre with recycled HDPE supports sustainable specification
- Wood grain or fluted designs available for different facade languages
At A Glance
- Family
- Wall Panels
- Category
- Outdoor WPC Wall Panels
- Type
- Outdoor WPC Wall Panel
- Dimension
- 219x26mm or customized
- Length
- 2900mm or customized
- Material
- Wood and plastic composite, 60% wood fibre with recycled HDPE

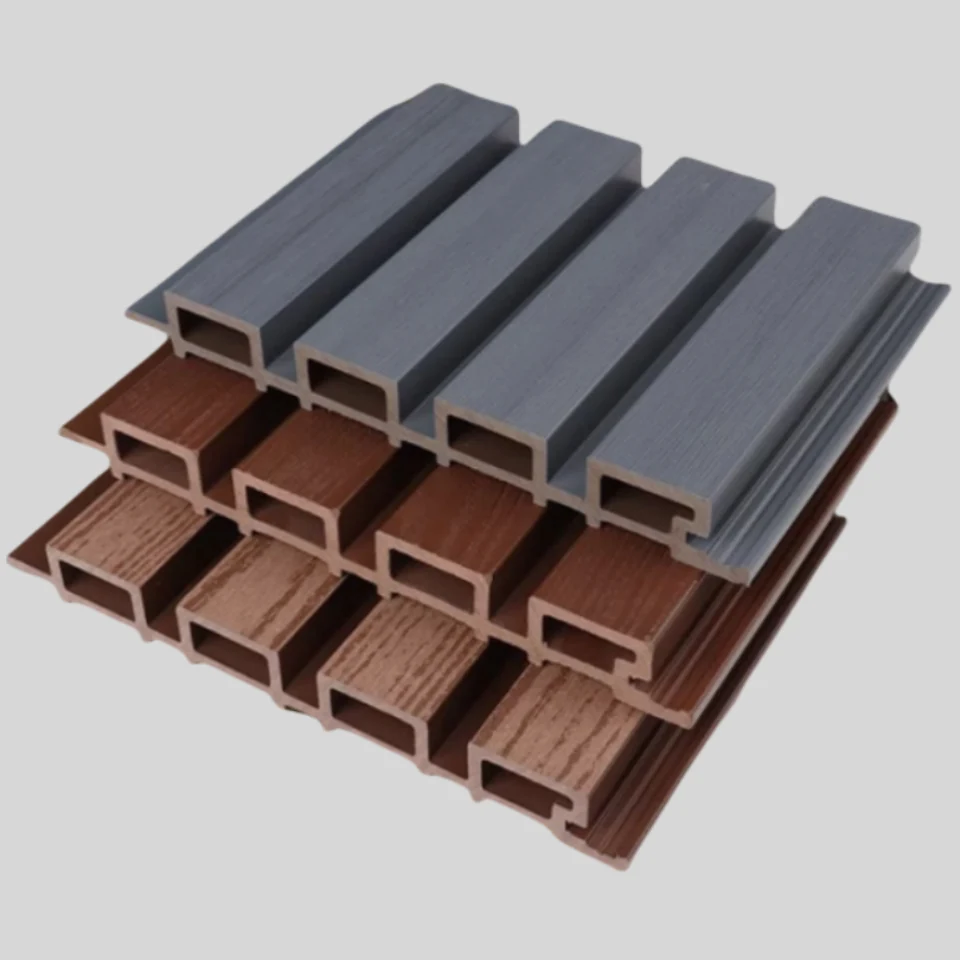

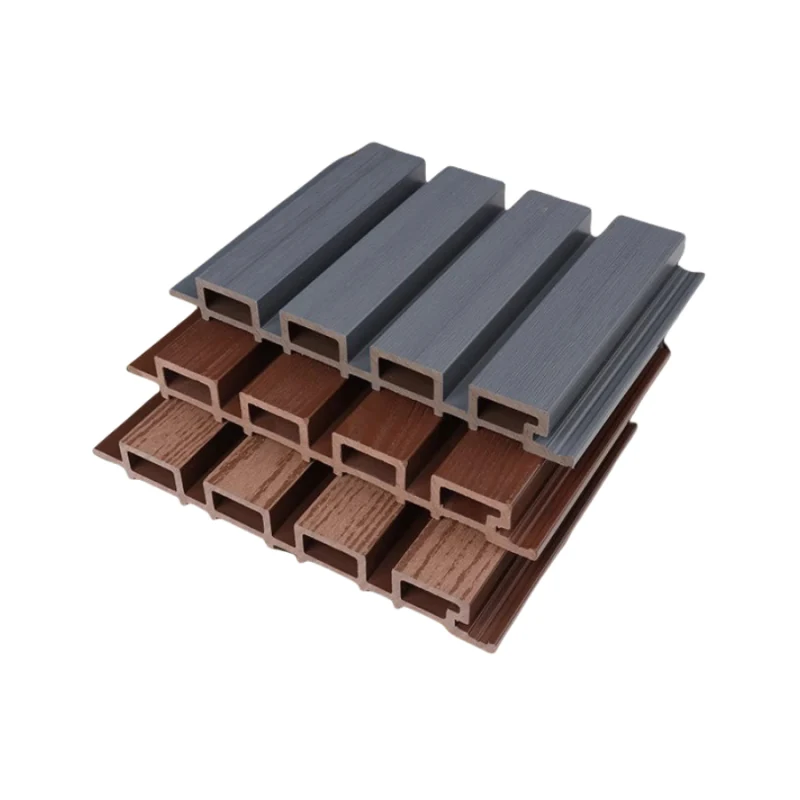

The Profile The Surface And The Finish Options
These are the manufacturer's own photographs of this product, reproduced as published: the section, the surface finish and the colour options that were photographed together. Nothing here is a rendering.
Who It Is For
- Facade contractors, developers and cladding importers who need exterior wall boards with a long service life and effectively no maintenance programme.
Problems It Solves
- Timber cladding that needs repainting and board swaps every few years
- Fading and chalking on exterior panels after the first summer
- Termite and moisture damage on ground floor cladding
- Facade materials that cannot deliver a warm wood look at a controlled cost
Application Scenarios
- Villa and residential facades
- Hotel exteriors and entrance walls
- Office building cladding
- Garden and courtyard walls
- Balcony and terrace wall linings
Technical Features
- Type: Outdoor WPC Wall Panel.
- Dimension: 219x26mm or customized.
- Length: 2900mm or customized.
- Material: Wood and plastic composite, 60% wood fibre with recycled HDPE.
- Process: Co-extrusion.
- Performance: Moisture proof, water resistant, waterproof, eco-friendly, fireproof, anti-termite.
Published Specification
Every row below is reproduced from the manufacturer's published specification for this range. Rows shown in italics are figures the specification does not publish; those are confirmed in writing rather than estimated here.
| Type | Outdoor WPC Wall Panel |
| Dimension | 219x26mm or customized |
| Length | 2900mm or customized |
| Material | Wood and plastic composite, 60% wood fibre with recycled HDPE |
| Process | Co-extrusion |
| Performance | Moisture proof, water resistant, waterproof, eco-friendly, fireproof, anti-termite |
Use Guide
- Fix to a ventilated batten or aluminium substructure with concealed clips, leave expansion gaps at board ends, and keep a drainage cavity behind the boards.
- Rinse clean with water.
Quality Control
- Board section gauged against the 219x26mm profile
- Co-extruded surface layer checked for coverage and uniformity
- Colour matched batch to batch so one facade stays consistent
- Length and squareness checked before bundling
Materials
- 60% wood fibre with recycled HDPE in the board body.
- Co-extruded weather skin over the composite, applied in the same pass.
- Wood grain and fluted surface designs on the 219x26mm section.
Manufacturing Process
- ['Extrusion', 'A section that drifts mid-run turns into cutting waste and joints that will not close on site.', 'The wood flour and polymer compound is extruded through the profile die and pulled to the published section.']
- ['Co-extrusion', 'A surface layer added after the fact peels; one laid down in the same pass does not.', 'The weather resistant skin is co-extruded onto the board body in the same pass as the core.']
- ['Inspection', 'A dimension checked after packing is a dimension checked too late.', 'Section, colour and surface are checked against the order spec during the run, not only at the end.']
- ['Packing and loading', 'Edge damage in transit is the most common reason a panel order is rejected on arrival.', 'Boards are bundled, film wrapped or cartoned and palletised for container loading.']
Certification Standards
Production follows . Certificates are sent per product on request rather than posted publicly, because the documents a shipment needs depend on the destination market.
Customisation Options
- Board section and length outside the standard 219x26mm at 2900mm
- Wood grain or fluted surface design
- Colour matched to your facade scheme
- OEM packaging and project sample boards
How It Compares With The Alternatives
A technical comparison against other ways of solving the same problem. Nothing here is a performance claim against a named competitor product.
| Against the alternative material | Against indoor WPC panels, the outdoor board is thicker and carries the co-extruded weather skin. Against timber cladding, it holds colour and dimensions without a painting cycle. |
| Against a panel sold without a published section | This product publishes 219x26mm or customized. A supplier quoting a range name and a photograph is asking you to discover the section after the container arrives, which is where cutting waste and joints that will not close come from. |
| Against a quotation that does not state the material | The blend here is published as Wood and plastic composite, 60% wood fibre with recycled HDPE. Two quotations cannot be compared until both state what is actually in the board. |
| Against the rest of this range | See the Outdoor WPC Wall Panels page for what this range does that the others do not, and the related products below for the nearest alternatives. |
Outdoor WPC Wall Panels Questions
What is the board section?
What length do you supply?
What is the wood content?
Will the colour fade?
Can it be used for a full building facade?
Do you supply the fixing clips?
Products Buyers Shortlist Alongside This One

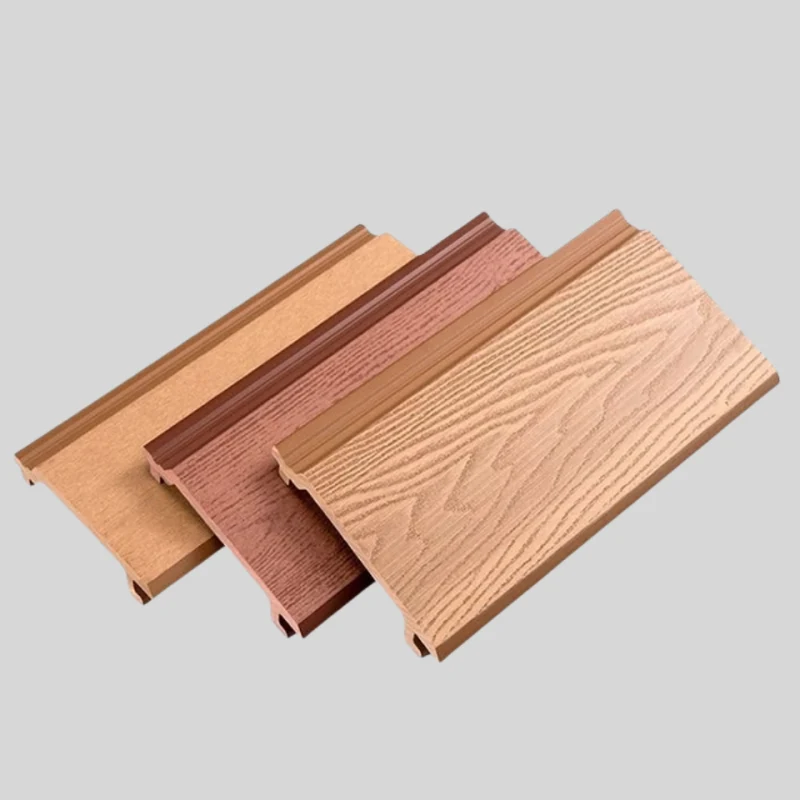

Outdoor WPC Wall Panel Cladding
Outdoor WPC wall panel cladding 156x21mm at 2900mm, high density co-extruded wood plastic composite with UV acid alkali and insect resistance for building facades.
See the specification
Bamboo Charcoal Wall Panel
Formaldehyde-free bamboo charcoal wall panels in 5mm and 8mm, 1220x1440mm. Bamboo powder wood fibre and recyclable PVC, waterproof and mildew proof interior panels.
See the specification
UV Marble Sheet
UV marble sheet in 2.5, 2.8 and 3mm, 1220x2440mm, PVC with CaCO3 and UV cured finish. Waterproof formaldehyde free marble and wood grain sheets for interiors.
See the specificationGuides That Cover This Product
Where It Has Been Installed
Request Outdoor WPC Wall Panels
Send the finished size, the quantity, the mounting and the destination market. A quotation and the full specification come back by email.
